MX093-4S
4-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

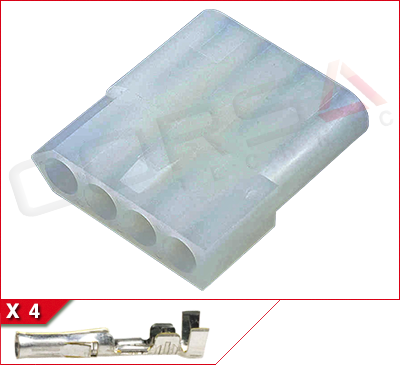

Kit Contents:
Housing, 4 socket contacts
Documents
3D STEP (0003091042.zip)
Drawing (14900000-SD_A1.pdf)Specifications
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:2.36mm dia. (.093)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:9A
- Voltage Rating:600V
Environmental
- Temp Range[2]:-40 - 105 °C
- Flammability Rating:UL94 V-2
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
