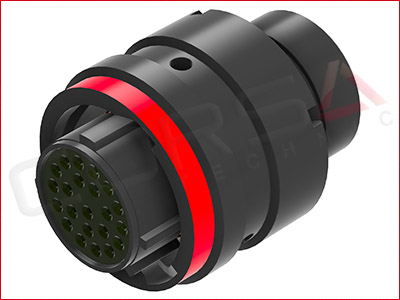

AS612-35SN
AS 22 Position Plug, Keying N = Red
Images shown may represent a range of products or be for illustration purposes only.
Kit Contents:
Complete with crimp contacts and insertion/extraction tool
Mfr:Deutsch
Series:AS Series
OEM P/N:AS612-35SN
Part Name:PLUG BOOT TERMINN TYPE 6
Keying:N = Red
Mating Part:AS012-35PN, AS112-35PN, AS212-35PN
Documents
3D STEP (AS612-35SN.zip)
Drawing (D603595E_C.pdf)
Rearview Pinout (AS612-35SN.png)Specifications
General
- Sealing:Matte Sealed
- Number of Ways:22
- Contact Size:Size 22D
- Wire Size:0.08 - 0.35 mm2
- Number of Rows:N/A
- Pitch:N/A, Circular
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Closed barrel crimp
- Lance Type:Housing Lance
- Housing Material:Aluminum alloy
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
Electrical
- Current Rating[1]:5A
Environmental
- Temp Range[2]:-55 - 175 °C
- Protection Rating:IP67
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Application List
- AiM EVO5, EVO6 logger
- AiM MX 1.3 series dash loggers
- AiM SmartyCam 3 Dual
- Life Racing GDI Driver8 (conn. 2)
- Motec D175 display
Cross Reference List
- AiM 5CN822F00
- Motec #65048
