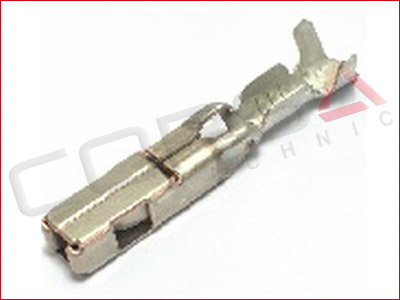

SICMA15P-SKTSicma3+ Clean Body 1.5 Series Socket Contact
Images shown may represent a range of products or be for illustration purposes only.
| Wire Size | Plating | Part Number (Aptiv p/n) | |
|---|---|---|---|
| - | .22 mm2 (24 AWG) | Tin | 211CC2S0160P (13625048) |
| - | Gold | 211CC2S0460P | |
| SICMA15P-SKT1 | .35-.70 mm2 (22-20 AWG) | Tin | 211CC2S1160P (10863984) |
| - | Gold | 211CC2S1460P (13764604) | |
| SICMA15-SKT2 | .75-1.30 mm2 (18-16 AWG) | Tin | 211CC2S4160P (10865182) |
| - | Gold | 211CC2S4460P (33500701) | |
| SICMA15-SKT3 | 1.35-2.0 mm2 (14 AWG) | Tin | 211CC2S2160P (10863985) |
| - | Gold | 211CC2S2460P (13764602) | |
| Available stock: Aftermarket OEM | |||
Documents
Drawing (10857567_02.pdf)Specifications
General
- Sealing:Mixed
- Contact Size:1.5mm (.060)
- Wire Size:0.22 - 2.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:26A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Cross Reference List
- Lear 3202521B5 (SKT1), 3202536R3 (SKT2), 3202521C3 (SKT3)
- Sumitomo 1400-4883 (SKT1), 1400-5441 (SKT2), 1400-4884 (SKT3)
- Volvo 25371115 (SKT1)
- Yazaki 7116-6955-02 (SKT1), 7116-6957-02 (SKT2), 7116-6958-02 (SKT3)
