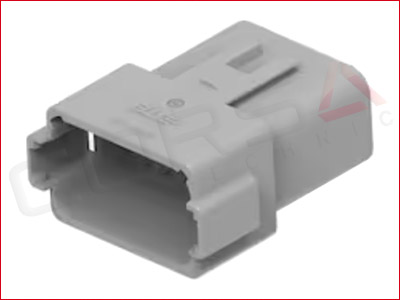

DT-12P BLK.N.B12-Way Receptacle
Images shown may represent a range of products or be for illustration purposes only.
| Key | Color | Seal | Cap | Part Number |
|---|---|---|---|---|
| A | Grey | N-Seal (Std) | - | DT06-12PA, -P004 |
| Grey | N-Seal (Std) | Short | DT06-12PA-E003, -EP04 | |
| Grey | N-Seal (Std) | Long | DT06-12PA-E008 | |
| Grey | E-Seal | - | DT06-12PA-C015 | |
| Grey | E-Seal | Short | DT06-12PA-CE01 | |
| Grey | E-Seal | Long | DT06-12PA-CE04 | |
| Black | N-Seal (Std) | - | DT06-12PA-E004 | |
| Black | N-Seal (Std) | Short | DT06-12PA-E005 | |
| Black | N-Seal (Std) | Long | n/a | |
| Black | E-Seal | - | DT06-12PA-CE02 | |
| Black | E-Seal | Short | DT06-12PA-CE03 | |
| Black | E-Seal | Long | DT06-12PA-CE09 | |
| B | Black | N-Seal (Std) | - | DT06-12PB, -P004 |
| Black | N-Seal (Std) | Short | DT06-12PB-E003, -EP04 | |
| Black | N-Seal (Std) | Long | n/a | |
| Black | E-Seal | - | DT06-12PB-C015 | |
| Black | E-Seal | Short | DT06-12PB-CE01 | |
| Black | E-Seal | Long | DT06-12PB-CE04 | |
| Availability: In-Stock | ||||
Documents
-
Drawing (C-DT04-12PX-XXXX_B1.pdf) -
Rearview Pinout (DT-12P-x.png) -
Tech Manual (114-151009_C2.pdf)
-
Product Specs (108-151009_D2.pdf)
- See related terminal for crimp specs
Rearview Pinout (DT-12P-x.png)Specifications
General
- Sealing:Matte Sealed
- Number of Ways:12
- Contact Size:Size 16
- Wire Size:0.50 - 2.50 mm2
- Number of Rows:2
- Pitch:4.4mm
- Row Spacing:9.1mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, circular
- Termination:Multi-option
- Lance Type:Housing Lance
- Housing Material:PA66+GF
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:13A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-55 - 125 °C
- Protection Rating:IP68, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
