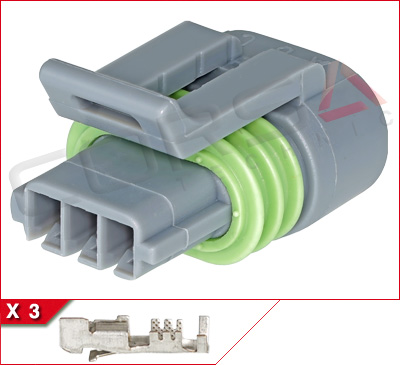

MP150.2-3S-2B
3-Way Kit
Images shown may represent a range of products or be for illustration purposes only.
Kit Contents:
Housing, 3 socket contacts
Specifications
General
- Sealing:Matte Sealed
- Number of Ways:3
- Contact Size:1.5mm (.060)
- Wire Size:0.35 - 1.00 mm2
- Number of Rows:1
- Pitch:3.5mm
- Numbered Cavities:Yes, Alphabetically
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Housing Material:PA66
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:14A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
