JAE

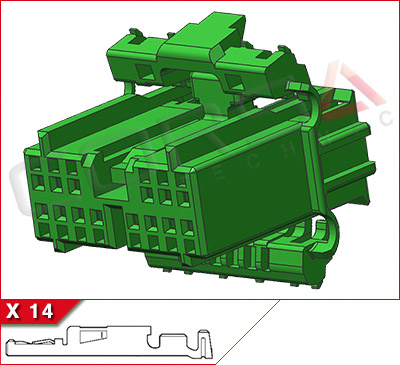

14-Way Kit
ILAG5-14S
14-Way Kit
OEM P/N: IL-AG5-14S-D3C1-A
ILAG5-14S  14-Way Kit
Kit Contents: Housing, 14x socket contacts

Mfr: OEM JAE
Series: IL-AG5 Series
OEM P/N: IL-AG5-14S-D3C1-A
Mating Part: N/A
For .3-.85 mm2 (22-18 AWG) wire, with 1.4-2.4mm (.055-.094") insulation dia.

spacer
General
  • Sealing:Unsealed
  • Number of Ways:14
  • Contact Size:0.64mm (.025)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$2.86
6-19$2.72
20-49$2.57
50-99$2.43
100+$2.29
Quantity:  Kit

IL-AG5 Series Pin Contact
ILAG5-PIN
IL-AG5 Series Pin Contact
OEM P/N: IL-AG5-PC1-5000
ILAG5-PIN  IL-AG5 Series Pin Contact

Mfr: OEM JAE
Series: IL-AG5 Series, and used in IL-AG9 Series
OEM P/N: IL-AG5-PC1-5000
For .3-.85 mm2 (22-18 AWG) wire, with 1.4-2.4mm (.055-.094") insulation dia.

spacer
General
  • Sealing:Unsealed
  • Contact Size:0.64mm (.025)
  • Wire Size:0.30 - 0.85 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.15
50-99$0.14
100-249$0.14
250-499$0.12
500+$0.10
Quantity:  Ea

IL-AG5 Series Socket Contact
ILAG5-SKT
IL-AG5 Series Socket Contact
OEM P/N: IL-AG5-C1-5000
ILAG5-SKT  IL-AG5 Series Socket Contact

Mfr: OEM JAE
Series: IL-AG5 Series, and used in IL-AG9 Series
OEM P/N: IL-AG5-C1-5000
For .3-.85 mm2 (22-18 AWG) wire, with 1.4-2.4mm (.055-.094") insulation dia.

spacer
General
  • Sealing:Unsealed
  • Contact Size:0.64mm (.025)
  • Wire Size:0.30 - 0.85 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Delphi/Aptiv 15324434
  • KUM MT395-03850
QtyPrice
1-49$0.11
50-99$0.10
100-249$0.09
250-499$0.08
500+$0.07
Quantity:  Ea

2-Way Kit
ILAG9-2S
2-Way Kit
OEM P/N: IL-AG9-2S-S3C1
ILAG9-2S  2-Way Kit
Kit Contents: Housing, 2x socket contacts

Mfr: OEM JAE
Series: IL-AG9 Series
OEM P/N: IL-AG9-2S-S3C1
Mating Part: IL-AG9-2P-S3C1
For .3-.85 mm2 (22-18 AWG) wire, with 1.4-2.4mm (.055-.094") insulation dia.

spacer
General
  • Sealing:Unsealed
  • Number of Ways:2
  • Contact Size:0.64mm (.025)
  • Wire Size:0.30 - 0.85 mm2
  • Number of Rows:1
  • Pitch:2.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$0.77
6-19$0.73
20-49$0.69
50-99$0.65
100+$0.62
Quantity:  Kit

12-Way ECU PCB Header
MX23A-12P
12-Way ECU PCB Header
OEM P/N: MX23A12NF1
MX23A-12P  12-Way ECU PCB Header
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A12NF1
Mating Part: MX23A-12S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:12
  • Contact Size:1.0mm (.040)
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:PCB solder tail
  • Housing Material:PBT+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:7A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

1x - in stock.
Price: $7.17
Quantity:  Ea

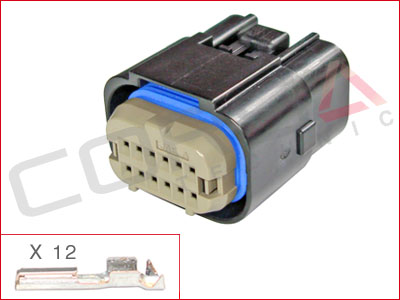

12-Way Kit
MX23A-12S
12-Way Kit
OEM P/N: MX23A12SF1
MX23A-12S  12-Way Kit
Kit Contents: Housing, 12 socket contacts, front lock

Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A12SF1
Mating Part: MX23A-12P

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:12
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Price: $9.10
Quantity:  Kit

18-Way ECU PCB Header
MX23A-18P
18-Way ECU PCB Header
OEM P/N: MX23A18NF1
MX23A-18P  18-Way ECU PCB Header
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A18NF1
Mating Part: MX23A-18S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:18
  • Contact Size:1.0mm (.040)
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:PCB solder tail
  • Housing Material:PBT+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:7A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Various KTM, Suzuki motorcycle ECU's
Price: $8.43
Quantity:  Ea

18-Way Kit
MX23A-18S
18-Way Kit
OEM P/N: MX23A18SF1
MX23A-18S  18-Way Kit
Kit Contents: Housing, 18 socket contacts, front lock

Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A18SF1
Mating Part: MX23A-18P

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:18
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Various Suzuki motorcycle ECU's
spacer
  • Honda 070MZ-MCAA300
  • KTM 000700000BU
Price: $9.52
Quantity:  Kit

26-Way ECU PCB Header
MX23A-26P
26-Way ECU PCB Header
OEM P/N: MX23A26NF1
MX23A-26P  26-Way ECU PCB Header
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A26NF1
Mating Part: MX23A-26S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:26
  • Contact Size:1.0mm (.040)
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:PCB solder tail
  • Housing Material:PBT+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:7A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Various Suzuki motorcycle ECU's
QtyPrice
1-24$10.54
25+$10.01
Quantity:  Ea

26-Way Kit
MX23A-26S
26-Way Kit
OEM P/N: MX23A26SF1
MX23A-26S  26-Way Kit
Kit Contents: Housing, 26 socket contacts, front lock

Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A26SF1
Mating Part: MX23A-26P

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:26
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Various KTM, Suzuki motorcycle ECU's
spacer
  • KTM 000700000EV
QtyPrice
1-24$12.70
25+$12.06
Quantity:  Kit

34-Way ECU PCB Header
MX23A-34P-1
34-Way ECU PCB Header
OEM P/N: MX23A34NF1
MX23A-34P-1  34-Way ECU PCB Header
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A34NF1
Mating Part: MX23A-34S-1

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:34
  • Contact Size:1.0mm (.040)
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:PCB solder tail
  • Housing Material:PBT+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:7A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Various Suzuki motorcycle ECU's
  • YZF-R1 2009-2011 ECU's
  • ZX10R 2008-2010 ECU's
Price: $9.17
Quantity:  Ea

34-Way ECU PCB Header (Alternate Keying, Grey)
MX23A-34P-2
34-Way ECU PCB Header (Alternate Keying, Grey)
OEM P/N: MX23A34NF6
MX23A-34P-2  34-Way ECU PCB Header (Alternate Keying, Grey)
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A34NF6
Mating Part: MX23A-34S-2

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:34
  • Contact Size:1.0mm (.040)
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:PCB solder tail
  • Housing Material:PBT+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:7A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Various Suzuki motorcycle ECU's (Grey connector)
  • ZX10R 2008-2010 ECU's
Price: $9.28
Quantity:  Ea

34-Way Kit
MX23A-34S-1
34-Way Kit
OEM P/N: MX23A34SF1
MX23A-34S-1  34-Way Kit
Kit Contents: Housing, 34 socket contacts, front lock

Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A34SF1
Mating Part: MX23A-34P-1

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:34
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Various Suzuki motorcycle ECU's
  • YZF-R1 2009-2011 ECU's
  • ZX10R 2008-2010 ECU's
QtyPrice
1-49$14.19
50+$13.48
Quantity:  Kit

34-Way Kit (Alternate Keying, Grey)
MX23A-34S-2
34-Way Kit (Alternate Keying, Grey)
OEM P/N: MX23A34SF2
MX23A-34S-2  34-Way Kit (Alternate Keying, Grey)
Kit Contents: Housing, 34 socket contacts, front lock

Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A34SF2
Mating Part: MX23A-34P-2

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:34
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:2
  • Pitch:2.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Various Suzuki motorcycle ECU's (Grey connector)
  • ZX10R 2008-2010 ECU's
Price: $15.49
Quantity:  Kit

36-Way Kit
MX23A-36S-1
36-Way Kit
OEM P/N: MX23A36SF1
MX23A-36S-1  36-Way Kit
Kit Contents: Housing, 36 socket contacts, front lock

Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A36SF1
Mating Part: MX23A36NF1

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:36
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:3
  • Pitch:2.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Suzuki motorcycle ECU's on GSXR 1000 K7 and up, GSXR 600, 750 K8 and up
Price: $29.89
Quantity:  Kit

36-Way Kit (Alternate Keying, Grey)
MX23A-36S-2
36-Way Kit (Alternate Keying, Grey)
OEM P/N: MX23A36SF2
MX23A-36S-2  36-Way Kit (Alternate Keying, Grey)
Kit Contents: Housing, 36 socket contacts, front lock

Mfr: OEM JAE
Series: MX23A Series
OEM P/N: MX23A36SF2
Mating Part: MX23A36NF6

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:36
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:3
  • Pitch:2.5mm
  • Row Spacing:4.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:7A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Suzuki motorcycle ECU's on GSXR 1000 K7 and up, GSXR 600, 750 K8 and up (Grey connector)
This item is backordered.
Price: $25.94
Quantity:  Kit

MX23A Series Socket Contact
MX23A-SKT
MX23A Series Socket Contact
OEM P/N: M23S05K351
MX23A-SKT  MX23A Series Socket Contact

Mfr: OEM JAE
Series: MX23A Series
OEM P/N: M23S05K351
For .3-1.25 mm2 (22-16 AWG) wire

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:7A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Honda 070MZ-MCAA200
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000+$0.13
Quantity:  Ea

MX23A, MX47 Series Seal Plug
MX23A/47-PG
MX23A, MX47 Series Seal Plug
OEM P/N: M120-55780
MX23A/47-PG  MX23A, MX47 Series Seal Plug

Mfr: OEM JAE
Series: MX23A, MX47
OEM P/N: M120-55780
Insert in unused positions of receptacle connector
NOTE: The MX23A and MX47 series use the same plug.

spacer
General
  • Sealing:Matte Sealed
Mechanical
Environmental
  • Temp Range[2]:-40 - 125 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.17
500-999$0.16
1000+$0.15
Quantity:  Ea

12-Way Kit
MX34-12S
12-Way Kit
OEM P/N: MX34012SF1
MX34-12S  12-Way Kit
Kit Contents: Housing, 12 socket contacts

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34012SF1
Mating Part: MX34012PF1, MX34012NF1, MX34012NF3, MX34012UF1, MX34012UF3

spacer
General
  • Sealing:Unsealed
  • Number of Ways:12
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PPE+PA66
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$2.70
6-19$2.51
20-49$2.29
50-99$2.16
100+$1.89
Quantity:  Kit

16-Way PCB Header - Angled Pin
MX34-16P-A
16-Way PCB Header - Angled Pin
OEM P/N: MX34016NF1
MX34-16P-A  16-Way PCB Header - Angled Pin
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016NF1
Mating Part: MX34-16S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:16
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • GSXR-1000 '07-'08 dash
  • GSXR-1300R K8 dash
  • Kawasaki Z1000 '07-'09 dash
QtyPrice
1-5$2.83
6-19$2.63
20-49$2.41
50-99$2.26
100+$1.98
Quantity:  Ea

16-Way PCB Header - Straight Pin
MX34-16P-S
16-Way PCB Header - Straight Pin
OEM P/N: MX34016UF1
MX34-16P-S  16-Way PCB Header - Straight Pin
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016UF1
Mating Part: MX34-16S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:16
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • GSXR-1000 '07-'08 dash
  • GSXR-1300R K8 dash
  • Kawasaki Z1000 '07-'09 dash
QtyPrice
1-5$3.18
6-19$2.96
20-49$2.70
50-99$2.54
100+$2.23
Quantity:  Ea

16-Way Kit
MX34-16S
16-Way Kit
OEM P/N: MX34016SF1
MX34-16S  16-Way Kit
Kit Contents: Housing, 16 socket contacts

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34016SF1
Mating Part: MX34-16P-A, MX34-16P-S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:16
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PPE+PA66
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Kawasaki Z1000 '07-'09 dash
  • GSXR-1300R K8 dash
  • GSXR-1000 '07-'08 dash
QtyPrice
1-5$2.65
6-19$2.46
20-49$2.25
50-99$2.12
100+$1.85
Quantity:  Kit

20-Way PCB Header - Straight Pin
MX34-20P-S
20-Way PCB Header - Straight Pin
OEM P/N: MX34020UF1
MX34-20P-S  20-Way PCB Header - Straight Pin
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34020UF1
Mating Part: MX34-20S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:SPS+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$3.26
6-19$3.03
20-49$2.77
50-99$2.61
100+$2.28
Quantity:  Ea

20-Way Kit
MX34-20S
20-Way Kit
OEM P/N: MX34020SF1
MX34-20S  20-Way Kit
Kit Contents: Housing, 20 socket contacts

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34020SF1
Mating Part: MX34-20P-S

spacer
General
  • Sealing:Unsealed
  • Number of Ways:20
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PPE+PA66
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$3.81
6-19$3.54
20-49$3.24
50-99$3.05
100+$2.67
Quantity:  Kit

28-Way Kit
MX34-28S
28-Way Kit
OEM P/N: MX34028SF1
MX34-28S  28-Way Kit
Kit Contents: Housing, 28 socket contacts

Mfr: OEM JAE
Series: MX34 Series
OEM P/N: MX34028SF1
Mating Part: MX34028NF2, MX34028NF3, MX34028UF2, MX34028UF3

spacer
General
  • Sealing:Unsealed
  • Number of Ways:28
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
  • Number of Rows:2
  • Pitch:2.2mm
  • Row Spacing:3.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PPE+PA66
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-5$4.11
6-19$3.82
20-49$3.49
50-99$3.29
100+$2.88
Quantity:  Kit

MX34 Series Socket Contact
MX34-SKT
MX34 Series Socket Contact
MX34-SKT  MX34 Series Socket Contact

Mfr: JAE
Series: MX34 Series

Wire SizeP/N
-CHFUS 0.13 mm2 (24 AWG)M34S75C4F5
-.3 mm2 (22 AWG)M34S75C4F1
MX34-SKT.5 mm2 (20 AWG)M34S75C4F2
-CAN SD 0.35 mm2 (Note)M34S75C4F3
-0.85 mm2 (18 AWG)(Note)M34S75C4F4
Available stock: Aftermarket OEM
Note: M34S75C4F3 and M34S75C4F4 can only be inserted in double row cavities on both sides, four cavities in total.

spacer
General
  • Sealing:Unsealed
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.85 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.10
50-99$0.09
100-249$0.08
250-499$0.07
500+$0.06
Quantity:  Ea

39-way ECU PCB Header
MX47-39P-1
39-way ECU PCB Header
OEM P/N: MX47039NF1
MX47-39P-1  39-way ECU PCB Header
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX47 Series
OEM P/N: MX47039NF1
Mating Part: MX47-39S-1

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:39
  • Contact Size:1.0mm (.040)
  • Number of Rows:3
  • Pitch:2.5mm
  • Row Spacing:3.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:PCB solder tail
  • Housing Material:PBT+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Price: $13.25
Quantity:  Ea

39-way ECU PCB Header
MX47-39P-2
39-way ECU PCB Header
OEM P/N: MX47039NF2
MX47-39P-2  39-way ECU PCB Header
Kit Contents: PCB header

Mfr: OEM JAE
Series: MX47 Series
OEM P/N: MX47039NF2
Mating Part: MX47-39S-2

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:39
  • Contact Size:1.0mm (.040)
  • Number of Rows:3
  • Pitch:2.5mm
  • Row Spacing:3.6mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:PCB solder tail
  • Housing Material:PBT+GF
  • Mounting Style:PCB Board Mount
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Price: $24.97
Quantity:  Ea

39-way Kit
MX47-39S-1
39-way Kit
OEM P/N: MX47039SF1
MX47-39S-1  39-way Kit
Kit Contents: Housing, 39 socket contacts, front lock

Mfr: OEM JAE
Series: MX47 Series
OEM P/N: MX47039SF1
Mating Part: MX47-39P-1

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:39
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:3
  • Pitch:2.5mm
  • Row Spacing:3.6mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Price: $33.81
Quantity:  Kit

39-way Kit
MX47-39S-2
39-way Kit
OEM P/N: MX47039SF2
MX47-39S-2  39-way Kit
Kit Contents: Housing, 39 socket contacts, front lock

Mfr: OEM JAE
Series: MX47 Series
OEM P/N: MX47039SF2
Mating Part: MX47-39P-2

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:39
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:3
  • Pitch:2.5mm
  • Row Spacing:3.6mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Price: $33.81
Quantity:  Kit

MX47 Series Socket Contact
MX47-SKT
MX47 Series Socket Contact
MX47-SKT  MX47 Series Socket Contact

Mfr: JAE
Series: MX47 Series

Wire SizeP/N
MX47-SKT1.3-.5 mm2 (22-20 AWG)M47S65H4FA
MX47-SKT2.75-.85 mm2 (18 AWG)M47S65H3FA
MX47-SKT31.25 mm2 (16 AWG)M47S65H2FA
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.30
50-99$0.29
100-249$0.28
250-499$0.27
500-999$0.26
1000+$0.25
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
