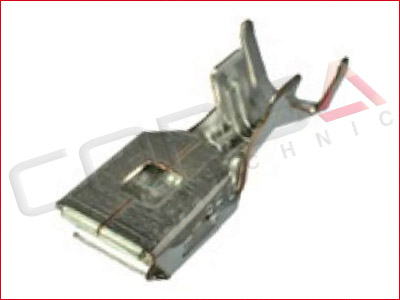

APEX.63SWS-SKT
APEX 6.3 Single Wire Sealing Socket Contact
Images shown may represent a range of products or be for illustration purposes only.
| Wire Size | Plating | Part Number (Aptiv p/n) | |
|---|---|---|---|
| APEX.63SWS-SKT1 | .75-1.5 mm2 (18-16 AWG) | Tin | 54001623 (13673119) |
| - | Tin/Silver | F185900 (15509071) | |
| APEX.63SWS-SKT2 | 2-3 mm2 (14-12 AWG) | Tin | 54001200/54001224 (13658862) |
| - | Tin/Silver | F285900 (15509072) | |
| APEX.63SWS-SKT3 | 4-6 mm2 (10 AWG) | Tin | 54001004/54001023 (10863886) |
| - | Tin/Silver | F385900 (13874918) | |
| Available stock: Aftermarket OEM | |||
Documents
Drawing (13707625_56.pdf)Specifications
General
- Sealing:Single Wire Sealed
- Contact Size:6.3mm (.250)
- Wire Size:0.75 - 6.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:55A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Cross Reference List
- Ford 1L5T-14474-AA (SKT2)
