MP630.SPL-SKT

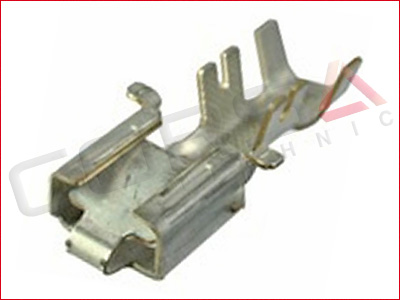

Metri-Pack 630 Unsealed Socket Contact - Special type for relay
Images shown may represent a range of products or be for illustration purposes only.
| Wire Size | P/N | |
|---|---|---|
| MP630.SPL-SKT1 | .5-.8 mm2 (20-18 AWG) | 12015864 |
| MP630.SPL-SKT2 | 1.0-2.0 mm2 (16-14 AWG) | 12015865 |
| MP630.SPL-SKT3 | 3.0-5.0 mm2 (12-10 AWG) | 12084588 |
| Available stock: Aftermarket OEM | ||
Documents
Drawing, SKT1 (12015864.pdf)Specifications
General
- Sealing:Unsealed
- Contact Size:6.3mm (.250)
- Wire Size:0.50 - 5.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:46A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
