Products

	CLIP-100 Furukawa Connector Clamp Mfg: OEM Furukawa Series: QLW, RFW OEM P/N: TCL-5A-B For 7mm dia. hole with 0.8-1.6mm thickness
		QtyPrice 1-5$0.73 6-19$0.69 20-49$0.66 50-99$0.62 100+$0.58 Quantity: Ea

	CLIP-101 Furukawa Connector Clamp Mfg: OEM Furukawa Series: QLW, RFW OEM P/N: TCL-16-L For 7mm dia. hole with 0.8-2.6mm thickness
		QtyPrice 1-5$0.73 6-19$0.69 20-49$0.66 50-99$0.62 100+$0.58 Quantity: Ea

	FSW-6P-ECU 6-Way ECU PCB Header Kit Contents: PCB Header Mfg: OEM Furukawa Series: FSW Series OEM P/N: FP-C-SW6M-B (FT0363) Mating Part: FSW-C-6F Straight pins out back side
		QtyPrice 1-5$5.83 6-19$5.54 20-49$5.25 50-99$4.96 100+$4.66 Quantity: Kit

	HU-3S 3-Way Kit Kit Contents: Housing, 3 socket contacts, 3 seals Mfg: Aftermarket Furukawa Series: HU Series OEM P/N: PK605-03027 Part Name: HU03F-B SA'Y Mating Part: PK601-03027 KTM 000700000DX
		QtyPrice 1-5$3.76 6-19$3.50 20-49$3.20 50-99$3.01 100+$2.63 Quantity: Kit

	HU-4S 4-Way Kit Kit Contents: Housing, 4 socket contacts, 4 seals Mfg: Aftermarket Furukawa Series: HU Series OEM P/N: PK605-04027 Part Name: HU04F-B SA'Y Mating Part: PK601-04027
		QtyPrice 1-5$4.55 6-19$4.23 20-49$3.87 50-99$3.64 100+$3.18 Quantity: Kit

	HU-5S 5-Way Kit Kit Contents: Housing, 5 socket contacts, 5 seals Mfg: Aftermarket Furukawa Series: HU Series OEM P/N: PK605-05027 Part Name: HU05F-B SA'Y Mating Part: PK601-05027
		QtyPrice 1-5$4.95 6-19$4.60 20-49$4.21 50-99$3.96 100+$3.46 Quantity: Kit

	HU-SKT HU Series Socket Contact Mfg: Aftermarket Furukawa Series: HU Series OEM P/N: MT095-65090 Part Name: HUF-0.3 For 0.3-0.5 mm² (22-20 AWG) wire
		QtyPrice 1-49$0.17 50-99$0.16 100-249$0.15 250-499$0.14 500+$0.12 Quantity: Ea

	HU-SL HU Series Seal Mfg: Aftermarket Furukawa Series: HU Series OEM P/N: RS040-01000 Part Name: W/S HU-OR-1.1S
		QtyPrice 1-49$0.12 50-99$0.11 100-249$0.11 250-499$0.10 500+$0.08 Quantity: Ea

NMWP-PIN NMWP Series Pin Contact

Mfg: Furukawa
Series: NMWP Series

	Wire Size	Plating	P/N
NMWP-PIN1	0.3-0.5 mm² (22-20 AWG)	Tin	MT091-63080 NMWPM-0.3
-	0.3-0.5 mm² (22-20 AWG)	Gold	MT091-63060 NMWPM-0.3-AU
NMWP-PIN2	0.85-2.0 mm² (18-14 AWG)	Tin	MT091-63280 NMWPM-S
-	0.85-2.0 mm² (18-14 AWG)	Gold	MT091-63260 NMWPM-S-AU
Available stock: Aftermarket OEM

Cross-compatible to Yazaki 7114-1694, 7114-1695

NMWP-SKT NMWP Series Socket Contact

Mfg: Furukawa
Series: NMWP Series

	Wire Size	Plating	P/N
NMWP-SKT1	0.3-0.5 mm² (22-20 AWG)	Tin	MT095-63080 NMWPF-0.3
-	0.3-0.5 mm² (22-20 AWG)	Gold	MT095-63060 NMWPF-0.3-AU
NMWP-SKT2	0.85 mm² (18 AWG)	Tin	-
NMWP-SKT3	0.85-2.0 mm² (18-14 AWG)	Tin	MT095-63280 NMWPF-S
-	0.85-2.0 mm² (18-14 AWG)	Gold	MT095-63260 NMWPF-S-AU
Available stock: Aftermarket OEM

Cross-compatible to Yazaki 7116-1694, 7116-1695

NMWP-SL NMWP Series Seal

Mfg: Furukawa
Series: NMWP Series

	Wire Insulation Dia.	Color	Part Number
NMWP-SL1	1.4-1.9 mm (.055-.075 in)	Yellow/Green	RS220-01100
NMWP-SL2	2.0-2.4 mm (.079-.094 in)	Brown	RS220-04100
NMWP-SL3	2.4-2.6 mm (.094-.102 in)	Blue	RS220-02100
NMWP-SL4	2.6-3.4 mm (.102-.134 in)	Violet	RS220-03100
Available stock: Aftermarket OEM

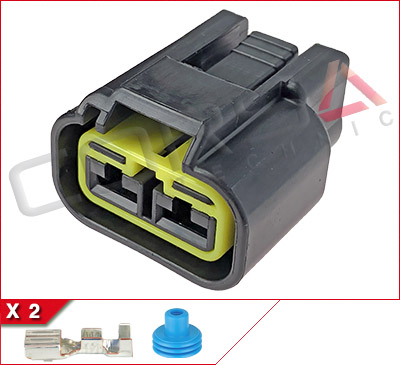

	QLW-2S 2-Way Kit Kit Contents: Housing, 2 socket contacts, 2 seals Mfg: OEM Furukawa Series: QLW Series OEM P/N: QLW-A-2F-B (alt p/n: Q010555, 13412-3102-2, H5093) Mating Part: QLW-A-2M-B
		QtyPrice 1-5$6.68 6-19$6.35 20-49$6.01 50-99$5.68 100+$5.34 Socket/Wire Size Insulation/Seal size Quantity: Kit

	QLW-3S-1 3-Way Kit Kit Contents: Housing, 3 socket contacts, 3 seals Mfg: OEM Furukawa Series: QLW Series OEM P/N: QLW-A-B3F-B (alt p/n: Q011789, 13412-3203-2, FT0056) Mating Part: N/A Various regulator, rectifier
		QtyPrice 1-5$7.95 6-19$7.55 20-49$7.16 50-99$6.76 100-249$6.36 250-499$5.96 500-999$5.57 1000+$5.17 Socket/Wire Size Insulation/Seal size Quantity: Kit

	QLW-3S-2 3-Way Kit Kit Contents: Housing, 3 socket contacts, 3 seals Mfg: OEM Furukawa Series: QLW Series OEM P/N: QLW-A-3F-GR (alt p/n: Q011781) Mating Part: N/A Various regulator, rectifier
		QtyPrice 1-5$7.95 6-19$7.55 20-49$7.16 50-99$6.76 100-249$6.36 250-499$5.96 500-999$5.57 1000+$5.17 Socket/Wire Size Insulation/Seal size Quantity: Kit

	QLW-PG QLW Series Seal Plug Mfg: OEM Furukawa Series: QLW Series OEM P/N: QLW-W-D (alt p/n: R010113)
		QtyPrice 1-49$0.29 50-99$0.28 100-249$0.26 250-499$0.25 500-999$0.23 1000-2499$0.22 2500-4999$0.20 5000-9999$0.19 10000-14999$0.17 15000-19999$0.16 20000+$0.14 Quantity: Ea

QLW-PIN QLW Series Pin Contact

Mfg: Furukawa
Series: QLW Series

	Wire Size	P/N
QLW-PIN1	2.0-3.0 mm² (14-12 AWG)	QLW-M-300 (alt p/n: R010108)
QLW-PIN2	5.0-8.0 mm² (10-8 AWG)	QLW-M-800 (alt p/n: R010109)
Available stock: Aftermarket OEM

QLW-SKT QLW Series Socket Contact

Mfg: Furukawa
Series: QLW Series

	Wire Size	P/N
QLW-SKT1	2.0-3.0 mm² (14-12 AWG)	QLW-F-300 (alt p/n: R010106)
QLW-SKT2	5.0-8.0 mm² (10-8 AWG)	QLW-F-800 (alt p/n: R010107)
Available stock: Aftermarket OEM

QLW-SL QLW Series Seal

Mfg: Furukawa
Series: QLW Series

	Wire Insulation Dia.	Color	Part Number	Alt. Info
QLW-SL1	2.6-2.7 mm (.102-.106 in)	Brown	QLW-W-200	alt p/n: R010110
QLW-SL2	2.9-3.8 mm (.114-.149 in)	Blue	QLW-W-300	alt p/n: R010111
QLW-SL3	4.4-5.7 mm (.173-.224 in)	Green	QLW-W-800	alt p/n: R010112
Available stock: Aftermarket OEM

	RFW-16P 16-Way Kit Kit Contents: Housing, 16 pin contacts, 16 seals, lock Mfg: Aftermarket Furukawa Series: RFW Series OEM P/N: FW-C-16M-B (alt p/n: P010645, 12445-5216-2) Mating Part: RFW-16S
		This item is backordered. QtyPrice 1-5$6.38 6-19$6.06 20-49$5.74 50-99$5.42 100-249$5.10 250-499$4.79 500+$4.47 Pin/Wire Size Insulation/Seal size Quantity: Kit

	RFW-16S 16-Way Kit Kit Contents: Housing, 16 socket contacts, 16 seals, lock Mfg: Aftermarket Furukawa Series: RFW Series OEM P/N: FW-C-16F-B (alt p/n: P010643, 12444-5216-2) Mating Part: RFW-16P
		QtyPrice 1-5$6.53 6-19$6.20 20-49$5.88 50-99$5.55 100-249$5.22 250-499$4.90 500+$4.57 Socket/Wire Size Insulation/Seal size Quantity: Kit

	RFW-1S 1-Way Kit Kit Contents: Housing, 1 socket contact, 1 seal Mfg: OEM Furukawa Series: RFW Series OEM P/N: FW-C-1F-B (alt p/n: P010463, 12444-5201-2) Mating Part: FW-C-1M-B (Not in stock)
		QtyPrice 1-5$2.52 6-19$2.39 20-49$2.27 50-99$2.14 100-499$2.02 500+$1.89 Socket/Wire Size Insulation/Seal size Quantity: Kit

	RFW-2P 2-Way Kit Kit Contents: Housing, 2 pin contacts, 2 seals, lock Mfg: Aftermarket Furukawa Series: RFW Series OEM P/N: FW-C-2M-B (alt p/n: P010703, 12445-5202-2) Mating Part: RFW-2S KTM 000700000FC
		QtyPrice 1-5$2.46 6-19$2.34 20-49$2.21 50-99$2.09 100-249$1.97 250-499$1.84 500-999$1.72 1000+$1.60 Pin/Wire Size Insulation/Seal size Quantity: Kit

	RFW-2S 2-Way Kit Kit Contents: Housing, 2 socket contacts, 2 seals, lock Mfg: Aftermarket Furukawa Series: RFW Series OEM P/N: FW-C-2F-B (alt p/n: P010693, 12444-5202-2) Mating Part: RFW-2P 2-pin COP pencil ignition coils KTM 000700000AS Ford 3U2Z-14S411-SMA, WPT-579 (Tin plated terminals) pigtail connector
		QtyPrice 1-5$2.88 6-19$2.74 20-49$2.59 50-99$2.45 100-249$2.30 250-499$2.16 500-999$2.02 1000+$1.87 Socket/Wire Size Insulation/Seal size Quantity: Kit

	RFW-2Seal Replacement seal for RFW-2S Mfg: Aftermarket Furukawa Series: RFW Series Replacement internal seal for RFW-2S
		QtyPrice 1-49$0.16 50-99$0.15 100-249$0.14 250-499$0.13 500+$0.11 Quantity: Ea

	RFW-3P-2 3-Way Kit Kit Contents: Housing, 3 pin contacts, 3 seals, lock Mfg: OEM Furukawa Series: RFW Series OEM P/N: FW-C-3M(2)-B (alt p/n: Q011060, 12445-5203-2) Mating Part: RFW-3S-2
		QtyPrice 1-5$4.23 6-19$4.02 20-49$3.81 50-99$3.60 100+$3.38 Pin/Wire Size Insulation/Seal size Quantity: Kit

	RFW-3S-2 3-Way Kit Kit Contents: Housing, 3 socket contacts, 3 seals, lock Mfg: OEM Furukawa Series: RFW Series OEM P/N: FW-C-3F(2)-B (alt p/n: Q011050, 12444-5203-2) Mating Part: RFW-3P-2
		QtyPrice 1-5$4.02 6-19$3.86 20-49$3.74 50-99$3.62 100+$3.42 Socket/Wire Size Insulation/Seal size Quantity: Kit

	RFW-3S-3 3-Way Kit Kit Contents: Housing, 3 socket contacts, 3 seals, lock Mfg: OEM Furukawa Series: RFW Series Mating Part: N/A P/N: Natural (White), FW-C-D3F (alt p/n: R010192, 12444-5A03) Black, FW-C-D3F-B (alt p/n: R010195, 12444-5A03-2) Subaru ignition coils
		QtyPrice 1-5$4.93 6-19$4.68 20-49$4.44 50-99$4.19 100+$3.94 Color Socket/Wire Size Insulation/Seal size Quantity: Kit

	RFW-3S-4 3-Way Kit Kit Contents: Housing, 3 socket contacts, 3 seals, lock Mfg: OEM Furukawa Series: RFW Series OEM P/N: FW-C-3F(3) Mating Part: N/A Ford 3U2Z-14S411-NA, WPT-196 (Tin plated terminals) pigtail connector
		QtyPrice 1-5$3.84 6-19$3.65 20-49$3.46 50-99$3.26 100+$3.07 Socket/Wire Size Insulation/Seal size Quantity: Kit

	RFW-4P 4-Way Kit Kit Contents: Housing, 4 pin contacts, 4 seals, lock Mfg: OEM Furukawa Series: RFW Series OEM P/N: FW-C-4M-B (alt p/n: N010354, 12445-5204-2) Mating Part: RFW-4S
		QtyPrice 1-5$4.57 6-19$4.34 20-49$4.11 50-99$3.88 100-249$3.66 250-499$3.43 500+$3.20 Pin/Wire Size Insulation/Seal size Quantity: Kit

	RFW-4S 4-Way Kit Kit Contents: Housing, 4 socket contacts, 4 seals, lock Mfg: Aftermarket Furukawa Series: RFW Series OEM P/N: FW-C-4F-B (alt p/n: N010333, 12444-5204-2) Mating Part: RFW-4P KTM 000700000AE (Black) Suzuki 09900-28710-020 (Black)
		QtyPrice 1-5$3.09 6-19$2.94 20-49$2.78 50-99$2.63 100-249$2.47 250-499$2.32 500+$2.16 Socket/Wire Size Insulation/Seal size Quantity: Kit

	RFW-6P 6-Way Kit Kit Contents: Housing, 6 pin contacts, 6 seals, lock Mfg: Aftermarket Furukawa Series: RFW Series Mating Part: RFW-6S P/N: Natural (White), FW-C-6M (alt p/n: 12445-5206) Black, FW-C-6M-B (alt p/n: P010497, 12445-5206-2)
		-41 Select color Black (pictured) Items left in stock. QtyPrice 1-5$3.74 6-19$3.55 20-49$3.37 50-99$3.18 100+$2.99 Select color Pin/Wire Size Insulation/Seal size Quantity: Kit

	RFW-6S 6-Way Kit Kit Contents: Housing, 6 socket contacts, 6 seals, lock Mfg: Aftermarket Furukawa Series: RFW Series Mating Part: RFW-6P P/N: Natural (White), FW-C-6F-B (alt p/n: 12444-5206) Black, FW-C-6F-B (alt p/n: P010487, 12444-5206-2) Suzuki 09900-28710-019 (Black)
		QtyPrice 1-5$3.32 6-19$3.15 20-49$2.99 50-99$2.82 100+$2.66 Select color Socket/Wire Size Insulation/Seal size Quantity: Kit

	RFW-8P 8-Way Kit Kit Contents: Housing, 8 pin contacts, 8 seals, lock Mfg: Aftermarket Furukawa Series: RFW Series OEM P/N: FW-C-8M-B (alt p/n: P010542, 12445-5208-2) Mating Part: RFW-8S
		QtyPrice 1-5$4.04 6-19$3.84 20-49$3.64 50-99$3.43 100-249$3.23 250-499$3.03 500-999$2.83 1000+$2.63 Pin/Wire Size Insulation/Seal size Quantity: Kit

	RFW-8S 8-Way Kit Kit Contents: Housing, 8 socket contacts, 8 seals, lock Mfg: Aftermarket Furukawa Series: RFW Series OEM P/N: FW-C-8F-B (alt p/n: P010535, 12444-5208-2) Mating Part: RFW-8P ECU program connector (harness side) on Kawasaki ZX-12, ZX-14, Hayabusa KTM 000700000CF Suzuki 09900-28710-018 (Black)
		QtyPrice 1-5$4.29 6-19$4.08 20-49$3.86 50-99$3.65 100-249$3.43 250-499$3.22 500+$3.00 Socket/Wire Size Insulation/Seal size Quantity: Kit

	RFW-9P 9-Way Kit Kit Contents: Housing, 9 pin contacts, 9 seals, lock Mfg: Aftermarket Furukawa Series: RFW Series OEM P/N: FW-C-9M-B (alt p/n: P010671, 12445-5209-2) Mating Part: RFW-9S 06-09 YZF-R6 primary injector harness (main harness side)
		QtyPrice 1-5$4.94 6-19$4.69 20-49$4.45 50-99$4.20 100-249$3.95 250-499$3.71 500+$3.46 Pin/Wire Size Insulation/Seal size Quantity: Kit

	RFW-9S 9-Way Kit Kit Contents: Housing, 9 socket contacts, 9 seals, lock Mfg: Aftermarket Furukawa Series: RFW Series OEM P/N: FW-C-9F-B (alt p/n: P010668, 12444-5209-2) Mating Part: RFW-9P 06-09 YZF-R6 primary injector harness (sub-harness side)
		QtyPrice 1-5$4.94 6-19$4.69 20-49$4.45 50-99$4.20 100-249$3.95 250-499$3.71 500+$3.46 Socket/Wire Size Insulation/Seal size Quantity: Kit

	RFW-PG RFW Series Seal Plug Mfg: OEM Furukawa Series: RFW Sealed Series OEM P/N: RFW-W-D1 (alt p/n: X020016, X020016000-M00)
		QtyPrice 1-49$0.15 50-99$0.14 100-249$0.13 250-499$0.12 500-999$0.11 1000-2499$0.10 2500-4999$0.09 5000+$0.08 Quantity: Ea

RFW-PIN RFW Series Pin Contact

Mfg: Furukawa
Series: RFW Sealed Series

	Wire Size	P/N
RFW-PIN1	.3-.5 mm² (22-20 AWG)	RFW-M-050 (alt p/n: X010311)
RFW-PIN2	.5-1.25 mm² (20-16 AWG)	RFW-M-125 (alt p/n: X010313)
RFW-PIN3	2.0 mm² (14 AWG)	RFW-M-200 (alt p/n: X010314)
Available stock: Aftermarket OEM

Suzuki 09900-28710-015 (Terminal from refill kit)

RFW-SKT RFW Series Socket Contact

Mfg: Furukawa
Series: RFW Sealed Series

	Wire Size	P/N
RFW-SKT1	.3-.5 mm² (22-20 AWG)	RFW-F-050 (alt p/n: X010305)
RFW-SKT2	.5-1.25 mm² (20-16 AWG)	RFW-F-125 (alt p/n: X010306)
RFW-SKT3	2.0 mm² (14 AWG)	RFW-F-200 (alt p/n: X010307)
Available stock: Aftermarket OEM

Suzuki 09900-28710-016 (Terminal from refill kit)

RFW-SL3 RFW Series Seals

Mfg: Furukawa
Series: RFW Sealed Series

NOTE: CURRENT LISTING IS FOR RFW-SL3 ONLY.
RFW-SL1 and -SL2 are on backorder with a estimated restock date of early 2021.
You are welcome to email us to place a preorder for -SL1 and -SL2 sizes.

	Wire Insulation Dia.	Color	Part Number	Alt. Info
RFW-SL1	1.4-2.0 mm (.055-.079 in)	White	RFW-W-D050	alt p/n: X010318
RFW-SL2	2.0-2.5 mm (.079-.098 in)	Green	RFW-W-D125	alt p/n: X010319
RFW-SL3	2.5-2.8 mm (.098-.110 in)	Gray	RFW-W-D200	alt p/n: X010320
Available stock: Aftermarket OEM

Suzuki 09900-28710-015, 09900-28710-016 (Seal from refill kit)

	RFW/QLW-16S 16-Way (14+2) Hybrid Kit Kit Contents: Housing, 14x 090 socket terminals and seals, 2x 250 socket terminals and seals, front lock Mfg: OEM Furukawa Series: RFW+QLW Hybrid Series OEM P/N: FW/QLW2-C-16F-B (alt p/n: 13412-4116-2)
		Price: $13.49 090 Socket/Wire size 090 Insulation/Seal size 250 Socket/Wire size 250 Insulation/Seal size Quantity: Kit

	RFW/QLW-8P 8-Way (6+2) Hybrid Kit Kit Contents: Housing, 6x 090 pin terminals and seals, 2x 250 pin terminals and seals, front lock Mfg: OEM Furukawa Series: RFW+QLW Hybrid Series OEM P/N: RFW/QLW2-C-8M-B (alt p/n: R020055, FT0650)
		Price: $9.84 090 Pin/Wire size 090 Insulation/Seal size 250 Pin/Wire size 250 Insulation/Seal size Quantity: Kit

	NEW ITEM! VC-2S 2-Way Kit Kit Contents: Housing, 2 socket contacts Mfg: OEM Furukawa Series: VC Series OEM P/N: 11404-1102, black Part Name: VC-2F Mating Part: N/A, Device header Mazda RX-7 "solenoid rack" on 78'-95' FB, FC, FD
		QtyPrice 1-5$5.13 6-19$4.87 20-49$4.62 50-99$4.36 100+$4.10 Socket/Wire Size Quantity: Kit
