Home ▹ FCI (Delphi/Aptiv)

FCI (Delphi/Aptiv)
10-Way Kit
APEX.150-10P-A
10-Way Kit
OEM P/N: 54241000 (Aptiv p/n: 13763996)
View Item
APEX.150-10P-A  10-Way Kit
Kit Contents: Housing, 10 pin contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 150 Series
OEM P/N: 54241000 (Aptiv p/n: 13763996)
Mating Part: 54241030, 13737245

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:10
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 1.00 mm2
  • Number of Rows:2
  • Pitch:3.5mm
  • Row Spacing:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 125 °C
  • Protection Rating:IP69K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$5.79
6-19$5.50
20-49$5.21
50-99$4.92
100+$4.63
Quantity:  Kit

APEX 150 Series Pin Contact
APEX.150-PIN
APEX 150 Series Pin Contact
View Item
APEX.150-PIN  APEX 150 Series Pin Contact

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 150 Series

Wire SizePlatingPart Number (Aptiv p/n)
APEX.150-PIN1.35-.8 mm2 (22-20 AWG)Tin54002001 (13624759)
APEX.150-PIN2.75-1.0 mm2 (18-16 AWG)Tin54001626 (13630404)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 1.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.22
50-99$0.21
100-249$0.20
250-499$0.18
500+$0.15
Quantity:  Ea

2-Way Kit, Type A
APEX.28-2P-A
2-Way Kit, Type A
OEM P/N: 54200210 (Aptiv p/n: 15488574)
View Item
APEX.28-2P-A  2-Way Kit, Type A
Kit Contents: Housing, 2 pin contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200210 (Aptiv p/n: 15488574)
Keying: A
Mating Part: APEX.28-2S-A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 04687921
  • Yazaki 7282-5292-30
QtyPrice (USD)
1-5$4.53
6-19$4.30
20-49$4.08
50-99$3.85
100+$3.62
Quantity:  Kit

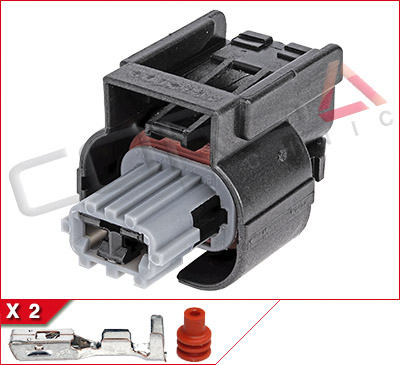

2-Way Kit, Type A
APEX.28-2S-A
2-Way Kit, Type A
OEM P/N: 54200206 (Aptiv p/n: 10757672)
View Item
APEX.28-2S-A  2-Way Kit, Type A
Kit Contents: Housing, 2 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200206 (Aptiv p/n: 10757672)
Keying: A
Mating Part: APEX.28-2P-A

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 04687912, and connector used in Mopar 05017117AA repair kit.
QtyPrice (USD)
1-5$4.58
6-19$4.35
20-49$4.12
50-99$3.89
100+$3.66
Quantity:  Kit

3-Way Kit, Type C
APEX.28-3P-C
3-Way Kit, Type C
OEM P/N: 54200314 (Aptiv p/n: 13865701)
View Item
APEX.28-3P-C  3-Way Kit, Type C
Kit Contents: Housing, 3 pin contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200314 (Aptiv p/n: 13865701)
Keying: C
Mating Part: APEX.28-3S-C

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 56038165
QtyPrice (USD)
1-5$6.05
6-19$5.75
20-49$5.45
50-99$5.14
100+$4.84
Quantity:  Kit

3-Way Kit, Type A
APEX.28-3S-A
3-Way Kit, Type A
OEM P/N: 54200308 (Aptiv p/n: 10757671)
View Item
APEX.28-3S-A  3-Way Kit, Type A
Kit Contents: Housing, 3 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200308 (Aptiv p/n: 10757671)
Keying: A
Mating Part: 54200312

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 56038149, and connector used in Mopar 05014007AB repair kit.
  • Nissan/Bosch J-48817-1110 pigtail connector
  • Nissan service part 24008-9DK1A connector
QtyPrice (USD)
1-5$4.67
6-19$4.44
20-49$4.20
50-99$3.97
100+$3.74
Quantity:  Kit

3-Way Kit, Type B
APEX.28-3S-B
3-Way Kit, Type B
OEM P/N: 54200309 (Aptiv p/n: 15380782)
View Item
APEX.28-3S-B  3-Way Kit, Type B
Kit Contents: Housing, 3 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200309 (Aptiv p/n: 15380782)
Keying: B
Mating Part: 54200313

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 56038150, and connector used in Mopar 05014008AA repair kit.
  • Nissan/Bosch J-48817-1111 pigtail connector
  • Nissan service part 24008-9DK1B connector
QtyPrice (USD)
1-5$5.73
6-19$5.44
20-49$5.16
50-99$4.87
100+$4.58
Quantity:  Kit

3-Way Kit, Type C
APEX.28-3S-C
3-Way Kit, Type C
OEM P/N: 54200310 (Aptiv p/n: 13849913)
View Item
APEX.28-3S-C  3-Way Kit, Type C
Kit Contents: Housing, 3 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200310 (Aptiv p/n: 13849913)
Keying: C
Mating Part: APEX.28-3P-C

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 56038151, and connector used in Mopar 05014009AA repair kit.
  • Nissan/Bosch J-48817-1112 pigtail connector
  • Nissan service part 24008-9DK1C connector
QtyPrice (USD)
1-5$5.51
6-19$5.23
20-49$4.96
50-99$4.68
100+$4.41
Quantity:  Kit

3-Way Kit, Type D
APEX.28-3S-D
3-Way Kit, Type D
OEM P/N: 54200311 (Aptiv p/n: 13849911)
View Item
APEX.28-3S-D  3-Way Kit, Type D
Kit Contents: Housing, 3 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200311 (Aptiv p/n: 13849911)
Keying: D
Mating Part: 54200315 (Aptiv p/n: 33500095)

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 56038152, and connector used in Mopar 05014010AB repair kit.
QtyPrice (USD)
1-5$5.51
6-19$5.23
20-49$4.96
50-99$4.68
100+$4.41
Quantity:  Kit

4-Way Kit, Type B
APEX.28-4P-B
4-Way Kit, Type B
OEM P/N: 54200414 (Aptiv p/n: 13754761)
View Item
APEX.28-4P-B  4-Way Kit, Type B
Kit Contents: Housing, 4 pin contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200414 (Aptiv p/n: 13754761)
Keying: B
Mating Part: APEX.28-4S-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:4
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 04707267, and connector used in Mopar 05013983AA repair kit.
  • Ford DU5T-14A594-AA
QtyPrice (USD)
1-5$6.15
6-19$5.84
20-49$5.54
50-99$5.23
100-249$4.92
250+$4.61
Quantity:  Kit

4-Way Kit, Type A
APEX.28-4S-A
4-Way Kit, Type A
OEM P/N: 54200409 (Aptiv p/n: 15425692)
View Item
APEX.28-4S-A  4-Way Kit, Type A
Kit Contents: Housing, 4 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200409 (Aptiv p/n: 15425692)
Keying: A
Mating Part: 54200413 (Aptiv p/n: 15489820)

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:4
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 04707262, and connector used in Mopar 05013979AC repair kit.
  • Nissan/Bosch J-48817-1114 pigtail connector
  • Nissan service part 24008-9DK1E connector
QtyPrice (USD)
1-5$5.90
6-19$5.61
20-49$5.31
50-99$5.02
100+$4.72
Quantity:  Kit

4-Way Kit, Type B
APEX.28-4S-B
4-Way Kit, Type B
OEM P/N: 54200410 (Aptiv p/n: 15324787)
View Item
APEX.28-4S-B  4-Way Kit, Type B
Kit Contents: Housing, 4 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200410 (Aptiv p/n: 15324787)
Keying: B
Mating Part: APEX.28-4P-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:4
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:1
  • Pitch:5.25mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 04707256, and connector used in Mopar 05013978AA repair kit.
  • Ford 4L3T-14A464-AA, and connector used in WPT-1373 (Tin plated, greased terminals) 3U2Z-14S411-DGAB pigtail connector
QtyPrice (USD)
1-5$5.37
6-19$5.10
20-49$4.83
50-99$4.56
100-249$4.30
250+$4.03
Quantity:  Kit

6-Way Kit, Type B
APEX.28-6P-B
6-Way Kit, Type B
OEM P/N: 54200613 (Aptiv p/n: 13589577)
View Item
APEX.28-6P-B  6-Way Kit, Type B
Kit Contents: Housing, 6 pin contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200613 (Aptiv p/n: 13589577)
Keying: B
Mating Part: APEX.28-6S-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:6
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:2
  • Pitch:5.25mm
  • Row Spacing:6.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$6.40
6-19$6.08
20-49$5.76
50-99$5.44
100+$5.12
Quantity:  Kit

6-Way Kit, Type A
APEX.28-6S-A
6-Way Kit, Type A
OEM P/N: 54200608 (Aptiv p/n: 15419838)
View Item
APEX.28-6S-A  6-Way Kit, Type A
Kit Contents: Housing, 6 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200608 (Aptiv p/n: 15419838)
Keying: A
Mating Part: 54200612 (Aptiv p/n: 15430633)

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:6
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:2
  • Pitch:5.25mm
  • Row Spacing:6.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 04707309, and connector used in Mopar 05013984AA repair kit.
  • Nissan/Bosch J-48817-1115 pigtail connector
  • Nissan service part 24008-9DK2A connector
QtyPrice (USD)
1-5$6.37
6-19$6.05
20-49$5.73
50-99$5.41
100+$5.10
Quantity:  Kit

6-Way Kit, Type B
APEX.28-6S-B
6-Way Kit, Type B
OEM P/N: 54200609 (Aptiv p/n: 15412914)
View Item
APEX.28-6S-B  6-Way Kit, Type B
Kit Contents: Housing, 6 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200609 (Aptiv p/n: 15412914)
Keying: B
Mating Part: APEX.28-6P-B

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:6
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
  • Number of Rows:2
  • Pitch:5.25mm
  • Row Spacing:6.4mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
  • Protection Rating:IP68
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Chrysler 04707310, and connector used in Mopar 05013985AA repair kit.
  • Ford CU2Z-14S411-TA, WPT-1266 (Tin greased terminals) pigtail connector
QtyPrice (USD)
1-5$6.80
6-19$6.46
20-49$6.12
50-99$5.78
100+$5.44
Quantity:  Kit

APEX 2.8 Series Plug
APEX.28-PG
APEX 2.8 Series Plug
OEM P/N: 54200005
View Item
APEX.28-PG  APEX 2.8 Series Plug

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series
OEM P/N: 54200005

spacer
General
  • Sealing:Matte Sealed
Mechanical

QtyPrice (USD)
1-49$0.21
50-99$0.20
100-249$0.19
250-499$0.17
500+$0.15
Quantity:  Ea

APEX 2.8 Series Pin Contact
APEX.28-PIN
APEX 2.8 Series Pin Contact
View Item
APEX.28-PIN  APEX 2.8 Series Pin Contact

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series

Wire SizePlatingPart Number (Aptiv p/n)
APEX.28-PIN1.3 mm2 (22 AWG)Tin54002201 (10762776)
-Gold54002230 (33501642)
APEX.28-PIN2.5-.85 mm2 (20-18 AWG)Tin54001801 (10762775)
-Gold54001818 (15435215)
APEX.28-PIN31.25-2.0 mm2 (16-14 AWG)Tin54001401 (10757692)
-Gold54001441 (13681974)
APEX.28-PIN43.0-5.0 mm2 (12-10 AWG)Tin54001001 (10762774)
-Gold54001020 (15512730)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Mixed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.65
50-99$0.62
100-249$0.58
250-499$0.55
500-999$0.52
1000+$0.49
Quantity:  Ea

APEX 2.8 Series Socket Contact
APEX.28-SKT
APEX 2.8 Series Socket Contact
View Item
APEX.28-SKT  APEX 2.8 Series Socket Contact

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series

Wire SizePlatingPart Number (Aptiv p/n)
APEX.28-SKT1.3 mm2 (22 AWG)Tin54002200 (10757691)
-Gold54002203
APEX.28-SKT2.5-.85 mm2 (20-18 AWG)Tin54001800 (10757690)
-Gold54001803 (15422510)
APEX.28-SKT31.25-2.0 mm2 (16-14 AWG)Tin54001400 (10762803)
-Gold54001403 (13681975)
APEX.28-SKT43.0-5.0 mm2 (12-10 AWG)Tin54001000 (10762802)
-Gold54001003 (15512740)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Mixed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.54
50-99$0.51
100-249$0.49
250-499$0.46
500-999$0.43
1000+$0.41
Quantity:  Ea

7-Way Kit for trailer tow harness
APEX.28/63-7S
7-Way Kit for trailer tow harness
OEM P/N: 33362479 (IN STOCK), ss: 13707071 w/blue TPA, w/CPA
33362368, ss: 13628883 w/blue TPA, w/o CPA
33362525, ss: 13737602 w/gray TPA, w/CPA, staked seal
33362480, ss: 13729986 w/gray TPA, w/o CPA, staked seal
View Item
APEX.28/63-7S  7-Way Kit for trailer tow harness
Kit Contents: Housing, 6x 2.8 socket contacts and seals, 1x 6.3 socket contact and seal

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 + 6.3 Hybrid
OEM P/N: 33362479 (IN STOCK), ss: 13707071 w/blue TPA, w/CPA
33362368, ss: 13628883 w/blue TPA, w/o CPA
33362525, ss: 13737602 w/gray TPA, w/CPA, staked seal
33362480, ss: 13729986 w/gray TPA, w/o CPA, staked seal
Mating Part: 9U5T-14A624-MAC, XL3T-14A624-BB, 8U5T-14A624-AB, FU5T-14A624-GA

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:7
  • Contact Size:Mixed
  • Wire Size:0.50 - 6.00 mm2
  • Number of Rows:N/A
  • Pitch:N/A, Circular
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:55A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 8U5T-14A464-AAB, ss: 8U5T-14A464-AAA
  • Ford 8U5T-14A464-FBB, ss: 8U5T-14A464-FBA
  • Ford 8U5T-14A464-GBB, ss: 8U5T-14A464-GBA
  • Ford 8U5T-14A464-JBB, ss: 8U5T-14A464-JBA
  • Ford 3U2Z-14S411-JXB, WPT-975 (Tin plated terminals) pigtail connector
QtyPrice (USD)
1-5$7.27
6-19$6.91
20-49$6.54
50-99$6.18
100+$5.82
Quantity:  Kit

2-Way Kit, Keying A
APEX.28SM-2S
2-Way Kit, Keying A
OEM P/N: F019300 (Aptiv p/n: 13821046) ss: F745000
(alt. p/n w/CPA: F809800, 33509856)
View Item
APEX.28SM-2S  2-Way Kit, Keying A
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX SensoMate 2.8 Series
OEM P/N: F019300 (Aptiv p/n: 13821046) ss: F745000
(alt. p/n w/CPA: F809800, 33509856)
Keying: A
Mating Part: N/A, Device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF35
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 125 °C
  • Protection Rating:IP69K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford AU2Z-14S411-DA, WPT-1065 (Tin plated, greased terminals) pigtail connector
  • Ford 8U5T-14A464-FAC (newest->superseded), 8U5T-14A464-FAB, 8U5T-14A464-FAA
QtyPrice (USD)
1-5$4.22
6-19$4.01
20-49$3.80
50-99$3.59
100+$3.38
Quantity:  Kit

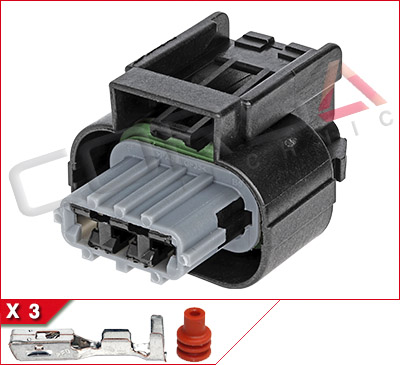

3-Way Kit, Keying A
APEX.28SM-3S
3-Way Kit, Keying A
OEM P/N: F258300 (Aptiv p/n: 13791661)
(alt. p/n w/aqua TPA: F593500, 33513145)
(alt. p/n w/CPA: F731210, 13962796)
View Item
APEX.28SM-3S  3-Way Kit, Keying A
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX SensoMate 2.8 Series
OEM P/N: F258300 (Aptiv p/n: 13791661)
(alt. p/n w/aqua TPA: F593500, 33513145)
(alt. p/n w/CPA: F731210, 13962796)
Keying: A
Mating Part: N/A, Device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 125 °C
  • Protection Rating:IP69K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford AU2Z-14S411-JA, WPT-1068 (Tin plated, greased terminals) pigtail connector
  • Ford AU2Z-14S411-JB, WPT-1369 (Tin plated, greased terminals) pigtail connector
  • Ford 8U5T-14A464-GAC
QtyPrice (USD)
1-5$6.64
6-19$6.31
20-49$5.98
50-99$5.64
100+$5.31
Quantity:  Kit

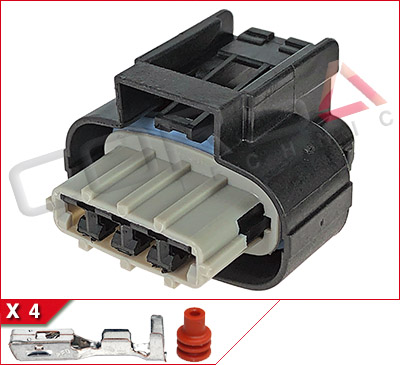

4-Way Kit, Keying A
APEX.28SM-4S
4-Way Kit, Keying A
OEM P/N: F619600 (Aptiv p/n: 13856355)
(alt. p/n w/dk grey TPA: F339700, 13841589)
(alt. p/n w/CPA: F264310, 33513154, 35059595)
View Item
APEX.28SM-4S  4-Way Kit, Keying A
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX SensoMate 2.8 Series
OEM P/N: F619600 (Aptiv p/n: 13856355)
(alt. p/n w/dk grey TPA: F339700, 13841589)
(alt. p/n w/CPA: F264310, 33513154, 35059595)
Keying: A
Mating Part: N/A, Device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.8mm (.110)
  • Wire Size:0.50 - 3.00 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF35
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes, connector option
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 125 °C
  • Protection Rating:IP69K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford BU5T-14A464-JAA (w/dk gray TPA)
  • Ford BU2Z-14S411-ATA, WPT-1232 (Tin plated, greased terminals) pigtail connector
QtyPrice (USD)
1-5$6.30
6-19$5.98
20-49$5.67
50-99$5.35
100+$5.04
Quantity:  Kit

APEX 2.8 Single Wire Sealing Socket Contact
APEX.28SWS-SKT
APEX 2.8 Single Wire Sealing Socket Contact
View Item
APEX.28SWS-SKT  APEX 2.8 Single Wire Sealing Socket Contact

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Single Wire Sealing Series, APEX 2.8 + 6.3 Hybrid

Wire SizePlatingPart Number (Aptiv p/n)
APEX.28SWS-SKT1.5-.85 mm2 (20-18 AWG)Tin54001807 (10810375)
-Gold54001811 (13948955)
APEX.28SWS-SKT21.25-2.0 mm2 (16-14 AWG)Tin54001404 (13627267)
-Gold54001410 (15470590)
APEX.28SWS-SKT33.0 mm2 (12 AWG)Tin54001202 (10810733)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.50 - 3.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 9U5T-14474-KA (54001879), 9U5T-14474-JA (54001448), XL3T-14474-DA (54001840), XL3T-14474-AA (54001432)
QtyPrice (USD)
1-49$0.31
50-99$0.29
100-249$0.28
250-499$0.26
500-999$0.25
1000+$0.23
Quantity:  Ea

APEX 6.3 Single Wire Sealing Socket Contact
APEX.63SWS-SKT
APEX 6.3 Single Wire Sealing Socket Contact
View Item
APEX.63SWS-SKT  APEX 6.3 Single Wire Sealing Socket Contact

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 + 6.3 Hybrid

Wire SizePlatingPart Number (Aptiv p/n)
APEX.63SWS-SKT1.75-1.5 mm2 (18-16 AWG)Tin54001623 (13673119)
-Tin/SilverF185900 (15509071)
APEX.63SWS-SKT22-3 mm2 (14-12 AWG)Tin54001200/54001224 (13658862)
-Tin/SilverF285900 (15509072)
APEX.63SWS-SKT34-6 mm2 (10 AWG)Tin54001004/54001023 (10863886)
-Tin/SilverF385900 (13874918)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.75 - 6.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:55A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Ford 1L5T-14474-AA (SKT2)
QtyPrice (USD)
1-49$0.63
50-99$0.60
100-249$0.57
250-499$0.50
500+$0.44
Quantity:  Ea

6-Way Kit
APEX.EGAS-6S
6-Way Kit
OEM P/N: 54390612
View Item
APEX.EGAS-6S  6-Way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: OEM FCI
Series: APEX 150 EGAS
OEM P/N: 54390612
Keying: A
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:1.5mm (.060)
  • Wire Size:0.50 - 0.85 mm2
  • Number of Rows:2
  • Pitch:4.0mm
  • Row Spacing:4.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF35
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:Yes
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Connector on Chrysler throttle body harness 05183469AB
  • Throttle body 04591847AC, 53032801AC, A2C53099252, 5718201, 5775292
spacer
  • Mopar 05183469AB repair kit connector
Obsolete with no replacement
This item is backordered.

EPC Connector Clamp
CLIP-201
EPC Connector Clamp
OEM P/N: E-3878-001
View Item
CLIP-201  EPC Connector Clamp

Mfr: OEM EPC
Series: 1.5mm Sealed, 2.8mm Sealed
OEM P/N: E-3878-001
For (2x) 6.25mm dia. hole with 5.10mm thickness maximum.

QtyPrice (USD)
1-5$0.57
6-19$0.54
20-49$0.51
50-99$0.48
100-249$0.46
250-499$0.43
500-999$0.40
1000-2499$0.37
2500-4999$0.34
5000+$0.31
Quantity:  Ea

EPC Connector Clamp
CLIP-205
EPC Connector Clamp
OEM P/N: E-3886
View Item
CLIP-205  EPC Connector Clamp

Mfr: OEM EPC
Series: 1.5mm Sealed, 2.8mm Sealed
OEM P/N: E-3886
For (2x) 6.25mm dia. hole with 5.10mm thickness maximum.

spacer
  • Ford 8C3T-13A506-AA
QtyPrice (USD)
1-5$0.70
6-19$0.66
20-49$0.65
50-99$0.63
100-249$0.59
250-499$0.56
500-999$0.52
1000+$0.49
Quantity:  Ea

APEX Series Connector Clamp
CLIP-206
APEX Series Connector Clamp
OEM P/N: 54200010 (13768145)
View Item
CLIP-206  APEX Series Connector Clamp

Mfr: OEM FCI
Series: APEX 150, APEX 2.8
OEM P/N: 54200010 (13768145)
For (2x) 6.6mm dia. holes with 0.76-5.10mm thickness.
For Type 1 (Chrysler) clip slots in the APEX series.

spacer

QtyPrice (USD)
1-5$0.74
6-19$0.70
20-49$0.67
50-99$0.63
100-249$0.59
250-499$0.55
500-999$0.52
1000+$0.48
Quantity:  Ea

EPC Connector Clamp
CLIP-207
EPC Connector Clamp
OEM P/N: E-0942
View Item
CLIP-207  EPC Connector Clamp

Mfr: OEM EPC
Series: Molex MX150 Sealed Series
TE Sealed Sensor Connector Series
Yazaki YESC 1.5+58 Y Hybrid Sealed
Yazaki YESC KAIZEN 9.5 Sealed
OEM P/N: E-0942
For 6.5mm dia. hole with 5.1mm thickness maximum.

QtyPrice (USD)
1-5$0.61
6-19$0.58
20-49$0.55
50-99$0.52
100-249$0.49
250-499$0.46
500-999$0.43
1000-2499$0.40
2500-4999$0.37
5000+$0.34
Quantity:  Ea

3-Way Kit
RDC-3S-A
3-Way Kit
OEM P/N: Ford: 1W7T-14A464-LA
FCI: 54390312
View Item
RDC-3S-A  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM FCI/FORD
Series: RDC Series
OEM P/N: Ford: 1W7T-14A464-LA
FCI: 54390312
Keying: A
Mating Part: N/A, Device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 1.50 mm2
  • Number of Rows:1
  • Pitch:4.5mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 130 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Engine coolant sensor
spacer
  • Ford XW4T-14A464-AKA
  • Ford 3U2Z-14S411-PXB, WPT-1002 (Tin, greased terminals) pigtail connector
  • Ford 3U2Z-14S411-LZA, WPT-560 (Gold plated terminals) pigtail connector
QtyPrice (USD)
1-5$4.64
6-19$4.41
20-49$4.18
50-99$3.94
100+$3.71
Quantity:  Kit

3-Way Kit
RDC-3S-B
3-Way Kit
OEM P/N: Ford: 1W7T-14A464-MA
FCI: 54390310, Aptiv: 15451399
View Item
RDC-3S-B  3-Way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM FCI/FORD
Series: RDC Series
OEM P/N: Ford: 1W7T-14A464-MA
FCI: 54390310, Aptiv: 15451399
Keying: B
Mating Part: N/A, Device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 1.50 mm2
  • Number of Rows:1
  • Pitch:4.5mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 130 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Engine coolant sensor
spacer
  • Ford XW4T-14A464-ARA
  • Ford 3U2Z-14S411-KMB, WPT-1205 (Tin, greased terminals) pigtail connector
QtyPrice (USD)
1-5$4.64
6-19$4.41
20-49$4.18
50-99$3.94
100+$3.71
Quantity:  Kit

4-Way Kit
SICMA15-4P-2
4-Way Kit
View Item
SICMA15-4P-2  4-Way Kit
Kit Contents: Housing, 4 pin contacts, 4 seals

Mfr: Aftermarket, FCI does not make an actual part. This is a custom part that uses Delphi Metri-Pack 150 pins and seals.
Series: SICMA 1.5 Mini-Sealed
Mating Part: 15369055

QtyPrice (USD)
1-5$3.78
6-19$3.52
20-49$3.21
50-99$3.02
100+$2.65
Quantity:  Kit

Sicma2 1.5 Series Socket Contact
SICMA15-SKT2
Sicma2 1.5 Series Socket Contact
View Item
SICMA15-SKT2  Sicma2 1.5 Series Socket Contact

Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed

Wire SizePlatingPart Number (Aptiv p/n)
SICMA15-SKT1.35-.75 mm2 (22-20 AWG)Tin211CC2S1120 (10738188)
-Gold211CC2S1230 (10738192)
SICMA15-SKT21-2 mm2 (18-14 AWG)Tin211CC2S2120 (10726212)
-Gold211CC2S2230 (10757258)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Mixed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:26A
Environmental
  • Temp Range[2]:-40 - 155 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.39
50-99$0.37
100-249$0.35
250-499$0.33
500-999$0.31
1000+$0.29
Quantity:  Ea

3-Way Kit
SICMA15.CS-3S-2
3-Way Kit
OEM P/N: 211PC032S2081 (10866570)
View Item
SICMA15.CS-3S-2  3-Way Kit
Kit Contents: Housing, 3 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed
OEM P/N: 211PC032S2081 (10866570)
Mating Part: N/A, device only

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:3
  • Contact Size:1.5mm (.060)
  • Wire Size:0.22 - 2.00 mm2
  • Number of Rows:1
  • Pitch:3.33mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:26A
Environmental
  • Temp Range[2]:-40 - 125 °C
  • Protection Rating:IP68, IPx9K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Renault 8200399949
  • Sumitomo 1310-1534
QtyPrice (USD)
1-5$3.74
6-19$3.55
20-49$3.37
50-99$3.18
100+$2.99
Quantity:  Kit

2-Way Kit
SICMA15.NM-2S-0
2-Way Kit
OEM P/N: 211PC022S0149 (10820158)
View Item
SICMA15.NM-2S-0  2-Way Kit
Kit Contents: Housing, 2 socket contacts

Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed
OEM P/N: 211PC022S0149 (10820158)
Mating Part: 211PL022S0049, 10787262

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:2
  • Contact Size:1.5mm (.060)
  • Wire Size:0.22 - 2.00 mm2
  • Number of Rows:1
  • Pitch:3.33mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT+GF15
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:26A
Environmental
  • Temp Range[2]:-40 - 125 °C
  • Protection Rating:IP68, IPx9K
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Lear 3216735S7
  • Sumitomo 1310-1504
  • Yazaki 7283-3818-30
QtyPrice (USD)
1-5$2.82
6-19$2.68
20-49$2.54
50-99$2.40
100+$2.26
Quantity:  Kit

Sicma3+ Clean Body 1.5 Series Socket Contact
SICMA15P-SKT
Sicma3+ Clean Body 1.5 Series Socket Contact
View Item
SICMA15P-SKT  Sicma3+ Clean Body 1.5 Series Socket Contact

Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed

Wire SizePlatingPart Number (Aptiv p/n)
-.22 mm2 (24 AWG)Tin211CC2S0160P (13625048)
-Gold211CC2S0460P
SICMA15P-SKT1.35-.70 mm2 (22-20 AWG)Tin211CC2S1160P (10863984)
-Gold211CC2S1460P (13764604)
SICMA15-SKT2.75-1.30 mm2 (18-16 AWG)Tin211CC2S4160P (10865182)
-Gold211CC2S4460P (33500701)
SICMA15-SKT31.35-2.0 mm2 (14 AWG)Tin211CC2S2160P (10863985)
-Gold211CC2S2460P (13764602)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Mixed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.22 - 2.00 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:26A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Lear 3202521B5 (SKT1), 3202536R3 (SKT2), 3202521C3 (SKT3)
  • Sumitomo 1400-4883 (SKT1), 1400-5441 (SKT2), 1400-4884 (SKT3)
  • Volvo 25371115 (SKT1)
  • Yazaki 7116-6955-02 (SKT1), 7116-6957-02 (SKT2), 7116-6958-02 (SKT3)
QtyPrice (USD)
1-49$0.25
50-99$0.24
100-249$0.23
250-499$0.20
500+$0.17
Quantity:  Ea

Sicma3 Clean Body 2.8 Series Socket Contact
SICMA28-SKT3
Sicma3 Clean Body 2.8 Series Socket Contact
View Item
SICMA28-SKT3  Sicma3 Clean Body 2.8 Series Socket Contact

Mfr: OEM FCI (Delphi/Aptiv)
Series: SICMA 1.5 Mini-Sealed

Wire SizePlatingPart Number (Aptiv p/n)
SICMA28-SKT1.35-.70 mm2 (22-20 AWG)Tin211CC3S1160 (10781041)
-Gold211CC3S1460 (13567906)
SICMA28-SKT2.75-1.30 mm2 (18-16 AWG)Tin211CC3S4160 (15522621)
-Gold211CC3S4460 (33510894)
SICMA28-SKT31.35-2.5 mm2 (14 AWG)Tin211CC3S2160 (10726549)
-Gold211CC3S2460 (33501949)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Mixed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 2.50 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:26A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.16
500+$0.14
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1 R6A1
