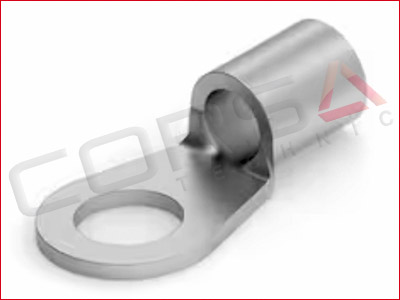

SOLISTRAND Ring Terminals
Images shown may represent a range of products or be for illustration purposes only.
| Stud size | Wire size | Circular Mils | L | W | P/N | Drawing | 3D STEP |
|---|---|---|---|---|---|---|---|
| M6 | 0.26-1.65mm² | 22-16AWG | 509-3260 | 21.74 | 11.91 | 34113 (M6-22/16) |  |
 |
| 1.04-2.62mm² | 16-14AWG | 2050-5180 | 21.72 | 11.91 | 34124 (M6-16/14) | |
| |
| 1.65-4.17mm² | 14-12AWG | 3260-8230 | 18.77 | 10.69 | 34487 (M6-14/12) | |
| |
| 2.62-6.64mm² | 12-10AWG | 5180-13100 | 21.97 | 12.70 | 35772 (M6-12/10) | |
| |
| 6.64-10.5mm² | 8 AWG | 13100-20800 | 23.70 | 11.91 | 33461 (M6-8) | |
| |
| 10.5-16.8mm² | 6 AWG | 20800-33100 | 29.67 | 11.89 | 321598 (M6-6) | |
| |
| 16.8-26.7mm² | 4 AWG | 33100-52600 | 30.45 | 12.70 | 31811 (M6-4) | |
|
Documents
Specifications
General
- Sealing:Unsealed
Mechanical
- Termination:Closed barrel crimp
Environmental
- Temp Range[2]:-55 - 170 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
For detailed characteristics, see applicable product documents.
