Seals

Replacement internal seal for RFW-2S

	Wire Insulation Dia.	Color	Part Number
090II-SL1	0.8-1.2 mm (.031-.047 in)	Blue	7158-3006-90
090II-SL2	1.2-1.5 mm (.047-.059 in)	Gray	7158-3007-10
090II-SL3	1.5-1.9 mm (.059-.075 in)	Brown	7158-3008-80
Available stock: Aftermarket OEM

For 5mm pitch connectors

	Wire Insulation Dia.	Color	Part Number
090II-SL4	1.4-1.8 mm (.055-.070 in)	Blue	7158-3003-90
090II-SL5	2.0-2.2 mm (.078-.086 in)	Gray	7158-3004-40
090II-SL6	TBD	Brown	7158-3005-80
Available stock: Aftermarket OEM

DL040-SL1 for insulation dia. 1.4-1.8 mm (.055-.071 in), p/n: 7165-0547, Reddish/Brown
DL040-SL2 for insulation dia. 1.8-2.2 mm (.071-.086 in), p/n: 7165-0548, Blue

EPC15-SL1 for insulation dia. 1.19-1.65 mm (.047-.065 in), p/n: E-1644-01, Pink
EPC15-SL2 for insulation dia. 1.60-2.10 mm (.063-.083 in), p/n: E-1644-00, Green
EPC15-SL3 for insulation dia. 2.10-2.50 mm (.083-.098 in), p/n: E-1644-02, Yellow

Previously item: TM-SL
Tyco/AMP Econoseal J Series Mk II
ESJ-SL1 for insulation dia. 1.4-2.4 mm (.055-.094 in), Tyco/ AMP p/n: 172746-1, black
ESJ-SL2 for insulation dia. 2.0-2.6 mm (.079-.102 in), Tyco/ AMP p/n: 172888-2, gray

GT150.35-SL1 for insulation dia. 1.47-1.85 mm (.058-.073 in), P/N: 15366022, green
GT150.35-SL2 for insulation dia. 1.70-2.10 mm (.067-.083 in), P/N: 15305351, yellow

GT150.45-SL1 for insulation dia. 1.20-1.85 mm (.058-.073 in), P/N: 15366021 (reel: 12191152), White
GT150.45-SL2 for insulation dia. 1.86-2.25 mm (.067-.083 in), P/N: 15366060 (reel: 12191153), Blue

Family: HX 040 Sealed Series and used with HV/HVG Sealed Series
HX040-SL1 for insulation dia. 1.10-1.60 mm (.043-.063 in), p/n: 7165-1075, orange
HX040-SL2 for insulation dia. 1.60-1.90 mm (.063-.075 in), p/n: 7165-0621, light green
HX040-SL3 for insulation dia. 1.80-2.20 mm (.071-.087 in), p/n: 7165-0622, violet

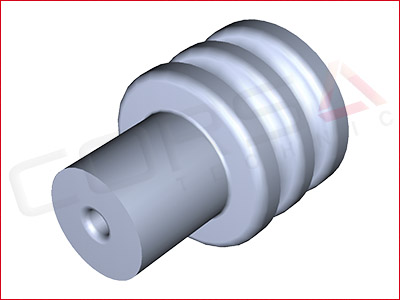

JPT-SL1 for insulation dia. 1.2-2.1 mm (.047-.083 in), Tyco/ AMP p/n: 828904-1, blue
JPT-SL2 for insulation dia. 2.2-3.0 mm (.086-.118 in), Tyco/ AMP p/n: 828905-1, white

NOTE: Not applicable to Bosch Kompakt 1.1 connectors, which use BDK components. Unsure which you need? The rear of the connector body states which you need to use, as JPT or B.K

MP150-SL1 for insulation dia. 1.29-1.70 mm (.051-.067 in), Blue, Delphi p/n: 15324974 (supersedes p/n: 12048087)(spool p/n: 12052925)
MP150-SL2 for insulation dia. 1.60-2.15 mm (.063-.085 in), White, Delphi p/n: 15324976
MP150-SL3 for insulation dia. 2.03-2.85 mm (.080-.112 in), Red, Delphi p/n: 15324973

MP280-SL1 for insulation dia. 1.29-1.70 mm (.050-.067 in), p/n: 15324983, Red (old: 12015899, reel: 12034365)
MP280-SL2 for insulation dia. 1.60-2.15 mm (.063-.085 in), p/n: 15324985, Purple (old: 12089679, reel: 12089444)
MP280-SL3 for insulation dia. 2.03-2.42 mm (.080-.095 in), p/n: 15324984, Tan (old: 12041351, reel: 12041352)
MP280-SL4 for insulation dia. 2.03-2.85 mm (.080-.112 in), p/n: 15324982, Green (old: 12015323, reel: 12015284)
MP280-SL5 for insulation dia. 2.81-3.49 mm (.111-.137 in), p/n: 15324980, Gray (old: 12010293, reel: 12015359)
MP280-SL6 for insulation dia. 3.45-4.30 mm (.136-.170 in), p/n: 15324981, Blue (old: 12015193, reel: 12015360)

NOTE: The Weather-Pack and Metri-Pack 280 series use the same seals

For 5mm pitch connectors

For wire insulation dia. 2.0-2.7 mm (.078-.106 in)

QLW-SL1 for insulation dia. 2.6-2.7 mm (.102-.106 in), Furukawa p/n: QLW-W-200 (alt p/n: R010110), Brown
QLW-SL2 for insulation dia. 2.9-3.8 mm (.114-.149 in), Furukawa p/n: QLW-W-300 (alt p/n: R010111), Blue
QLW-SL3 for insulation dia. 4.4-5.7 mm (.173-.224 in), Furukawa p/n: QLW-W-800 (alt p/n: R010112), Green

RFW-SL1 for insulation dia. 1.4-2.0 mm (.055-.079 in), Furukawa p/n: RFW-W-D050 (alt p/n: X010318), White
RFW-SL2 for insulation dia. 2.0-2.5 mm (.079-.098 in), Furukawa p/n: RFW-W-D125 (alt p/n: X010319), Green
RFW-SL3 for insulation dia. 2.5-2.8 mm (.098-.110 in), Furukawa p/n: RFW-W-D200 (alt p/n: X010320), Gray

RH/HS-SL1 for insulation dia. 0.91-1.25 mm (.036-.049 in.), p/n: 7158-3165-90, Blue
RH/HS-SL2 for insulation dia. 1.15-1.50 mm (.045-.059 in.), p/n: 7158-3166-60, Green
RH/HS-SL3 for insulation dia. 1.35-1.70 mm (.053-.067 in.), p/n: 7158-3167-80, Brown
RH/HS-SL4 for insulation dia. 1.54-1.90 mm (.060-.075 in.), p/n: 7158-3168-80, Dark Brown

RS-SL1 for insulation dia. 1.0-1.4 mm (.039-.055 in), p/n: 7165-0474, Orange
RS-SL2 for insulation dia. 1.5-1.9 mm (.059-.075 in), p/n: 7165-0473, Light blue
RS-SL3 for insulation dia. 2.0-2.4 mm (.079-.094 in), p/n: 7165-0472, Violet
RS-SL4 for insulation dia. 2.5-2.9 mm (.098-.114 in), p/n: 7165-0471, Light green

SS15-SL1 for insulation dia. 1.2-1.6 mm (.047-.063 in), Tyco/AMP p/n: 281934-4, Green
SS15-SL2 for insulation dia. 1.7-2.4 mm (.067-.095 in), Tyco/AMP p/n: 281934-2, Yellow
SS15-SL3 for insulation dia. 2.5-3.3 mm (.098-.130 in), Tyco/AMP p/n: 281934-3, Red

SSC-SL1 for insulation dia. 1.2-1.7 mm (.047-.067 in), Tyco/ AMP p/n: 184139-1, light blue
SSC-SL2 for insulation dia. 1.6-2.1 mm (.063-.083 in), Tyco/ AMP p/n: 184140-1, red/orange
SSC-SL3 for insulation dia. 2.2-2.7 mm (.086-.106 in), Tyco/ AMP p/n: 184141-1, purple

SSD-SL1 for insulation dia. 1.4-1.7 mm (.055-.067 in), Yazaki p/n: 7157-3950-80, orange
SSD-SL2 for insulation dia. 1.8-2.1 mm (.071-.083 in), Yazaki p/n: 7157-3951-60, green

SUMI-SL4 for insulation dia. 1.10-1.50 mm (.043-.059 in), Sumitomo p/n: 7165-0210, Red
SUMI-SL5 for insulation dia. 1.70-2.40 mm (.067-.094 in), Sumitomo p/n: 7165-0118, Blue
SUMI-SL6 for insulation dia. 2.10-2.90 mm (.083-.114 in), Sumitomo p/n: 7165-0119, Brown

SUMI-SL3 for insulation dia. 1.20-1.70 mm (.047-.067 in), Sumitomo p/n: 7165-0385, Gray
SUMI-SL5 for insulation dia. 1.70-2.40 mm (.067-.094 in), Sumitomo p/n: 7165-0118, Blue
SUMI-SL6 for insulation dia. 2.10-2.90 mm (.083-.114 in), Sumitomo p/n: 7165-0119, Brown

SUMI-SL3 for insulation dia. 1.20-1.70 mm (.047-.067 in), Sumitomo p/n: 7165-0385, Gray
SUMI-SL7 for insulation dia. 1.70-2.40 mm (.067-.094 in), Sumitomo p/n: 7165-0194, Green
SUMI-SL8 for insulation dia. 2.10-2.90 mm (.083-.114 in), Sumitomo p/n: 7165-0198, Yellow

From HM Sealed and MT Sealed series, and cross-compatible with Yazaki 090 Sealed Series
SUMI-SL1 for insulation dia. 1.3-1.7 mm (.051-.067 in), Sumitomo p/n: 7165-0076, Green
SUMI-SL2 for insulation dia. 1.7-2.7 mm (.067-.106 in), Sumitomo p/n: 7160-8234, Black

SUMI.187-SL6 for insulation dia. 1.4-2.0 mm (.055-.079 in), p/n: 7165-0346, Dark brown
SUMI.187-SL7 for insulation dia. 2.0-2.9 mm (.079-.114 in), p/n: 7165-0347, Dark green
SUMI.187-SL8 for insulation dia. 2.9-3.5 mm (.114-.138 in), p/n: 7165-0348, Dark gray (NOT IN STOCK)
SUMI.187-SL9 for insulation dia. 3.5-4.1 mm (.138-.161 in), p/n: 7165-0356, Dark blue (NOT IN STOCK)

SUMI.187-SL1 for insulation dia. 1.4-1.9 mm (.055-.074 in), p/n: 7165-0172, Brown
SUMI.187-SL2 for insulation dia. 1.8-2.9 mm (.071-.114 in), p/n: 7165-0130, Gray
SUMI.187-SL3 for insulation dia. 3.0-4.1 mm (.118-.161 in), p/n: 7165-0131, Black

TS025-SL1 for insulation dia. 0.85-0.95 mm (.033-.037 in), p/n: 7165-1423, Light Brown (Coming Soon)
TS025-SL2 for insulation dia. 0.95-1.05 mm (.037-.041 in), p/n: 7165-1043, Green
TS025-SL3 for insulation dia. 1.1-1.4 mm (.043-.055 in), p/n: 7165-1312, Violet
TS025-SL4 for insulation dia. 1.4-1.5 mm (.055-.059 in), p/n: 7165-1198, Dark Yellow
TS025-SL5 for insulation dia. 1.6-1.7 mm (.063-.067 in), p/n: 7165-1199, Red Violet

For 5mm pitch connectors

	Wire Insulation Dia.	Color	Part Number
TS090-SL5	1.4-2.0 mm (.055-.078 in)	Red-Brown	7165-0342
TS090-SL6	2.0-2.5 mm (.078-.098 in)	Black	7165-0343
TS090-SL7	2.5-2.9 mm (.098-.114 in)	Dark Blue	7165-0344
Available stock: Aftermarket OEM

For 6mm pitch connectors

	Wire Insulation Dia.	Color	Part Number
TS090-SL1	1.1-1.4 mm (.043-.055 in)	Blue	7165-0842
TS090-SL2	1.4-2.0 mm (.055-.079 in)	Brown	7165-0349
TS090-SL3	2.0-2.5 mm (.079-.098 in)	Dark green	7165-0395
TS090-SL4	2.5-2.9 mm (.098-.114 in)	Gray	7165-0351
Available stock: Aftermarket OEM

WP-SL1 for insulation dia. 1.29-1.70 mm (.050-.067 in), p/n: 15324983, Red (old: 12015899, reel: 12034365)
WP-SL2 for insulation dia. 1.60-2.15 mm (.063-.085 in), p/n: 15324985, Purple (old: 12089679, reel: 12089444)
WP-SL3 for insulation dia. 2.03-2.42 mm (.080-.095 in), p/n: 15324984, Tan (old: 12041351, reel: 12041352)
WP-SL4 for insulation dia. 2.03-2.85 mm (.080-.112 in), p/n: 15324982, Green (old: 12015323, reel: 12015284)
WP-SL5 for insulation dia. 2.81-3.49 mm (.111-.137 in), p/n: 15324980, Gray (old: 12010293, reel: 12015359)
WP-SL6 for insulation dia. 3.45-4.30 mm (.136-.170 in), p/n: 15324981, Blue (old: 12015193, reel: 12015360)

NOTE: The Weather-Pack and Metri-Pack 280 series use the same seals

YESC.15-SL4 for insulation dia. 1.1-1.4 mm (.043-.055 in), p/n: 7158-3376-50, Orange
YESC.15-SL5 for insulation dia. 1.4-1.9 mm (.055-.075 in), p/n: 7158-3374-90, Turquoise
YESC.15-SL6 for insulation dia. 1.8-2.4 mm (.071-.094 in), p/n: 7158-3375-80, Lt. Brown
