Ring Terminals
ILR-M6
Interlocking Ring Terminals, M6
Series: Ring Terminals
Series: Ring Terminals
Commonly used as chassis grounds, these ring terminals interlock with each other as they are stacked.
- "Single stack" terminals will only lock with another terminal, and will always be either the top or bottom of the stack.
- A Single Left always starts at the bottom (against chassis). A Single Right is always the last (top of stack).
- Stacks are built up in a repeating Left - Right pattern, until a Single Right completes the stack.
- For additional grounds, "Double stack" terminals will lock with another terminal above and below it.
| Description | P/N | Wire size | Sumitomo | |
|---|---|---|---|---|
 | Single M6 Right | ILR-M6-R-1 | 0.5-2.0mm² | 20-14AWG | 8100-2006 |
| ILR-M6-R-2 | 3-5mm² | 12-10AWG | 8100-1995 | ||
 | Double M6 Left | ILR-M6-LD-1 | 0.5-0.75mm² | 20-18AWG | 8100-3479 |
| - | 0.85-2mm² | 18-14AWG | 8100-3481 | ||
| ILR-M6-LD-2 | 3-5mm² | 12-10AWG | 8100-3480 | ||
 | Double M6 Right | - | 0.5-0.75mm² | 20-18AWG | 8100-3476 |
| ILR-M6-RD-1 | 0.85-2mm² | 18-14AWG | 8100-3477 | ||
| ILR-M6-RD-2 | 3-5mm² | 12-10AWG | 8100-3478 | ||
 | Single M6 Left | ILR-M6-L-1 | 0.75-2.0mm² | 18-14AWG | 8100-2008 |
| ILR-M6-L-2 | 3-5mm² | 12-10AWG | 8100-1996 | ||
| Available stock: Aftermarket OEM | ||||
ILR-M6-LT
Interlocking Ring Terminal - With Tab, M6
Series: Ring Terminals
Series: Ring Terminals
Left terminal with anti-rotation tab. For M6 bolts.
| Wire Size | Part Number | |
|---|---|---|
| ILR-M6-LT-1 | .50-.75 mm2 (20-18 AWG) | 8100-3639 |
| - | .50-2 mm2 (20-14 AWG) | 8100-1997 |
| ILR-M6-LT-2 | 3-5 mm2 (12-10 AWG) | 8100-1998 |
| Available stock: Aftermarket OEM | ||
ILR-M8
Interlocking Ring Terminals, M8
Series: Ring Terminals
Series: Ring Terminals
Commonly used as chassis grounds, these ring terminals interlock with each other as they are stacked.
- "Single stack" terminals will only lock with another terminal, and will always be either the top or bottom of the stack.
- A Single Left always starts at the bottom (against chassis). A Single Right is always the last (top of stack).
- Stacks are built up in a repeating Left - Right pattern, until a Single Right completes the stack.
- For additional grounds, "Double stack" terminals will lock with another terminal above and below it.
| Description | P/N | Wire size | Sumitomo | |
|---|---|---|---|---|
 | Single M8 Right | ILR-M8-R-1 | 0.75-2.0mm² | 18-14AWG | - |
| ILR-M8-R-2 | 3-5mm² | 12-10AWG | 8100-2001 | ||
| - | Double M8 Left | ILR-M8-DL-1 | .85-2.0mm² | 18-14AWG | - |
| ILR-M8-DL-2 | 3-5mm² | 12-10AWG | - | ||
| - | Double M8 Right | ILR-M8-DR-1 | .85-2.0mm² | 18-14AWG | - |
| ILR-M8-DR-2 | 3-5mm² | 12-10AWG | - | ||
 | Single M8 Left | ILR-M8-L-1 | 0.75-2.0mm² | 18-14AWG | - |
| ILR-M8-L-2 | 3-5mm² | 12-10AWG | - | ||
| Available stock: Aftermarket OEM | ||||
LA

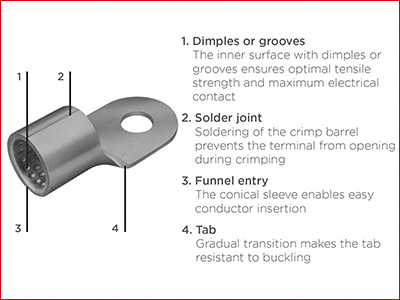

LA-Series Ring Terminals
Mfr: Various. This is an industry standard part to JIS specs.
Series: Ring Terminals
Note: Specs may vary depending on manufacturer.
Mfr: Various. This is an industry standard part to JIS specs.
Series: Ring Terminals

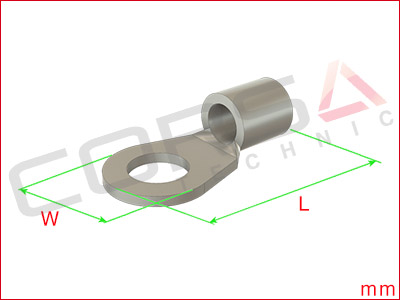

| JIS | Screw size | Wire size | Thickness | A | B | C |
|---|---|---|---|---|---|---|
| LA103 | M3 | 0.5-1.25mm² | 20-16AWG | 0.6 | 3.3 | 7 | 18.5 |
| LA203 | M3 | 2-3mm² | 14-12AWG | 0.8 | 3.3 | 7 | 20.5 |
| LA104 | M4 | 0.5-1.25mm² | 20-16AWG | 0.6 | 4.4 | 8 | 20 |
| LA204 | M4 | 2-3mm² | 14-12AWG | 0.8 | 4.4 | 8 | 22 |
| LA304 | M4 | 5-8mm² | 10-8AWG | 1.0 | 4.4 | 10 | 27 |
| LA105 | M5 | 0.5-1.25mm² | 20-16AWG | 0.6 | 5.4 | 10 | 22 |
| LA205 | M5 | 2-3mm² | 14-12AWG | 0.8 | 5.4 | 10 | 24 |
| LA305 | M5 | 5-8mm² | 10-8AWG | 1.0 | 5.4 | 10 | 27 |
| LA106 | M6 | 0.5-1.25mm² | 20-16AWG | 0.6 | 6.4 | 12 | 24 |
| LA206 | M6 | 2-3mm² | 14-12AWG | 0.8 | 6.4 | 12 | 26 |
| LA306 | M6 | 5-8mm² | 10-8AWG | 1.0 | 6.4 | 12 | 29 |
| LA108 | M8 | 0.5-1.25mm² | 20-16AWG | 0.6 | 8.4 | 16 | 28 |
| LA208 | M8 | 2-3mm² | 14-12AWG | 0.8 | 8.4 | 16 | 30 |
| LA308 | M8 | 5-8mm² | 10-8AWG | 1.0 | 8.4 | 16 | 33 |
| LA210 | M10 | 2-3mm² | 14-12AWG | 0.8 | 10.4 | 20 | 34 |
| LA310 | M10 | 5-8mm² | 10-8AWG | 1.0 | 10.4 | 20 | 37 |
| LA312 | M12 | 5-8mm² | 10-8AWG | 1.0 | 12.4 | 24 | 41 |
| JIS | Furukawa | Sumitomo | Yazaki | Other |
|---|---|---|---|---|
| LA103 | N/A | unk | 7009-1325 | - |
| LA203 | N/A | unk | 7009-1330 | - |
| LA104 | LA104 | 8110-1040 | 7009-1326 | - |
| LA104-2 (Tin plated) | LA104-2 | 8110-1042 | 7009-1326-02 | - |
| LA204 | N/A | - | 7009-1336 | - |
| LA304 | LA304 | - | 7009-1340 | - |
| LA105 | LA105 | 8110-1050 | 7009-1327 | - |
| LA205 | LA205 | 8110-2050 | 7009-1337 | Other |
| LA305 | LA305 | 8110-3050 | 7009-1341 | - |
| LA106 | LA106 | 8110-1060 | 7009-1323 | Other |
| LA206 | LA206 | 8110-2060 | 7009-1333 | Other |
| LA306 | LA306 | 8110-3060 | 7009-1342 | - |
| LA306-2 (Tin plated) | LA306-2 | 8110-3062 | 7009-1342-02 | - |
| LA108 | LA108 | 8110-1080 | 7009-1324 | Other |
| LA208 | LA208 | 8110-2080 | 7009-1334 | Other |
| LA308 | LA308 | 8110-3080 | 7009-1343 | - |
| LA210 | LA210 | - | 7009-1335 | Other |
| LA310 | LA310 | - | 7009-1344 | - |
| LA312 | N/A | - | 7009-1345 | - |
Highlighted part indicates currently stocked item.
