Pin Terminals

97 Items.  Showing Items 1 thru 50.
 1  2   Next »   Show All
BC35-1P  3.5mm Bullet Plug kit
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.

Kit Contents: 1 terminal and 1 insulator

Mating Part: BC35-1S, 2x fit in BC35-2S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-41 (terminal), B-3 (cover)
  • Honda 070MZ-0020100 (terminal)
QtyPrice
1-49$0.29
50-99$0.26
100-249$0.23
250-499$0.20
500-999$0.17
1000+$0.14
Quantity:  Kit

BC40-1P-A  4mm Bullet Plug kit
Note: This is not classified as a sealed connector. The sleeve function is to provide electrical insulation only.

Kit Contents: 1 terminal and 1 insulator

Mating Part: BC40-1S-A, 2x fit in BC40-2S, 3x fit in BC40-3S

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-1 (terminal), B-66 (cover)
  • KET ST750036-1, -2, ST750318-1, -2
  • KUM MT041-01200
  • TE 170002-4, -5 (loose: 170020-2, -3)
  • Yazaki 7113-1020, 7113-1021
QtyPrice
1-49$0.29
50-99$0.26
100-249$0.23
250-499$0.20
500-999$0.17
1000+$0.14
Quantity:  Kit

BC40-1P-B  4mm Sealed Bullet Plug kit
Waterproof with .85 mm² AV wire, insulation of 2.4-2.7mm dia.

Kit Contents: 1 terminal and 1 sleeve

OEM P/N: 7120-8013
Mating Part: BC40-1S-B, BC40-1S-B2

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KET ST750036-1, -2, ST750318-1, -2
  • KUM MT041-01200
  • TE 170002-4, -5 (loose: 170020-2, -3)
  • Yazaki 7113-1020, 7113-1021
QtyPrice
1-49$0.42
50-99$0.38
100-249$0.34
250-499$0.29
500-999$0.25
1000+$0.21
Quantity:  Kit

BC40-1P-C  4mm Sealed Bullet Plug kit
Waterproof with .5-1.25 mm² AV wire.

Kit Contents: 1 terminal and 1 sleeve

OEM P/N: 7230-5873
Mating Part: BC40-1S-C

spacer
General
  • Sealing:Matte Sealed
  • Number of Ways:1
  • Wire Size:0.30 - 1.25 mm2
  • Number of Rows:1
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Honda 32825-SA5-300 (cover), 07692-0010100 (terminal)
QtyPrice
1-49$0.58
50-99$0.52
100-249$0.46
250-499$0.41
500-999$0.35
1000+$0.29
Quantity:  Kit

040IIIU-PIN  040 III Unsealed Series Pin Contact

Mfr: Aftermarket Yazaki
Series: 040 III Unsealed Series
OEM P/N: 7114-4231-02
For 0.3-0.5 mm2 (22-20 AWG) wire

spacer
General
  • Sealing:Unsealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 0.50 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:3A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KET ST740771-3
  • Terminal used in Toyota 82998-12670 (PIN), 82998-12680 (PIN-Au) repair wire
QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.17
500-999$0.16
1000+$0.15
Quantity:  Ea

050U-PIN  050 Unsealed Pin Contact

Mfr: Sumitomo, Yazaki
Series: TS 050 Unsealed, TS 050+090 Hybrid, 050 Unsealed

Wire SizeSumitomoYazaki
050U-PIN.3-.5 mm2 (22-20 AWG)1500-01817114-1257-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:1.3mm (.050)
  • Wire Size:0.30 - 0.50 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:3A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KET ST740753-3
  • Terminal used in Toyota 82998-12410 repair wire
QtyPrice
1-49$0.14
50-99$0.13
100-249$0.12
250-499$0.11
500+$0.10
Quantity:  Ea

090II-PIN  090II Sealed Series Pin Contact

Mfr: Yazaki
Series: 090II Sealed Series, RK/090II Hybrid

Wire SizePlatingPart Number
090II-PIN1.3-.5 mm2 (22-20 AWG)Tin7114-4025
-Gold7114-4028-08
090II-PIN2.85-1.25 mm2 (18-16 AWG)Tin7114-4026
-Gold7114-4029-08
090II-PIN32.0 mm2 (14 AWG)Tin7114-4027
-GoldN/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
QtyPrice
1-49$0.21
50-99$0.20
100-249$0.19
250-499$0.18
500-999$0.17
1000-2499$0.16
2500+$0.15
Quantity:  Ea

090IIU-PIN  090II Unsealed Series Pin Contact

Mfr: Sumitomo, Yazaki
Series: TS 090 Unsealed, TS 050+090 Hybrid, 090II Unsealed Series, 090II+187 Hybrid Unsealed, 090II+312 Hybrid Unsealed

Wire SizePlatingSumitomoYazaki
-.22-.35 mm2 (24-22 AWG)Tin8230-4742-
-Gold--
090IIU-PIN1.3-.5 mm2 (22-20 AWG)Tin8230-44927114-4020
-Gold8100-13417114-4052-08
090IIU-PIN2.5-1.25 mm2 (20-16 AWG)Tin8230-45027114-4021
-Gold8100-13427114-4053-08
090IIU-PIN32.0 mm2 (14 AWG)Tin8230-45127114-4022
-Gold--
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.50 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Delphi/Aptiv 13627112
  • KET ST741101-3, ST740672-3, ST740673-3, ST740674-3
  • KUM MT091-61080, MT091-83180
  • Terminal used in Toyota 82998-12330, 82998-12350 (Gold plated) repair wire
QtyPrice
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500-999$0.12
1000+$0.11
Quantity:  Ea

250.FF-PIN1  250 FASTIN-FASTON Pin Contact

Mfr: Tyco/AMP
Series: FASTIN-FASTON Series

Wire SizePlatingPart Number
-.3-.85 mm2 (22-18 AWG)
2.16-3.18mm Insulation dia
Plain Brass62553-1
250.FF-PIN1Tin Plated62553-3
-.85-2.0 mm2 (18-14 AWG)
2.54-4.32mm Insulation dia
Plain Brass42460-1
250.FF-PIN2Tin Plated42460-2
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:12A
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.23
50-99$0.22
100-249$0.21
250-499$0.18
500+$0.16
Quantity:  Ea

250.FN-PIN  250 FASTON Pin Contact

Mfr: Tyco/AMP
Series: FASTON Series

Wire SizePlatingPart Number
250.FN-PIN1.3-.85 mm2 (22-18 AWG)Plain Brass42475-3
-Tin Plated42475-4
250.FN-PIN2.85-2.0 mm2 (18-14 AWG)Plain Brass42474-3
-Tin Plated42474-4
-2.0-3.0 mm2 (14-12 AWG)Plain BrassN/A
250.FN-PIN3Tin Plated61281-3
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.22 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000+$0.14
Quantity:  Ea

250.HL-PIN  250 Housing Lance Pin Contact

Mfr: AMP/TE, Sumitomo, Yazaki
Series: 250 Housing Lance, Multilock 070/250 Hybrid, 250 Waterproof Connector, ETN, 250 Armlock-Housing Lance, TIL, HD 250 Unsealed Series, HD 250+305 Hybrid Unsealed Series, CN(A) Plastic Lock-Arm

Wire SizePlatingAMP/TESumitomoYazaki
-.3 mm2 (22 AWG)Plain Brass-8230-4050-
-Tin-8230-4052-
250.HL-PIN1.3-.5 mm2 (22-20 AWG)Plain Brass170349-1-7114-2630
-Tin170349-2-7114-2630-02
-.5-2.0 mm2 (20-14 AWG)Plain Brass170340-18230-4040-
-Tin170340-38230-4042-
250.HL-PIN2.85-1.25 mm2 (18-16 AWG)Plain Brass---
-Tin---
-.85-2.0 mm2 (18-14 AWG)Plain Brass--7114-2631
-Tin--7114-2631-02
250.HL-PIN31.25-2.0 mm2 (16-14 AWG)Plain Brass---
-Tin---
-2.0-3.0 mm2 (14-12 AWG)Plain Brass170341-1--
-Tin170341-3--
250.HL-PIN43.0 mm2 (12 AWG)Plain Brass-8230-40607114-2632
-Tin-8230-40627114-2632-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • KUM MT021-03000, MT021-03200, MT021-03300
  • Terminal used in Toyota 82998-12050 (tin plated) repair wire
QtyPrice
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500-999$0.12
1000+$0.11
Quantity:  Ea

250.TL-PIN  250 Series Pin Contact

Mfr: Sumitomo, Yazaki
Series: 250 Armlock-Terminal Lance, 250 Lock series, 250 Special series, 250 LT Type, 250 Waterproof Connector, CN(A) Tang Type Terminal

Wire SizePlatingSumitomoYazaki
-.3 mm2 (22 AWG)Plain Brass8230-40307114-2023
-Tin8230-40127114-2023-02
250.TL-PIN1.5-2.0 mm2 (20-14 AWG)Plain Brass1800-20937114-2020
-Tin1800-20927114-2020-02
250.TL-PIN23.0 mm2 (12 AWG)Plain Brass1500-00487114-2021
-Tin1500-00497114-2021-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Hero B-9
  • Honda 07692-0010900
  • Suzuki 09900-28701-011 (brass)
QtyPrice
1-49$0.15
50-99$0.14
100-249$0.13
250-499$0.12
500-999$0.11
1000-2400$0.10
2500-4999$0.09
5000+$0.08
Quantity:  Ea

305.HL-PIN2  305 Housing Lance Pin Contact

Mfr: Sumitomo
Series: HD 250+305 Hybrid Unsealed Series

Wire SizeSumitomoYazaki
305.HL-PIN1.5-2.0 mm2 (20-14 AWG)8232-42207114-3190
305.HL-PIN23.0-5.0 mm2 (12-10 AWG)8232-42387114-3191
Available stock: Aftermarket OEM

spacer

spacer
  • Terminal used in Toyota 82998-12030 repair wire
QtyPrice
1-49$0.32
50-99$0.30
100-249$0.29
250-499$0.27
500-999$0.26
1000+$0.24
Quantity:  Ea

305.TL-PIN  305 Terminal Lance Pin Contact

Mfr: Aftermarket
Series: Sumitomo 305 Series - Terminal Lance, 305 Waterproof Connector, Yazaki 305 Series - Terminal Lance

Wire SizePlatingSumitomoYazaki
305.TL-PIN10.5-2.0 mm2 (20-14 AWG)Plain brass-7114-3040
-Tin-7114-3040-02
-0.5-5.0 mm2 (20-10 AWG)Plain brass8235-4050-
-Tin--
305.TL-PIN23.0-5.0 mm2 (12-10 AWG)Plain brass-7114-3030
-Tin-7114-3030-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:7.8mm (.305)
  • Wire Size:0.50 - 5.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:27A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Hero B-53 (size 1), B-55 (size 2)
  • KET ST740109-1, ST740109-3, ST740110-1, ST740110-3
  • KUM MT031-01230, MT031-01430
  • TE 170105-1
  • Toyota 82998-12010 repair wire terminal
QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.17
500+$0.16
Quantity:  Ea

58L/Y-PIN  58 Y Pin Contact

Mfr: Yazaki
Series: 58 L type, 58 Y type, YESC 1.5+58 Y Hybrid Sealed

Wire SizePlatingPart Number
58L/Y-PIN13 mm2 (12 AWG)Tin7114-3251
58L/Y-PIN25-8 mm2 (10-8 AWG)Tin7114-3250
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Mixed
  • Contact Size:9.5mm (.375)
  • Wire Size:3.00 - 8.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:40A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Ford 96FG-14421-YBA (PIN1)
  • Ford 93BG-14421-YCA (PIN2)
QtyPrice
1-49$0.80
50-99$0.76
100-249$0.72
250-499$0.64
500+$0.56
Quantity:  Ea

58M-PIN  58 M Unsealed Pin Contact

Mfr: Sumitomo, Yazaki
Series: Sumitomo: 58 M Unsealed, Yazaki: 58 M Unsealed

Wire SizeMaterialPlatingSumitomoYazaki
-.3-.5 mm2 (22-20 AWG)BrassNone1400-76487114-2870
58M-PIN1TinN/A7114-2870-02
-Copper alloyTin1400-98287114-2875
-.85-2.0 mm2 (18-14 AWG)BrassNone1401-76487114-2871
58M-PIN2TinN/A7114-2871-02
-Copper alloyTin1401-98287114-2876
-3.0 mm2 (12 AWG)BrassNone1402-76487114-2872
58M-PIN3TinN/A7114-2872-02
-Copper alloyTin1402-98287114-2877
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 5.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:25A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000+$0.13
Quantity:  Ea

58S-PIN  58 S Unsealed Pin Contact

Mfr: Sumitomo, Yazaki
Series: Sumitomo: 58 S Unsealed, Yazaki: 58 S Unsealed

Wire SizeMaterialPlatingSumitomoYazaki
-.3-.5 mm2 (22-20 AWG)BrassTinN/A7114-1230
-GoldN/A7114-1230-08
-Copper AlloyTinN/A7114-1238
58S-PIN1.3-.85 mm2 (22-18 AWG)BrassTin1400-0198N/A
-Copper AlloyTin1400-0302N/A
-.85-2.0 mm2 (18-14 AWG)BrassTinN/A7114-1231
-GoldN/A7114-1231-08
-Copper AlloyTinN/A7114-1239
58S-PIN21.25-2.0 mm2 (16-14 AWG)BrassTin1400-0199N/A
-Copper AlloyTin1400-0303N/A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000+$0.13
Quantity:  Ea

58W-PIN  58 W Sealed Pin Contact

Mfr: Sumitomo, Yazaki
Series: Sumitomo: 58 W Sealed, Yazaki: 58 W Sealed

Wire SizePlatingSumitomoYazaki
58W-PIN1.3-.85 mm2 (22-18 AWG)Tin1500-00977114-1232
-GoldN/A7114-1232-08
58W-PIN21.25-2.0 mm2 (16-14 AWG)Tin1500-00987114-1233
-GoldN/A7114-1233-08
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:10A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.17
50-99$0.16
100-249$0.15
250-499$0.14
500-999$0.13
1000+$0.12
Quantity:  Ea

58X-PIN  58 X Sealed Pin Contact

Mfr: Yazaki
Series: 58 X Sealed

Wire SizePlatingYazaki
-.5-1.25 mm2 (20-16 AWG)None7114-2873
58X-PIN1Tin7114-2873-02
-2.0-3.0 mm2 (14-12 AWG)None7114-2874
58X-PIN2Tin7114-2874-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:6.3mm (.250)
  • Wire Size:0.50 - 3.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.27
50-99$0.26
100-249$0.24
250-499$0.22
500-999$0.20
1000-2400$0.19
2500+$0.18
Quantity:  Ea

62Z-PIN1  62 Z-Type Pin Terminal

Mfr: Furukawa, Sumitomo, Yazaki
Series: 62 Z-Type, 62 Z-Type, 62 Z-Type

Wire SizePlatingFurukawaSumitomoYazaki
62Z-PIN1.2-.3 mm2 (24-22 AWG)TinMT091-330301400-04347114-1304
-GoldMT091-33060--
62Z-SKT2.5-.85 mm2 (20-18 AWG)TinMT091-338301400-04357114-1305
-GoldMT091-33860--
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.20 - 0.85 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:6A
Environmental
  • Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.23
50-99$0.22
100-249$0.21
250-499$0.18
500+$0.16
Quantity:  Ea

91A-PIN1  91 A-Type Pin Terminal

Mfr: Sumitomo, Yazaki
Series: 91 A-Type, 91 A-Type, 91 Hybrid Series

Wire SizePlatingKET P/NYazaki P/N
91A-PIN1.3-.5 mm2 (22-20 AWG)TinST740928-37114-1670-02
-GoldST740928-G7114-1670-08
91A-PIN20.85 mm2 (18 AWG)TinST740929-37114-1800-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:0.8mm (.030)
  • Wire Size:0.30 - 0.85 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.13
50-99$0.12
100-249$0.12
250-499$0.11
500-999$0.10
1000+$0.10
Quantity:  Ea

APEX.150-PIN  APEX 150 Series Pin Contact

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 150 Series

Wire SizePlatingPart Number (Aptiv p/n)
APEX.150-PIN1.35-.8 mm2 (22-20 AWG)Tin54002001 (13624759)
APEX.150-PIN2.75-1.0 mm2 (18-16 AWG)Tin54001626 (13630404)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 1.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:22A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.22
50-99$0.21
100-249$0.20
250-499$0.18
500+$0.15
Quantity:  Ea

APEX.28-PIN  APEX 2.8 Series Pin Contact

Mfr: OEM FCI (Delphi/Aptiv)
Series: APEX 2.8 Series

Wire SizePlatingPart Number (Aptiv p/n)
APEX.28-PIN1.3 mm2 (22 AWG)Tin54002201 (10762776)
-Gold54002228
APEX.28-PIN2.5-.85 mm2 (20-18 AWG)Tin54001801 (10762775)
-Gold54001804 (13805590)
APEX.28-PIN31.25-2.0 mm2 (16-14 AWG)Tin54001401 (10757692)
-Gold54001441 (13681974)
APEX.28-PIN43.0-5.0 mm2 (12-10 AWG)Tin54001001 (10762774)
-Gold54001020 (15512730)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Mixed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.30 - 6.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:40A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.65
50-99$0.62
100-249$0.58
250-499$0.55
500-999$0.52
1000+$0.49
Quantity:  Ea

CB01-PIN  CB01 Pin Terminal

Mfr: Sumiko Tec
Series: CB01

Wire SizePart Number
CB01-PIN10.08-0.33 mm2 (28-22 AWG)
1.60mm Max Insulation dia
CB01C5-010A
CB01-PIN20.33-0.52 mm2 (22-20 AWG)
1.70mm Max Insulation dia
CB01C5-020A
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:0.8mm (.030)
  • Wire Size:0.08 - 0.52 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Price: $0.24
Quantity:  Ea

DEU.12-PIN  Deutsch Size 12 Solid Pin Terminal

Mfr: Deutsch
Series: DTP

Wire SizePlatingPart Number
DEU.12-PIN2.0-3.0 mm2 (14-12 AWG)Nickel0460-204-12141
-AuGold0460-220-1231
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 12
  • Wire Size:2.00 - 3.00 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:25A
Environmental
  • Temp Range[2]:-55 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.51
50-99$0.48
100-249$0.46
250-499$0.41
500+$0.36
Quantity:  Ea

DEU.12SFC-PIN  Deutsch Size 12 Stamped & Formed Pin Terminal

Mfr: Deutsch
Series: DTP

Wire SizePlatingPart Number
DEU.12SFC-PIN12.0-4.0 mm2 (14-12 AWG)
2.87-4.47mm (.113-.176in) Insulation dia
Nickel1060-12-0166
-AuGold1060-12-0144
DEU.12SFC-PIN24.0-6.0 mm2 (10 AWG)
3.56-5.18mm (.140-.204in) Insulation dia
Nickel1060-12-0222
-AuGold1060-12-0244
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 12
  • Wire Size:2.00 - 6.00 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:25A
Environmental
  • Temp Range[2]:-55 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Qty% Off
50-99 5%
100-24910%
250-49920%
500+30%
Quantity:  Ea

DEU.16-PIN2  Deutsch Size 16 Solid Pin Terminal

Mfr: Deutsch
Series: DT

Wire SizePlatingPart Number
DEU.16-PIN1.50-1.5 mm2 (20-16 AWG)Nickel0460-202-16141
-AuGold0460-202-1631
DEU.16-PIN22.0 mm2 (14 AWG)Nickel0460-215-16141
-AuGold0460-215-1631
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.00 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:13A
Environmental
  • Temp Range[2]:-55 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.47
50-99$0.45
100-249$0.42
250-499$0.38
500+$0.33
Quantity:  Ea

DEU.16SFC-PIN  Deutsch Size 16 Stamped & Formed Pin Terminal

Mfr: Deutsch
Series: DT

Wire SizePlatingPart Number
DEU.16SFC-PIN10.50-1.0 mm2 (20-16 AWG)
1.40-2.54mm (.055-.100in) Insulation dia
Nickel1060-16-0622
-AuGold1060-16-0644
DEU.16SFC-PIN20.75-2.0 mm2 (18-14 AWG)
1.90-3.55mm (.075-.140in) Insulation dia
Nickel1060-16-0122
-AuGold1060-16-0144
DEU.16SFC-PIN30.75-2.0 mm2 (18-14 AWG)
2.41-3.81mm (.095-.150in) Insulation dia
Nickel1060-14-0122
-AuGold1060-14-0144
DEU.16SFC-PIN41.0-2.5 mm2 (16-12 AWG)
1.90-3.55mm (.075-.140in) Insulation dia
Nickel1060-16-1222
-AuGold1060-16-1244
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 16
  • Wire Size:0.50 - 2.50 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:13A
Environmental
  • Temp Range[2]:-55 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Qty% Off
50-99 5%
100-24910%
250-49920%
500+30%
Quantity:  Ea

DEU.20-PIN  Deutsch Size 20 Solid Pin Terminal

Mfr: Deutsch
Series: DTM

Wire SizePlatingPart Number
DEU.20-PIN1.22-.50 mm2 (24-20 AWG)Nickel0460-202-20141
-AuGold0460-202-2031
DEU.20-PIN2.75-1.0 mm2 (18-16 AWG)Nickel0460-010-20141
-AuGold0460-010-2031
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 20
  • Wire Size:0.22 - 1.00 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Closed barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:7.5A
Environmental
  • Temp Range[2]:-55 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Qty% Off
50-99 5%
100-24910%
250-49920%
500+30%
Quantity:  Ea

DEU.20SFC-PIN  Deutsch Size 20 Stamped & Formed Pin Terminal

Mfr: Deutsch
Series: DTM

Wire SizePlatingPart Number
DEU.20SFC-PIN10.35-1.5 mm2 (22-16 AWG)
1.30-2.16mm (.051-.085in) Insulation dia
Nickel1060-20-0222
-AuGold1060-20-0244
DEU.20SFC-PIN20.35-1.5 mm2 (22-16 AWG)
1.91-3.18mm (.075-.125in) Insulation dia
Nickel1060-20-0122
-AuGold1060-20-0144
DEU.20SFC-PIN31.0-2.5 mm2 (16-14 AWG)
1.91-3.18mm (.075-.125in) Insulation dia
Nickel1060-20-0622
-AuGold1060-20-0644
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:Size 20
  • Wire Size:0.35 - 2.50 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:7.5A
Environmental
  • Temp Range[2]:-55 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Qty% Off
50-99 5%
100-24910%
250-49920%
500+30%
Quantity:  Ea

DEW-PIN2  DEW Pin Terminal

Mfr: Aftermarket Furukawa
Series: DEW Series

Wire SizePlatingPart Number
DEW-PIN1.3 mm2 (22 AWG)TinMT091-98080 (alt p/n: DEWHM-0.2)
-GoldMT091-98060 (alt p/n: DEWHM-0.2-AU)
DEW-PIN2.5-.85 mm2 (20-18 AWG)TinMT091-98880 (alt p/n: DEWHM-0.5)
-GoldMT091-98860 (alt p/n: DEWHM-0.5-AU)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.2mm (.047)
  • Wire Size:0.30 - 0.85 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:5.5A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.17
500-999$0.16
1000-2499$0.15
2500+$0.14
Quantity:  Ea

DL040-PIN  DL 040 Sealed Series Pin Contact

Mfr: Sumitomo
Series: DL 040 Sealed Series

Wire SizePlatingPart Number
DL040-PIN1.3-.5 mm2 (22-20 AWG)Tin8100-2566
-Gold8100-2616
DL040-PIN2.75-1.25 mm2 (18-16 AWG)Tin8100-2567
-Gold8100-2615
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.21
50-99$0.20
100-249$0.19
250-499$0.18
500-999$0.17
1000-2499$0.16
2500+$0.15
Quantity:  Ea

EP-PIN  EP Series Pin Contact

Mfr: Aftermarket Yazaki
Series: EP Series
OEM P/N: 7114-1333
For 0.85-2.0mm2 (18-14 AWG) wire

spacer
General
  • Sealing:Unsealed
  • Contact Size:2.36mm dia.
  • Wire Size:0.85 - 2.00 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance

QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500+$0.14
Quantity:  Ea

FMT-PIN2  FMT Series Pin Contact

Mfr: Furukawa
Series: RFW Sealed Series

Wire SizeP/N
FMT-PIN1.3-.5 mm2 (22-20 AWG)FMT-M-030 (alt p/n: R010609)
FMT-PIN2.5-1.25 mm2 (20-16 AWG)FMT-M-125 (alt p/n: R010613)
FMT-PIN32.0 mm2 (14 AWG)FMT-M-200 (alt p/n: R010611)
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance

QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.17
500-999$0.16
1000+$0.15
Quantity:  Ea

GT150.45-PIN  GT-150 4.5mm CL Pin Contact

Mfr: Delphi
Series: GT-150 Sealed, 4.5mm CL series

Wire SizeP/N
GT150.45-PIN1.35-.5 mm2 (22-20 AWG)15326268
GT150.45-PIN2.75-1.0 mm2 (18 AWG)15326269
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 1.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:15A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000+$0.14
Quantity:  Ea

GT280-PIN1  GT 280 Sealed Pin Contact

Mfr: Delphi
Series: GT 280 Sealed series

Wire SizeP/N
GT280-PIN1.35-.5 mm2 (22-20 AWG)15304730
GT280-PIN2.75-1.0 mm2 (18 AWG)15304731
GT280-PIN31.5-3.0 mm2 (16-12 AWG)15304732
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 3.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:25A
Environmental
  • Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.17
500-999$0.16
1000+$0.15
Quantity:  Ea

HE040-PIN2  HE 040 Unsealed Series Pin Contact

Mfr: Sumitomo
Series: HE 040 Unsealed Series

Wire SizeP/N
HE040-PIN10.22-0.35 mm2 (24-22 AWG)8100-4307
HE040-PIN20.30-0.85 mm2 (22-18 AWG)8100-2972
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.22 - 0.85 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.20
50-99$0.19
100-249$0.18
250-499$0.17
500-999$0.16
1000+$0.15
Quantity:  Ea

HE050-PIN  HE 050 Series Pin Contact

Mfr: Sumitomo
Series: HB 050, HC 050, HE 050, HE 050+187 Hybrid

Wire SizeP/N
HE050-PIN1.3-.5 mm2 (22-20 AWG)8100-1462
HE050-PIN2.85 mm2 (18 AWG)8100-1461
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:1.3mm (.050)
  • Wire Size:0.30 - 0.85 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:9A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000+$0.14
Quantity:  Ea

HE090-PIN  HE 090 Unsealed Series Pin Contact

Mfr: Sumitomo
Series: HE 090 Unsealed Series, HE 090+187 Hybrid

Wire SizeP/N
HE090-PIN10.3-0.5 mm2 (22-20 AWG)8100-1571
HE090-PIN20.5-1.25 mm2 (20-16 AWG)8100-1573
HE090-PIN32.0 mm2 (14 AWG)8100-1572
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:2.3mm (.090)
  • Wire Size:0.30 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
Electrical
  • Current Rating[1]:22A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.23
50-99$0.22
100-249$0.21
250-499$0.20
500-999$0.19
1000+$0.18
Quantity:  Ea

HLC.060-PIN  HLC 060 Series Pin Contact

Mfr: Yazaki
Series: HLC 060 Series

Wire SizeP/N
HLC.060-PIN10.35-0.50 mm2 (22-20 AWG)7114-7386-02
HLC.060-PIN20.75-1.25 mm2 (18-16 AWG)7114-7387-02
HLC.060-PIN32.00 mm2 (14 AWG)7114-7388-02
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.35 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance

QtyPrice
1-49$0.19
50-99$0.18
100-249$0.17
250-499$0.16
500-999$0.15
1000+$0.14
Quantity:  Ea

HX040-PIN  HX 040, HV/HVG Series Pin Contact

Mfr: Sumitomo
Series: HX Sealed Hybrid Series, HX 040 Sealed Series, HV/HVG Sealed Series

Wire SizeP/N
HX040-PIN1.3-.5 mm2 (22-20 AWG)8100-3177
HX040-PIN2.75-1.25 mm2 (18-16 AWG)8100-3178
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

spacer
  • Honda 070PZ-Z6LA200
QtyPrice
1-49$0.18
50-99$0.17
100-249$0.16
250-499$0.15
500-999$0.14
1000-2499$0.13
2500-4999$0.12
5000+$0.11
Quantity:  Ea

HX040.JC-PIN  HX 040 Sealed Joint Connector Series Pin Contact

Mfr: Sumitomo
Series: HX 040 Sealed Joint Connector Series

Wire SizeP/N
HX040.JC-PIN1.3-.5 mm2 (22-20 AWG)8100-3508
HX040.JC-PIN2.75-1.25 mm2 (18-16 AWG)8100-3507
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 1.25 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:8A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.31
50-99$0.29
100-249$0.28
250-499$0.26
500-999$0.25
1000+$0.23
Quantity:  Ea

HX060-PIN  HX 060 Sealed Series Pin Contact

Mfr: Sumitomo
Series: HX 060 Sealed

Wire SizeP/N
HX060-PIN10.13-0.22 mm2 (26-24 AWG)8230-5306
HX060-PIN20.3-0.5 mm2 (22-20 AWG)8230-5307
HX060-PIN30.75-1.25 mm2 (18-16 AWG)8230-5308
HX060-PIN42.0 mm2 (14 AWG)8230-5309
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.5mm (.060)
  • Wire Size:0.13 - 2.00 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:12A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.17
50-99$0.16
100-249$0.15
250-499$0.14
500-999$0.13
1000-2499$0.12
2500-4999$0.11
5000+$0.10
Quantity:  Ea

ILAG5-PIN  IL-AG5 Series Pin Contact

Mfr: OEM JAE
Series: IL-AG5 Series, and used in IL-AG9 Series
OEM P/N: IL-AG5-PC1-5000
For .3-.85 mm2 (22-18 AWG) wire, with 1.4-2.4mm (.055-.094") insulation dia.

spacer
General
  • Sealing:Unsealed
  • Contact Size:0.64mm (.025)
  • Wire Size:0.30 - 0.85 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.15
50-99$0.14
100-249$0.14
250-499$0.12
500+$0.10
Quantity:  Ea

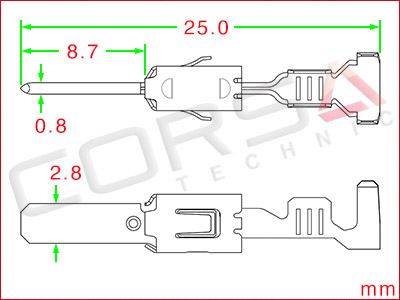

JPT-PIN  Junior Power Timer/Bosch Kompakt 1 Pin Contact

Mfr: Tyco/AMP
Series: Junior Power Timer Series and used in Bosch Jetronic, Kompakt 1 series

Wire SizeStripLoose
JPT-PIN1.2-.5 mm2 (24-20 AWG)1-965982-11-965983-1
JPT-PIN2.5-1.0 mm2 (20-18 AWG)1-962915-11-963748-1
JPT-PIN31.5-2.5 mm2 (16-14 AWG)1-962916-11-963749-1
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 2.50 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.49
50-99$0.48
100-249$0.47
250-499$0.44
500-999$0.43
1000-2499$0.41
2500-4999$0.39
5000-6999$0.37
7000+$0.34
Quantity:  Ea

JWPF-PIN  JWPF Pin Contact (26-22 AWG)

Mfr: OEM JST
Series: JWPF Series
OEM P/N: SWPT-001T-P025
For .13-.33 mm2 (26-22 AWG) wire

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:0.64mm (.025)
  • Wire Size:0.13 - 0.35 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:3A
Environmental
  • Temp Range[2]:-55 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Harley Davidson 69201164
QtyPrice
1-49$0.11
50-99$0.10
100-249$0.09
250-499$0.08
500-999$0.07
1000-2499$0.06
2500+$0.05
Quantity:  Ea

JWPS-PIN  JWPS Pin Contact (22-18 AWG)

Mfr: OEM JST
Series: JWPS Series
OEM P/N: SJWPST-21T-M1.0N
For .3-.85 mm2 (22-18 AWG) wire with 1.75-2.5mm (.068-.098in.) O.D. insulation.

spacer
General
  • Sealing:Matte Sealed
  • Contact Size:1.0mm (.040)
  • Wire Size:0.30 - 0.85 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:6A
Environmental
  • Temp Range[2]:-55 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.14
50-99$0.13
100-249$0.13
250-499$0.11
500+$0.10
Quantity:  Ea

LEMO-0B-0.7-PIN  0B Series 0.7mm Pin Contact

Mfr: OEM LEMO
Series: B Series
OEM P/N: FGG.0B.555.ZZC for 26-22 AWG

spacer
General
  • Sealing:Unsealed
  • Contact Size:.7mm dia.
  • Wire Size:0.14 - 0.34 mm2
Mechanical
  • Contact Type:Pin, circular
  • Termination:Closed barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:6A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

Price: $2.20
Quantity:  Ea

MCON.12LL-PIN  MCON 1.2 Locking Lance (LL) Sealed Pin Contact

Mfr: TE/AMP
Series: MCON 1.2 Locking Lance, also used in Hirschmann SealStar 1.2mm, Slimline 1.2mm

Wire SizePlatingPart Number
MCON.12LL-PIN1.13-.22 mm2 (26-24 AWG)Tin2141868-1
-Gold2141868-2
MCON.12LL-PIN2.25-.35 mm2 (24-22 AWG)Tin1718758-1
-Gold1718758-2
MCON.12LL-PIN3.5-.75 mm2 (20 AWG)Tin1718760-1
-Gold1718760-2
MCON.12LL-PIN41-1.5 mm2 (18-16 AWG)Tin1718762-1
-Gold1718762-2
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:1.2mm (.047)
  • Wire Size:0.13 - 1.50 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:17A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice
1-49$0.26
50-99$0.25
100-249$0.23
250-499$0.22
500+$0.21
Quantity:  Ea

MIC.MK2-PIN  Multiple Interlock Connectors (MIC) Mk-II Pin Contact

Mfr: Tyco/AMP
Series: Multiple Interlock Connectors (MIC) Mk-II

Part Number
Wire SizeMaterialPlatingStripLoose
MIC.MK2-PIN1.3-.89 mm2 (22-18 AWG),
1.5-2.6 mm insulation dia
BrassTin172779-1172780-1
-Gold172779-2172780-2
-Ph. bronzeTin172779-4172780-4
MIC.MK2-PIN2.5-2.27 mm2 (20-14 AWG),
2.1-3.4 mm insulation dia
BrassTin172777-1172778-1
-Gold172777-2172778-2
-Ph. bronzeTin172777-4172778-4
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Unsealed
  • Contact Size:3.0mm (.118)
  • Wire Size:0.30 - 2.27 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
Electrical
  • Current Rating[1]:25A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.

QtyPrice
1-49$0.14
50-99$0.13
100-249$0.12
250-499$0.11
500+$0.10
Quantity:  Ea

97 Items.  Showing Items 1 thru 50.
 1  2   Next »   Show All

Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2025 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1
R7A4
R7A3
R7A2
