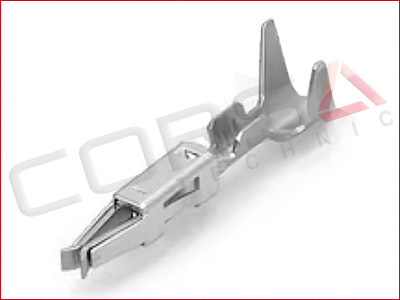

MTII.SWS-SKT2Micro Timer II Series SWS Socket Contact
Images shown may represent a range of products or be for illustration purposes only.
Receptacle Contacts with Single Wire Sealing System
| Wire Size | Strip | Loose | |
|---|---|---|---|
| MTII.SWS-SKT1 | .2-.5 mm2 (22-20 AWG) | 962875-2 | 963710-2 |
| MTII.SWS-SKT2 | .5-1.0 mm2 (20-18 AWG) | 962876-2 | 963711-2 |
| MTII.SWS-SKT3 | 1.5 mm2 (16 AWG) | 1703414-1 | 1703415-1 |
| Available stock: Aftermarket OEM | |||
Documents
Drawing (C-962875_N7.pdf)Specifications
General
- Sealing:Single Wire Sealed
- Contact Size:1.6mm (.063)
- Wire Size:0.20 - 1.50 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
