Name: TH163
Price: 186.97 USD
Availability: InStock

TH163

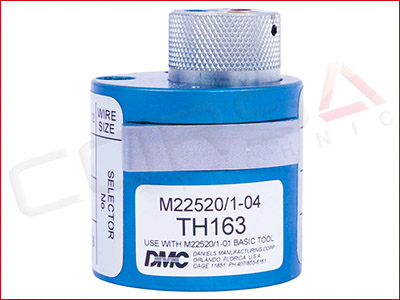

M22520/1-04 Size 20, 16, 12 Contact Positioner

Images shown may represent a range of products or be for illustration purposes only.

OEM P/N:TH163

For use with the following contacts:

Turret	Contacts
RED	Deutsch AS size 20 pin 38941-20 Deutsch AS size 20 socket 38943-20 Souriau 8STA size 20 pin 8599-0703 SA Souriau 8STA size 20 socket 8599-0707 900 M39029/56-351 M39029/57-357 M39029/58-363 M39029/106-615 M39029/107-621 M39029/117-634 M39029/117-640 M39029/118-646 M39029/118-652 M39029/121-665 M39029/122-672
BLUE	Deutsch AS size 16 pin 38941-16 Deutsch AS size 16 socket 38943-16 Souriau 8STA size 16 pin 8599-0704 MJ Souriau 8STA size 16 socket 8599-0708 900 M39029/56-352 M39029/57-358 M39029/58-364 M39029/106-616 M39029/107-622 M39029/117-635 M39029/117-641 M39029/118-647 M39029/118-653 M39029/121-666 M39029/122-673
YELLOW	Souriau 8STA size 12 pin 8599-0705 MJ Souriau 8STA size 12 socket 8599-0709 900 M39029/56-353 M39029/57-359 M39029/58-365 M39029/106-617 M39029/107-623 M39029/117-636 M39029/117-642 M39029/118-648 M39029/118-654 M39029/121-667 M39029/122-674

Qualified to AS22520/1
