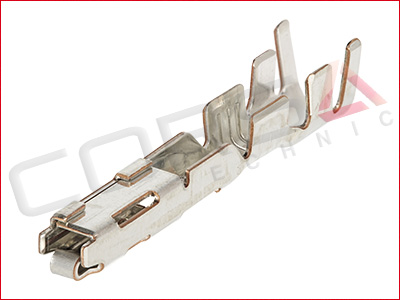

PLC-SKT2
Pulse Lock Connector Socket Contact
Images shown may represent a range of products or be for illustration purposes only.
| Wire Size | Plating | Strip | Loose | |
|---|---|---|---|---|
| PLC-SKT1 | .3-.5 mm2 (22-20 AWG) wire 1.5-2.3mm Insulation dia | Tin | 170352-1 | 172771-1 |
| - | Gold | 170352-2 | 172771-2 | |
| PLC-SKT2 | .5-1.25 mm2 (20-16 AWG) wire 2.1-2.8mm Insulation dia | Tin | 170353-1 | 172772-1 |
| - | Gold | 170353-2 | 172772-2 | |
| Available stock: Aftermarket OEM | ||||
Documents
Drawing (C-170353_B1.pdf)Specifications
General
- Sealing:Unsealed
- Contact Size:1.5mm (.060)
- Wire Size:0.30 - 1.25 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:18.5A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Cross Reference List
- Terminal used in Toyota 82998-12200 (Power) repair wire
- Terminal used in Toyota 82998-12210 (Signal) repair wire
