JPT.STD-SKT

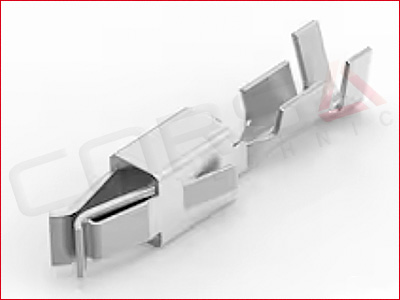

Junior Power Timer - Standard Socket Contact
Images shown may represent a range of products or be for illustration purposes only.
Standard Receptacle Contacts (Length 18.8 mm)
NOTE: Standard contacts are unsealed
| Wire Size | Strip | Loose | |
|---|---|---|---|
| JPT.STD-SKT1 | .2-.5 mm2 (24-20 AWG) | 927774-3 | 927776-3 |
| JPT.STD-SKT2 | .5-1.0 mm2 (20-18 AWG) | 927771-3 | 927779-3 |
| JPT.STD-SKT3 | 1.5-2.5 mm2 (16-14 AWG) | 927768-3 | 927777-3 |
| Available stock: Aftermarket OEM | |||
Documents
Drawing (1355046_A17.pdf)Specifications
General
- Sealing:Unsealed
- Contact Size:2.8mm (.110)
- Wire Size:0.20 - 2.50 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
