JPT.STD-2S
2-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

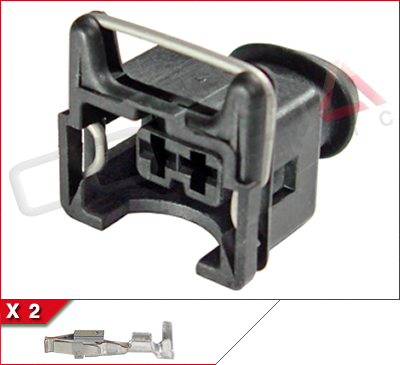

Kit Contents:
Housing, 2 socket contacts
Mfr:Tyco/AMP
Series:Junior Power Timer - Standard Series
OEM P/N:828657-3
Part Name:2P JUNIOR-TIMER GEH
Mating Part:JPT-2P
NOTE: Standard series are unsealed at the terminal cavity, and rely on a boot for sealing.
Documents
3D STEP (828657-3_O-3d_stp.zip)
Drawing (C-828657_A3.pdf)Specifications
General
- Sealing:Unsealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.20 - 2.50 mm2
- Number of Rows:1
- Pitch:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PA66+GF30
- Seal Material:Neoprene
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:30A
Environmental
- Temp Range[2]:-40 - 130 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
