110.FF-SKT

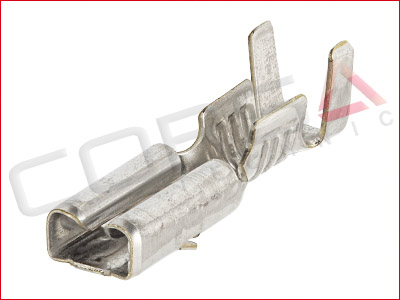

110 FASTIN-FASTON Socket Contact
Images shown may represent a range of products or be for illustration purposes only.
| Wire Size | Plating | Part Number | |
|---|---|---|---|
| 110.FF-SKT | .5-1.0 mm2 (20-18 AWG) 1.4-2.3mm Insulation dia | Tin Plated | 160864-2 |
| Available stock: Aftermarket OEM | |||
Specifications
General
- Sealing:Unsealed
- Contact Size:2.8mm (.110)
- Wire Size:0.50 - 1.00 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
Electrical
- Current Rating[1]:11A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
