91MLC-4S-24-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

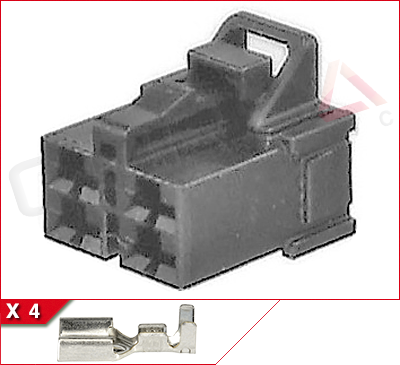

Kit Contents:
Housing, 4 socket contacts
Mfr:OEM Yazaki
Series:91 M-LC Unsealed
OEM P/N:7123-6346-30
Part Name:M04FB-LC
Mating Part:7122-6346-30
Documents
Drawing (7123-6346-30.pdf)Specifications
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:2
- Pitch:11.2mm
- Row Spacing:5.5mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
Environmental
- Temp Range[2]:-40 - 100 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
