MLC040II.PM-28S
28-Way Kit
Images shown may represent a range of products or be for illustration purposes only.
Kit Contents:

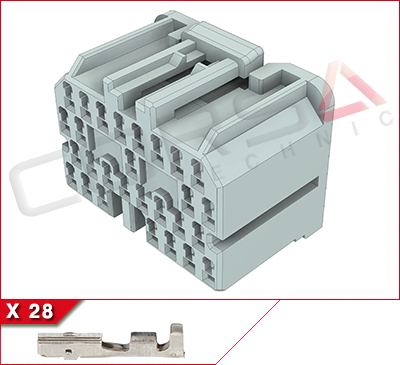

Housing, 28x 040 size terminals
Mfr:AMP/TE
Series:Multilock .040 II Pair Mate Series
OEM P/N:316019-6 (ss: 178200-6)
Part Name:040 PAIR MATE PLUG HSG ASY 28P
Mating Part:MLC040II.PM-100P
Documents
3D STEP (316019-6_A-3d_stp.zip)
Drawing (C-316019_A1.pdf)

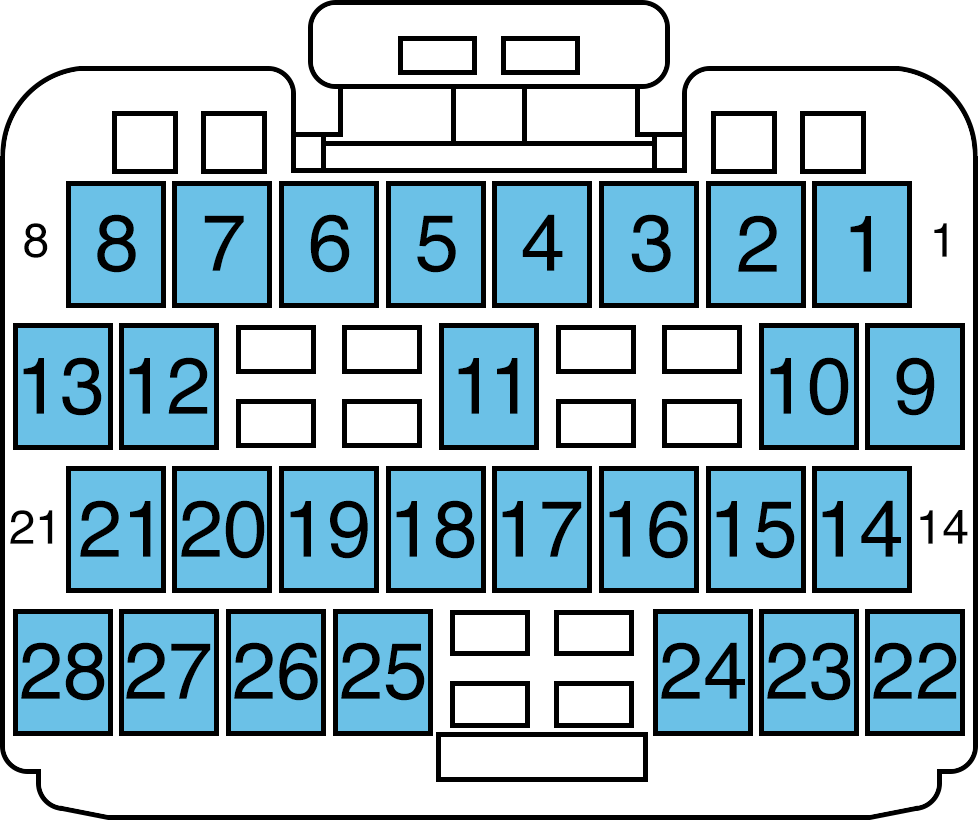

Rearview Pinout (MLC040II_PM-28S.png)Specifications
General
- Sealing:Unsealed
- Number of Ways:28
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:4
- Pitch:3.6mm
- Row Spacing:4.8mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:19A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
