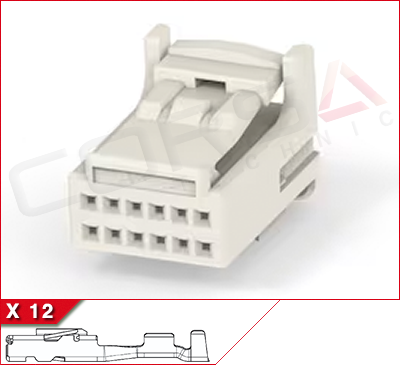

MLC025-12S-1
12-Way Kit
Images shown may represent a range of products or be for illustration purposes only.
Kit Contents:
Housing, 12 socket contacts for 24-20 AWG wire
Mfr:OEM AMP/TE
Series:Multilock 025 Series (Terminal Lance)
OEM P/N:1318774-1
Part Name:025 ECU PLUG HSG ASSY 12P
Mating Part:1565894-1,1318772-2
Documents
3D STEP (1318774-1_B-3d_stp.zip)
Drawing (C-1318774_C3.pdf)Specifications
General
- Sealing:Unsealed
- Number of Ways:12
- Contact Size:0.64mm (.025)
- Wire Size:0.22 - 0.50 mm2
- Number of Rows:2
- Pitch:2.2mm
- Row Spacing:3.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Terminal Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:2.2A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Cross Reference List
- Toyota 90980-12183
