250.ET-PIN2

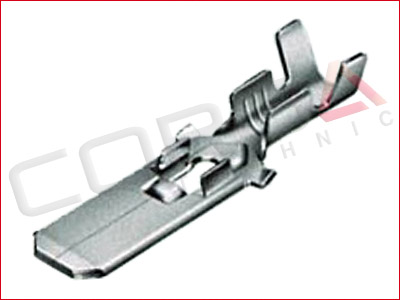

250 Housing Lance Pin Contact
Images shown may represent a range of products or be for illustration purposes only.
| Wire Size | Plating | Sumitomo | Yazaki | |
|---|---|---|---|---|
| - | .3 mm2 (22 AWG) | Plain Brass | 1500-0083 | - |
| 250.ET-PIN1 | .3-.5 mm2 (22-20 AWG) | Plain Brass | - | 7114-2250 |
| - | Tin | - | 7114-2250-02 | |
| - | .5-2.0 mm2 (20-14 AWG) | Plain Brass | 1500-0084 | - |
| 250.ET-PIN2 | .85-2.0 mm2 (18-14 AWG) | Plain Brass | - | 7114-2251 |
| - | Tin | - | 7114-2251-02 | |
| 250.ET-PIN3 | 3.0 mm2 (12 AWG) | Plain Brass | 1500-0085 | 7114-2252 |
| - | Tin | - | 7114-2252-02 | |
| Available stock: Aftermarket OEM | ||||
Documents
Drawing, size 2-3, Sumitomo (S-5847_6.pdf)Specifications
General
- Sealing:Unsealed
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
