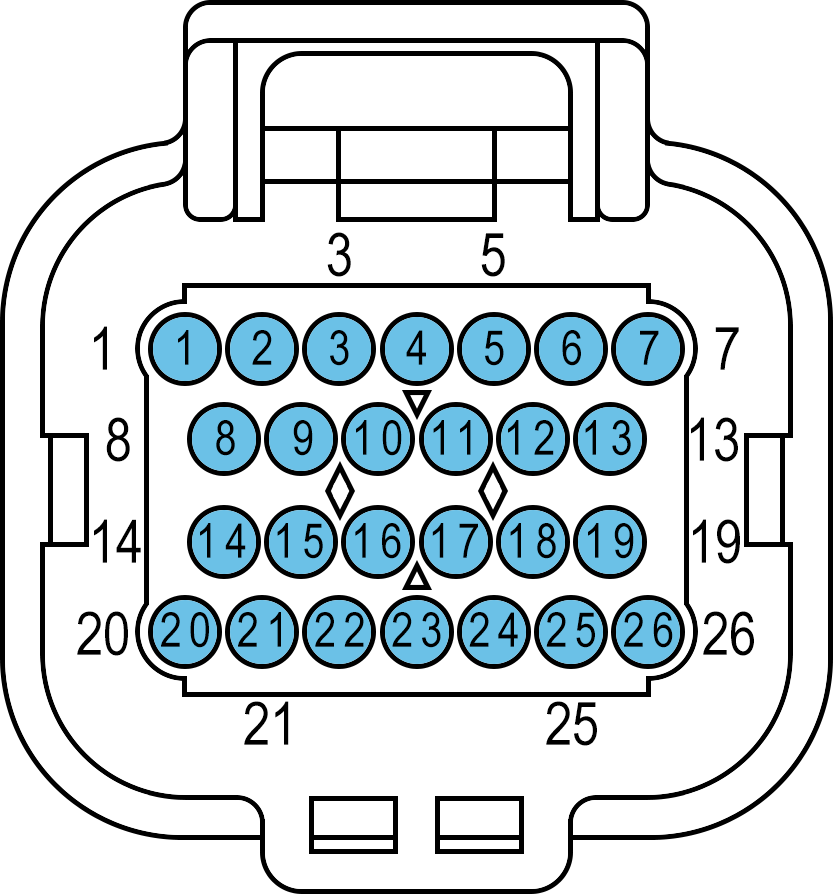

SS10-26S-1
26-Way Kit (Keying 1)
Images shown may represent a range of products or be for illustration purposes only.
Kit Contents:
Housing, 26 socket contacts
Mfr:OEM Tyco/AMP
Series:Superseal 1.0 Series
OEM P/N:3-1437290-7
Keying:1
Mating Part:SS10-26P-1 and SS10-60P-1
Specifications
General
- Sealing:Matte Sealed
- Number of Ways:26
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:4
- Pitch:3.0mm
- Row Spacing:Multiple
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Housing Material:PET
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:15A
- Voltage Rating:250V (AC, DC)
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Application List
- Ducati 749, 848, 999, 1098, 1098R, 1198, Desmosedici dash (harness side)
- GSXR1300 Hayabusa ECU (99'-07')
- YZF-R1 ECU (07'-08')
- YZF-R6 ECU (06'-14')
- ZX-10R ECU (04'-05')
- Motec ECU's: M84, M400, M600, M800, and M1 series M130, M142, M150
- Motec Power Distribution Module's: PDM15, PDM30
- Motec Expansion box E888
- DTAfast ECU's: S60, S80, S100
- Haltech ECU's
- Link ECU's
Cross Reference List
- KTM 000700000AO
