Home ▹ Connectors ▹ By Manufacturer ▹ Tyco/AMP (TE Connectivity) ▹ Junior Power Timer Series

Junior Power Timer Series

2-way Kit
JPT-2P
2-way Kit
OEM P/N: 106462-1
View Item
JPT-2P  2-way Kit
Kit Contents: Housing, 2 pin contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 106462-1
Part Name: 2P.FASTIN-ON HSG
Mating Part: JPT-2S-B, JPT-2S-C, JPT.STD-2S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.20 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-30 - 125 °C
  • Protection Rating:IP54
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$3.11
6-19$2.95
20-49$2.80
50-99$2.64
100-249$2.49
250-499$2.33
500+$2.18
Quantity:  Kit

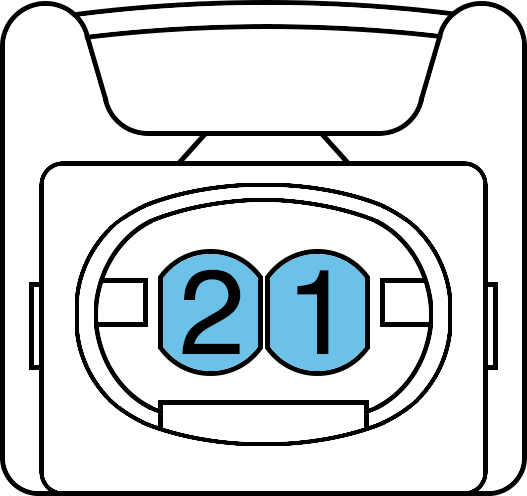

2-way Kit
JPT-2S-B
2-way Kit
OEM P/N: 282189-1
View Item
JPT-2S-B  2-way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 282189-1
Part Name: SPLASH PROOF CONN. W.S.L.
Mating Part: JPT-2P
With secondary locking device

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-30 - 125 °C
  • Protection Rating:IP54
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • EV1/Jetronic type injectors
spacer
  • Ford AU2Z-14S411-BEA, WPT-1107 (Silver plated terminals) pigtail connector
QtyPrice (USD)
1-5$3.02
6-19$2.87
20-49$2.72
50-99$2.57
100-249$2.42
250-499$2.27
500+$2.11
Quantity:  Kit

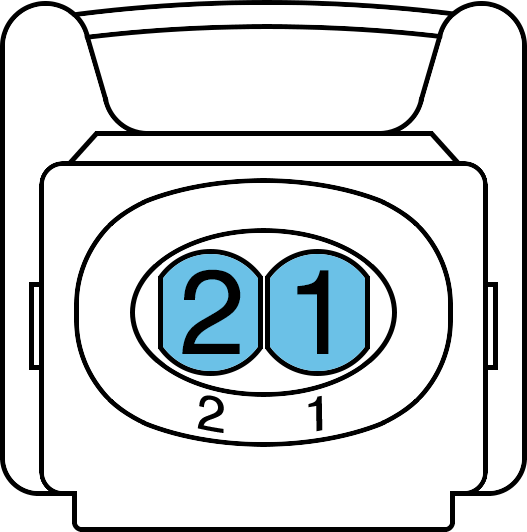

2-way Kit
JPT-2S-C
2-way Kit
OEM P/N: 963040-3, supersedes 962069-3
View Item
JPT-2S-C  2-way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 963040-3, supersedes 962069-3
Part Name: 2P JUN-TIMER GEH
Mating Part: JPT-2P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PBT+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-30 - 125 °C
  • Protection Rating:IP54
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • EV1/Jetronic type injectors
spacer
  • Mopar 68032285AA repair kit connector
QtyPrice (USD)
1-5$2.82
6-19$2.68
20-49$2.54
50-99$2.40
100-249$2.26
250-499$2.11
500+$1.97
Quantity:  Kit

3-Way Kit
JPT-3P
3-Way Kit
OEM P/N: 1-962581-2, ss: 1-962581-1
View Item
JPT-3P  3-Way Kit
Kit Contents: Housing, 3 pin contacts, 3 seals

Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 1-962581-2, ss: 1-962581-1
Part Name: FLACHST-GH2,8 EDS3P
Mating Part: JPT-3S

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.20 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66+GF
  • Mounting Style:Free hanging
  • TPA:No
  • CPA:No
Electrical
  • Current Rating[1]:20A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-40 - 120 °C
  • Protection Rating:IPX4A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • BMW 12.52.1.732.564 (12521732564), 1732564-01
QtyPrice (USD)
1-5$3.63
6-19$3.45
20-49$3.27
50-99$3.09
100+$2.90
Quantity:  Kit

3-way Kit
JPT-3S
3-way Kit
OEM P/N: 282191-1
View Item
JPT-3S  3-way Kit
Kit Contents: Housing, 3 socket contacts, 3 seals

Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 282191-1
Part Name: SPLASH PROOF CONN. W.S.L.
Mating Part: JPT-3P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:3
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-30 - 125 °C
  • Protection Rating:IP54
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Mopar 68364279AA repair kit connector
QtyPrice (USD)
1-5$4.34
6-19$4.04
20-49$3.69
50-99$3.47
100+$3.25
Quantity:  Kit

4-way Kit
JPT-4S
4-way Kit
OEM P/N: 282192-1
View Item
JPT-4S  4-way Kit
Kit Contents: Housing, 4 socket contacts, 4 seals

Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 282192-1
Part Name: SPLASH PROOF CONN. W.S.L.

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:4
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66+GF
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-30 - 125 °C
  • Protection Rating:IP54
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • KTM 000700000EW
QtyPrice (USD)
1-5$3.52
6-19$3.27
20-49$2.99
50-99$2.82
100+$2.64
Quantity:  Kit

5-way Kit
JPT-5S
5-way Kit
OEM P/N: 282193-1
View Item
JPT-5S  5-way Kit
Kit Contents: Housing, 5 socket contacts, 5 seals

Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 282193-1
Part Name: SPLASH PROOF CONN. W.S.L.

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:5
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-30 - 125 °C
  • Protection Rating:IP54
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$4.70
6-19$4.37
20-49$4.00
50-99$3.76
100+$3.53
Quantity:  Kit

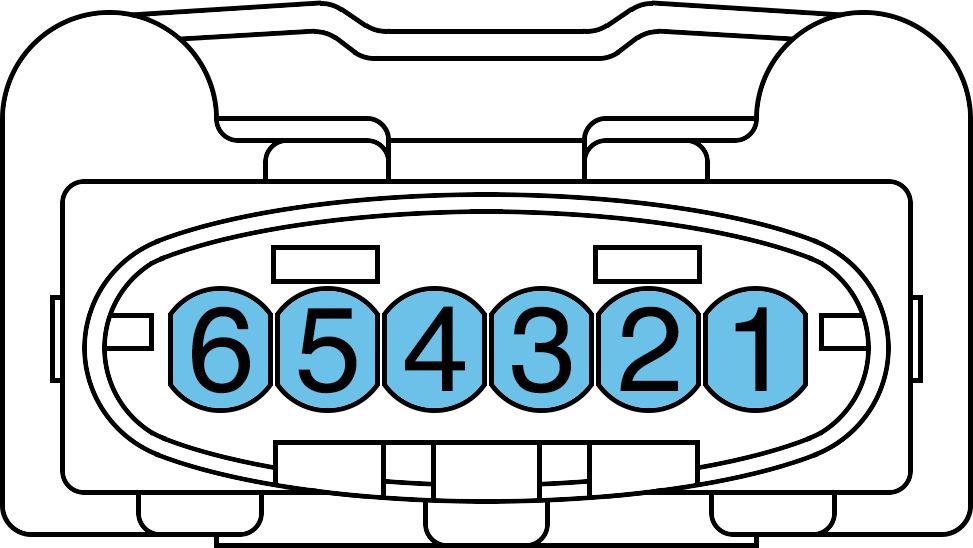

6-way Kit
JPT-6S
6-way Kit
OEM P/N: 282236-1
View Item
JPT-6S  6-way Kit
Kit Contents: Housing, 6 socket contacts, 6 seals

Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 282236-1
Part Name: SPLASH PROOF CONN.W.S.L.
Mating Part: N/A, device only

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:6
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-30 - 125 °C
  • Protection Rating:IP54
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$6.39
6-19$6.07
20-49$5.75
50-99$5.43
100+$5.11
Quantity:  Kit

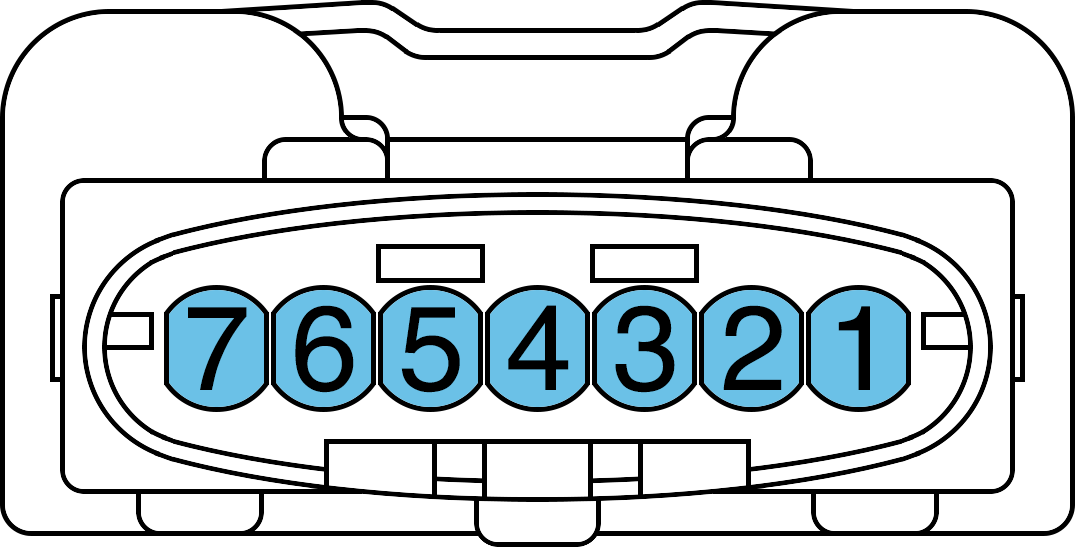

7-way Kit
JPT-7S
7-way Kit
OEM P/N: 282194-1, black
View Item
JPT-7S  7-way Kit
Kit Contents: Housing, 7 socket contacts, 7 seals

Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 282194-1, black
Part Name: SPLASH PROOF CONN. W.S.L.
Mating Part: N/A, but compatible with JPTA-7P

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:7
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA66
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
  • Voltage Rating:24V DC
Environmental
  • Temp Range[2]:-30 - 125 °C
  • Protection Rating:IP54
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$6.29
6-19$5.98
20-49$5.66
50-99$5.35
100+$5.03
Quantity:  Kit

2-Way Kit
JPTA-2S
2-Way Kit
OEM P/N: 493989-1
View Item
JPTA-2S  2-Way Kit
Kit Contents: Housing, 2 socket contacts, 2 seals

Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 493989-1
Part Name: HSG, 2 POSN. JPT ASSY

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:2
  • Contact Size:2.8mm (.110)
  • Wire Size:0.20 - 2.50 mm2
  • Number of Rows:1
  • Pitch:6.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PBT
  • Seal Material:Silicone Rubber
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 130 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • VW 1J0 973 722
QtyPrice (USD)
1-5$3.53
6-19$3.35
20-49$3.18
50-99$3.00
100+$2.82
Quantity:  Kit

7-Way Kit
JPTA-7P
7-Way Kit
OEM P/N: 444211-1
View Item
JPTA-7P  7-Way Kit
Kit Contents: Housing, tpa, 7 pin contacts for 20-18 AWG, 7 seals

Mfr: Aftermarket Tyco/AMP
Series: Junior Power Timer Series
OEM P/N: 444211-1
Part Name: 7 POS JPT TAB. ASSY
Mating Part: 444212-1

spacer
General
  • Sealing:Single Wire Sealed
  • Number of Ways:7
  • Contact Size:2.8mm (.110)
  • Wire Size:0.20 - 2.50 mm2
  • Number of Rows:1
  • Pitch:5.0mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
  • Housing Material:PA6
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
Environmental
  • Temp Range[2]:-30 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-5$5.43
6-19$5.16
20-49$4.89
50-99$4.62
100+$4.34
Quantity:  Kit

Junior Power Timer/Bosch Kompakt 1 Pin Contact
JPT-PIN
Junior Power Timer/Bosch Kompakt 1 Pin Contact
View Item
JPT-PIN  Junior Power Timer/Bosch Kompakt 1 Pin Contact

Mfr: Tyco/AMP
Series: Junior Power Timer Series and used in Bosch Jetronic, Kompakt 1 series

Wire SizeStripLoose
JPT-PIN1.2-.5 mm2 (24-20 AWG)1-965982-11-965983-1
JPT-PIN2.5-1.0 mm2 (20-18 AWG)1-962915-11-963748-1
JPT-PIN31.5-2.5 mm2 (16-14 AWG)1-962916-11-963749-1
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 2.50 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.49
50-99$0.48
100-249$0.47
250-499$0.44
500-999$0.43
1000-2499$0.41
2500-4999$0.39
5000-6999$0.37
7000+$0.34
Quantity:  Ea

Junior Power Timer/Bosch Kompakt 1 Socket Contact
JPT-SKT
Junior Power Timer/Bosch Kompakt 1 Socket Contact
View Item
JPT-SKT  Junior Power Timer/Bosch Kompakt 1 Socket Contact

Mfr: Tyco/AMP
Series: Junior Power Timer Series and used in Bosch Jetronic, Kompakt 1 series
Receptacle Contacts with Single Wire Sealing System (Length 21.0 mm)

Wire SizeStripLoose
JPT-SKT1.35-.5 mm2 (22-20 AWG)929941-3929942-3
JPT-SKT2.5-1.0 mm2 (20-18 AWG)929939-3929940-3
JPT-SKT31.5-2.5 mm2 (16-14 AWG)929937-3929938-3
Available stock: Aftermarket OEM
NOTE: Not applicable to Bosch Kompakt 1.1 connectors, which use BDK terminals. Unsure which you need? The rear of the connector body states which you need to use, as JPT or B.K

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.35 - 2.50 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.25
50-99$0.24
100-249$0.23
250-499$0.22
500-999$0.21
1000-2499$0.20
2500+$0.19
Quantity:  Ea

Junior Power Timer Pin Contact (Type A)
JPTA.SWS-PIN2
Junior Power Timer Pin Contact (Type A)
View Item
JPTA.SWS-PIN2  Junior Power Timer Pin Contact (Type A)

Mfr: Tyco/AMP
Series: Junior Power Timer Series, and used in FEP 2.8 Sealed, Audi/VW 2.8 Tab
Tab Contacts with Modified Spring and Single Wire Sealing System

Wire SizeStripLoose
JPTA.SWS-PIN1.2-.5 mm2 (24-20 AWG)2-964298-12-964297-1
JPTA.SWS-PIN2.5-1.0 mm2 (20-18 AWG)2-964300-12-964299-1
JPTA.SWS-PIN31.25-2.5 mm2 (16-14 AWG)2-964302-12-964301-1
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.20 - 2.50 mm2
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.32
50-99$0.30
100-249$0.29
250-499$0.26
500+$0.22
Quantity:  Ea

Junior Power Timer Socket Contact (Type A)
JPTA.SWS-SKT
Junior Power Timer Socket Contact (Type A)
View Item
JPTA.SWS-SKT  Junior Power Timer Socket Contact (Type A)

Mfr: Tyco/AMP
Series: Junior Power Timer Series, and used in FEP 2.8 Sealed, Audi/VW 2.8 Tab
Receptacle Contacts with Modified Spring and Single Wire Sealing System (Length 19.6 mm)

Wire SizeStripLoose
JPTA.SWS-SKT1.2-.5 mm2 (24-20 AWG)964282-2964281-2
JPTA.SWS-SKT2.5-1.0 mm2 (20-18 AWG)964286-2964285-2
JPTA.SWS-SKT31.5-2.5 mm2 (16-14 AWG)964273-2964287-2
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
  • Contact Size:2.8mm (.110)
  • Wire Size:0.20 - 2.50 mm2
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Terminal Lance
Electrical
  • Current Rating[1]:30A
Environmental
  • Temp Range[2]:-40 - 150 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.25
50-99$0.24
100-249$0.23
250-499$0.21
500-999$0.20
1000-2499$0.19
2500+$0.17
Quantity:  Ea

Junior Power Timer/Bosch Kompakt 1 Seal Plug
JPT-PG
Junior Power Timer/Bosch Kompakt 1 Seal Plug
OEM P/N: 828922-1
View Item
JPT-PG  Junior Power Timer/Bosch Kompakt 1 Seal Plug

Mfr: OEM Tyco/AMP
Series: Junior Power Timer Series and used in Bosch Jetronic, Kompakt 1 series
OEM P/N: 828922-1
NOTE: Not applicable to Bosch Kompakt 1.1 connectors, which use BDK components. Unsure which you need? The rear of the connector body states which you need to use, as JPT or B.K

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber
Environmental
  • Temp Range[2]:-40 - 150 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Porsche 999.652.811.40
QtyPrice (USD)
1-49$0.10
50-99$0.09
100-249$0.08
250-499$0.07
500+$0.06
Quantity:  Ea

Junior Power Timer/Bosch Kompakt 1 Seals
JPT-SL
Junior Power Timer/Bosch Kompakt 1 Seals
View Item
JPT-SL  Junior Power Timer/Bosch Kompakt 1 Seals

Mfr: Tyco/AMP
Series: Junior Power Timer Series, MCP 2.8 Sealed, Power Distribution Boxes and used in Bosch Jetronic, Kompakt 1 series

Wire Insulation Dia.ColorPart Number
JPT-SL11.2-2.1 mm (.047-.083 in)Blue828904-1
JPT-SL22.2-3.0 mm (.086-.118 in)White828905-1
Available stock: Aftermarket OEM
NOTE: Not applicable to Bosch Kompakt 1.1 connectors, which use BDK components. Unsure which you need? The rear of the connector body states which you need to use, as JPT or B.K

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber
Environmental
  • Temp Range[2]:-40 - 150 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

spacer
  • Porsche 999.704.161.40 (SL1)
QtyPrice (USD)
1-49$0.14
50-99$0.13
100-249$0.12
250-499$0.11
500-999$0.10
1000-2499$0.09
2500-4999$0.08
5000-24999$0.07
25000-49999$0.06
50000+$0.05
Quantity:  Ea

Junior Power Timer Seals (Type A)
JPTA-SL
Junior Power Timer Seals (Type A)
View Item
JPTA-SL  Junior Power Timer Seals (Type A)

Mfr: Tyco/AMP
Series: Junior Power Timer Series, MCP 2.8K Sealed, and used in FEP 2.8 Sealed, 2.8K Sealed, Audi/VW 2.8 Tab

Wire Insulation Dia.ColorPart Number
JPTA-SL11.2-2.1 mm (.047-.083 in)Blue963294-1
JPTA-SL22.0-2.7 mm (.079-.106 in)Red963293-1
JPTA-SL32.7-3.0 mm (.106-.118 in)Yellow963292-1
Available stock: Aftermarket OEM

spacer
General
  • Sealing:Single Wire Sealed
Mechanical
  • Seal Material:Silicone Rubber
Environmental
  • Temp Range[2]:-40 - 150 °C
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

QtyPrice (USD)
1-49$0.16
50-99$0.15
100-249$0.14
250-499$0.13
500+$0.11
Quantity:  Ea

Double prong for Junior Power Timer type terminals
TOOL-IRT6
Double prong for Junior Power Timer type terminals
OEM P/N: 680-10714843
View Item
TOOL-IRT6  Double prong for Junior Power Timer type terminals

OEM P/N: 680-10714843

spacer
  • Aptiv 33282332
QtyPrice (USD)
1-9$39.27
10-19$37.31
20+$35.34
Quantity:  Ea

Rennsteig PEW 12 Die Set for AMP/TE JPT pin terminals
TOOL-CDIE27
Rennsteig PEW 12 Die Set for AMP/TE JPT pin terminals
OEM P/N: 624 758 3 03 RT
View Item
TOOL-CDIE27  Rennsteig PEW 12 Die Set for AMP/TE JPT pin terminals
Kit Contents: Crimp die set, contact support

OEM P/N: 624 758 3 03 RT

Compatibility
P/NWire SizeStripLoose
✗JPT-PIN1.2-.5 mm2 (24-20 AWG)1-965982-11-965983-1
✓JPT-PIN2.5-1.0 mm2 (20-18 AWG)1-962915-11-963748-1
✓JPT-PIN31.5-2.5 mm2 (16-14 AWG)1-962916-11-963749-1
✗-.2-.5 mm2 (24-20 AWG)x-963860-xx-963861-x
✓-.5-1.0 mm2 (20-18 AWG)x-962841-xx-963745-x
✓-1.5-2.5 mm2 (16-14 AWG)x-962842-xx-963746-x

Price: $255.69
Quantity:  Ea

Rennsteig PEW 12 Die Set for AMP/TE JPT socket terminals
TOOL-CDIE28
Rennsteig PEW 12 Die Set for AMP/TE JPT socket terminals
OEM P/N: 624 737 3 02 RT
View Item
TOOL-CDIE28  Rennsteig PEW 12 Die Set for AMP/TE JPT socket terminals
Kit Contents: Crimp die set, wire stop

OEM P/N: 624 737 3 02 RT

Compatibility
P/NWire SizeStripLoose
✓JPT-SKT1.35-.5 mm2 (22-20 AWG)929941-3929942-3
✓JPT-SKT2.5-1.0 mm2 (20-18 AWG)929939-3929940-3
✓JPT-SKT31.5-2.5 mm2 (16-14 AWG)929937-3929938-3
✓-.35-.5 mm2 (22-20 AWG)927772929931
✓-.5-1.0 mm2 (20-18 AWG)927770929930
✓-1.5-2.5 mm2 (16-14 AWG)927766929929
✓-.2-.5 mm2 (24-20 AWG)927774927776

This item is backordered.
Price: $282.70
Quantity:  Ea


Facebook link spacer Instagram link spacer LinkedIn link spacer Twitter link spacer Twitter link
Privacy Notice | Terms and Conditions | Site Map
© 2009-2026 Corsa Technic, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
R6A1 R6A1
