58S-8S-2
8-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

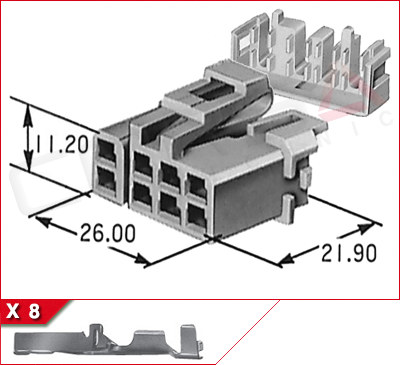

Kit Contents:
Housing, 8 socket contacts, rear lock
Documents
Drawing (7123-1689-90.pdf)Specifications
General
- Sealing:Unsealed
- Number of Ways:8
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:5.8mm
- Row Spacing:4.9mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA6
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 100 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
