090U/250U-16S
16-Way (12+4) Hybrid Kit
Images shown may represent a range of products or be for illustration purposes only.

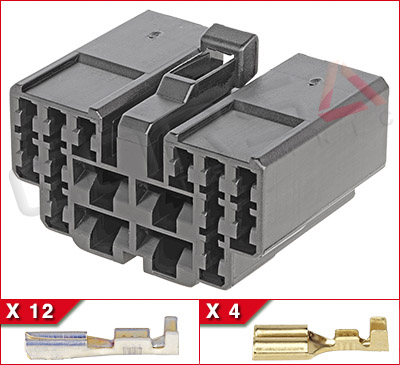

Kit Contents:
Housing, 12x 090 socket contacts, 4x 250 socket contacts
Mfr:Aftermarket Yazaki
Series:090+250 Hybrid Unsealed Series
OEM P/N:7123-1165
Mating Part:7122-1165
Documents
Rearview Pinout (090U_250U-16S.png)Specifications
General
- Sealing:Unsealed
- Number of Ways:16
- Contact Size:Mixed
- Wire Size:0.30 - 3.00 mm2
- Number of Rows:4
- Pitch:Multiple
- Row Spacing:Multiple
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
Cross Reference List
- Toyota 90980-10454
