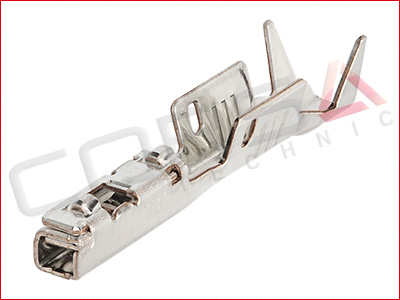

SLD10-SKT3Sealed 1.0 Series Socket Contact
Images shown may represent a range of products or be for illustration purposes only.
| Wire Size | P/N | |
|---|---|---|
| SLD10-SKT1 | .3-.5 mm2 (22-20 AWG) | 2201289-1 |
| SLD10-SKT2 | .5-.85 mm2 (20-18 AWG) | 1554723-1 |
| SLD10-SKT3 | .75-1.25 mm2 (18-16 AWG) | 1939351-1 |
| Available stock: Aftermarket OEM | ||
Documents
Mfr Drawing, Size 1 (C-2201289_A1.pdf)Specifications
General
- Sealing:Matte Sealed
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:7.5A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
