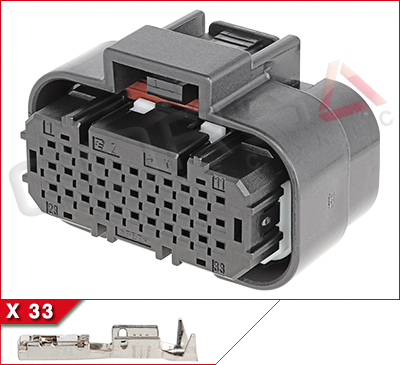

SLD10-33S33-Way Housing
Images shown may represent a range of products or be for illustration purposes only.
Kit Contents:
Housing only, contacts sold separately
Mfr:Tyco/AMP
Series:Sealed 1.0 Series
OEM P/N:1554461-2
Part Name:33POS,1.0 SERIES,REC HSG ASSY,SLD
Mating Part:1554458-2
Documents
3D STEP (1554461-2_A1-3d_stp.zip)
Drawing (C-1554461_A3.pdf)
Rearview Pinout (SLD10-33S.png)Specifications
General
- Sealing:Matte Sealed
- Number of Ways:33
- Contact Size:1.0mm (.040)
- Wire Size:0.30 - 1.25 mm2
- Number of Rows:3
- Pitch:2.8mm
- Row Spacing:3.3mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
- Voltage Rating:12V DC
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
