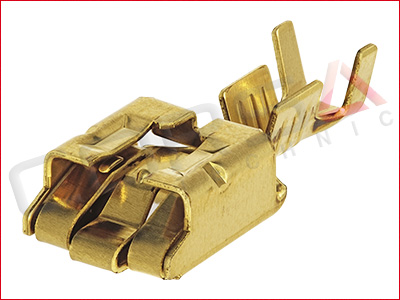

Y250PL-SKT2

250 Positive Lock Socket Contact

Images shown may represent a range of products or be for illustration purposes only.

Mfr:OEM Yazaki
Series:Positive Lock Series

	Wire Size	Plating	Part Number
Y250PL-SKT1	.2-.5 mm² (22-20 AWG)	Plain Brass	7116-2784
-	.2-.5 mm² (22-20 AWG)	Tin Plated	7116-2784-02
Y250PL-SKT2	.85-2.0 mm² (18-14 AWG)	Plain Brass	7116-2783
-	.85-2.0 mm² (18-14 AWG)	Tin Plated	7116-2783-02
Available stock: Aftermarket OEM

Documents

Drawing (7116-2783.pdf)

Specifications

General

Sealing:Unsealed
Contact Size:6.3mm (.250)
Wire Size:0.20 - 2.00 mm²

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
