BS-1P1-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

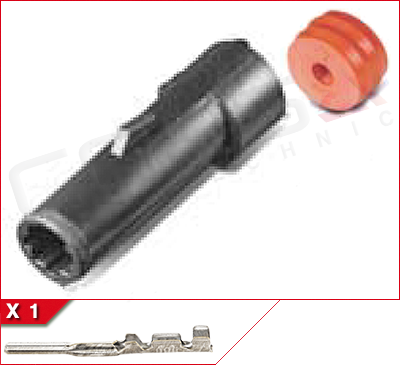

Kit Contents:
Housing, 1 pin contact, rear wire seal
Documents
Drawing (MG610161_1.pdf)Specifications
General
- Sealing:Matte Sealed
- Number of Ways:1
- Contact Size:3.0mm (.118)
- Wire Size:0.20 - 2.00 mm2
- Number of Rows:1
- Numbered Cavities:No
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Cross Reference List
- Toyota 90980-10240
