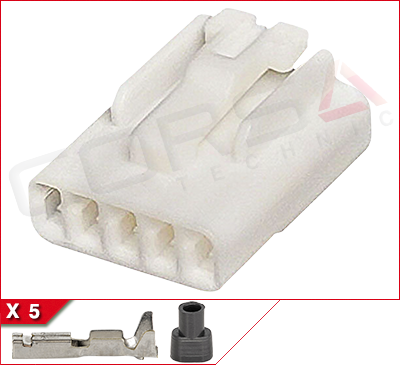

TLC-5S5-Way Kit
Images shown may represent a range of products or be for illustration purposes only.
Kit Contents:
Housing, 2 socket contacts for 24-20 awg wire, 2 seals
Documents
Drawing (7129-6051.pdf)Specifications
General
- Sealing:Single Wire Sealed
- Number of Ways:5
- Contact Size:1.0mm (.040)
- Wire Size:0.20 - 0.50 mm2
- Number of Rows:1
- Pitch:3.0mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:No
- CPA:No
Electrical
- Current Rating[1]:3A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Cross Reference List
- Toyota 90980-10558
