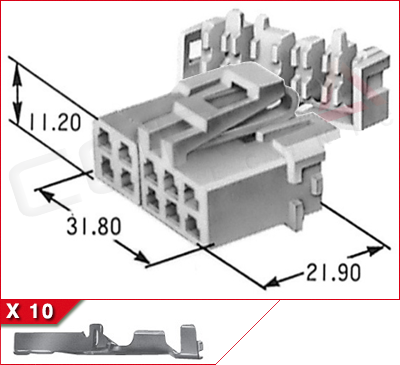

58S-10S-1

10-Way Kit

Images shown may represent a range of products or be for illustration purposes only.

Kit Contents: Housing, 10 socket contacts, rear lock

Mfr:Aftermarket Yazaki
Series:58 S Unsealed
OEM P/N:6100-6101, 7123-1700
Part Name:S10FW
Mating Part:6100-1101, 7122-1700

Documents

Specifications

General

Sealing:Unsealed
Number of Ways:10
Contact Size:2.8mm (.110)
Wire Size:0.30 - 2.00 mm²
Number of Rows:2
Pitch:5.8mm
Row Spacing:4.9mm
Numbered Cavities:No

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
Housing Material:PA66
Mounting Style:Free hanging
TPA:Yes, separate/loose item
CPA:No

Electrical

Current Rating^[1]:10A

Environmental

Temp Range^[2]:-40 - 100 °C

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
