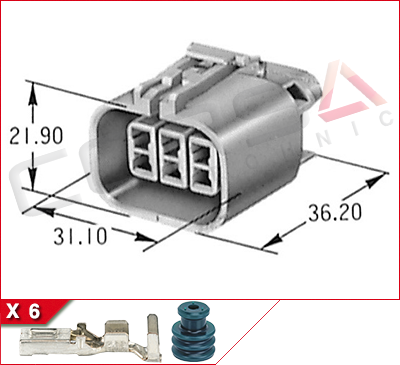

58W-6S

6-Way Kit

Images shown may represent a range of products or be for illustration purposes only.

Kit Contents: Housing, 6 socket contacts, 6 seals, rear holder/lock

Mfr:OEM Yazaki
Series:Sumitomo: 58 W Sealed, Yazaki: 58 W Sealed
OEM P/N:7223-1864-40
Part Name:W06FW
Mating Part:7122-1864-40

Documents

Specifications

General

Sealing:Single Wire Sealed
Number of Ways:6
Contact Size:2.8mm (.110)
Wire Size:0.30 - 2.00 mm²
Number of Rows:2
Pitch:6.8mm
Row Spacing:6.8mm
Numbered Cavities:No

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
Housing Material:PA66
Seal Material:Silicone Rubber
Mounting Style:Free hanging
TPA:Yes, separate/loose item
CPA:No

Electrical

Current Rating^[1]:10A

Environmental

Temp Range^[2]:-40 - 125 °C

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
