090IIU-7S
7-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

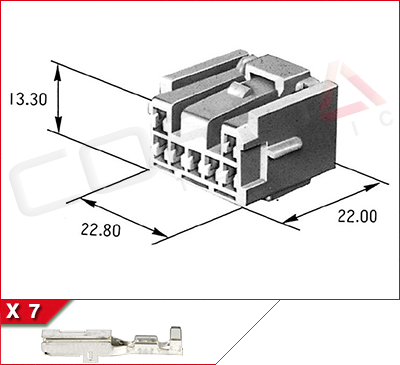

Kit Contents:
Housing, 7 socket contacts
Mfr:OEM Sumitomo, Yazaki
Series:TS 090 Unsealed, 090II Unsealed Series
OEM P/N:6520-0996, 7283-1071 (IN STOCK)
Mating Part:7282-1071
Documents
Drawing (7283-1071.pdf)Specifications
General
- Sealing:Unsealed
- Number of Ways:7
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Cross Reference List
- Toyota 90980-11529, 90980-11740, 90980-12336
