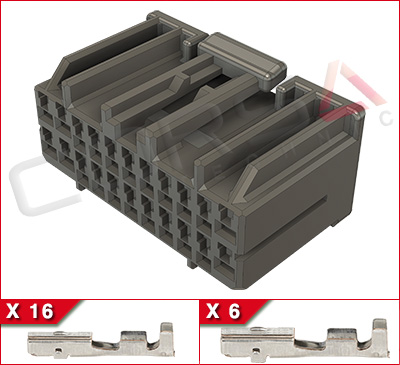

MLC.HYBMK2-22S
22-Way (16+6) Hybrid Kit
Images shown may represent a range of products or be for illustration purposes only.
Kit Contents: Housing, 16x 040 size terminals, 6x 070 size terminals
QtyPrice (USD)
1-5$8.63
6-19$8.20
20-49$7.77
50-99$7.34
100+$6.90
Quantity:  Kit

Mfr:AMP/TE
Series:Multilock .040/.070 MkII Hybrid
OEM P/N:917989-1
Part Name:HYBRID MK-2 PLUG HSG ASSY 22P
Mating Part:176255, 175444, 175521, 638048, 179375, 174917, 638010, 917322, 776189, 176122, 178764, 174518, 177609, 174915, 178780


Documents

Specifications
General
  • Sealing:Unsealed
  • Number of Ways:22
  • Contact Size:Mixed
  • Wire Size:0.30 - 2.00 mm2
  • Number of Rows:2
  • Pitch:Multiple
  • Row Spacing:5.2mm
  • Numbered Cavities:Yes, Numbered
Mechanical
  • Contact Type:Socket, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Free hanging
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:10A
  • Voltage Rating:12V DC
Environmental
  • Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
For mixed signal, or hybrid connectors, the current rating listed is for the larger (power) contact size.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.


Cross Reference List
  • Toyota 90980-11392
