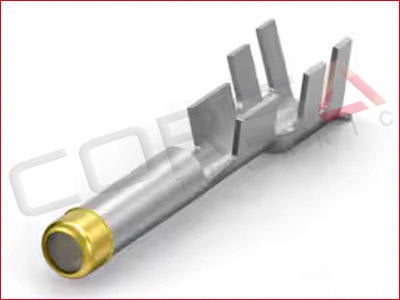

LAC-SKTLocking Arm Connector Socket Contact
Images shown may represent a range of products or be for illustration purposes only.
| Wire Size | Strip | Loose | ||
|---|---|---|---|---|
| - | .3-.85 mm2 (22-18 AWG) wire 1.5-2.8mm Insulation dia | 170295-1 | na | |
| LAC-SKT | .5-2.0 mm2 (20-14 AWG) wire 2.2-3.4mm Insulation dia | 170280-1 | 170293-1 | |
| Available stock: Aftermarket OEM | ||||
Documents
Drawing, size 1 (C-170295_A.pdf)Specifications
General
- Sealing:Unsealed
- Contact Size:2.0mm dia.
- Wire Size:0.30 - 2.00 mm2
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:25A
Environmental
- Temp Range[2]:-30 - 105 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Cross Reference List
- Terminal used in Toyota 82998-12110 repair wire
