090IIU-2P-32-Way Kit
Images shown may represent a range of products or be for illustration purposes only.
Kit Contents:

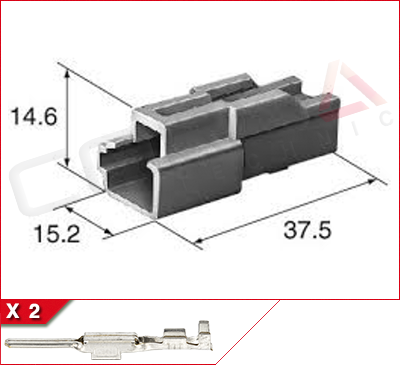

Housing, 2 pin contacts
Mfr:OEM Sumitomo, Yazaki
Series:TS 090 Unsealed, 090II Unsealed Series
OEM P/N:6520-0549 (IN STOCK), 7282-1028
Part Name:11735N9A02M-NA
Mating Part:090IIU-2S-3
Documents
Drawing (7282-1028.pdf)Specifications
General
- Sealing:Unsealed
- Number of Ways:2
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
