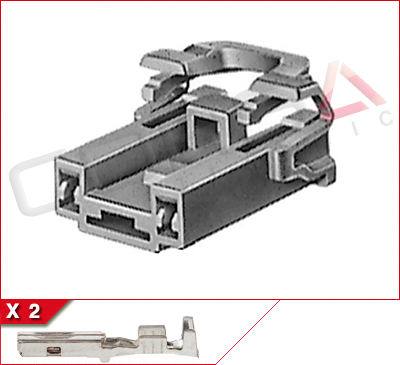

62C-2S-2

2-Way Kit

Images shown may represent a range of products or be for illustration purposes only.

Kit Contents: Housing, 2 socket terminals for 20-18awg wire

Mfr:Aftermarket Furukawa, Sumitomo, Yazaki
Series:62 C-Type, 62 C-Type, 62 C-Type
OEM P/N:Furukawa PH855-02020, Yazaki 7123-7821-30
Part Name:C02FB
Mating Part:PH851-02020, 7122-7821-30

Documents

Specifications

General

Sealing:Unsealed
Number of Ways:2
Contact Size:1.5mm (.060)
Wire Size:0.20 - 0.85 mm²
Number of Rows:1
Pitch:12.0mm
Numbered Cavities:No

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
Housing Material:PBT
Mounting Style:Free hanging
TPA:Yes
CPA:No

Electrical

Current Rating^[1]:6A

Environmental

Temp Range^[2]:-40 - 85 °C

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.

Cross Reference List

KET MG611272
