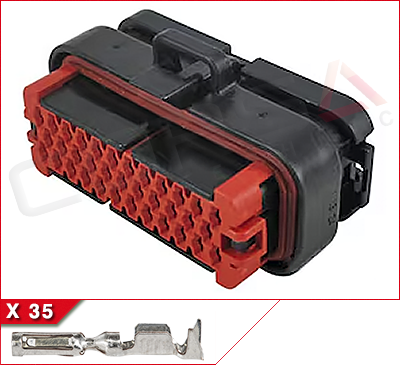

AS13-35S-135-Way Plug
Images shown may represent a range of products or be for illustration purposes only.
Kit Contents:
Housing only, contacts sold separately
Mfr:OEM Tyco/AMP
Series:AMPSEAL Series
OEM P/N:776164-1
Part Name:35POS,AMPSEAL,SOC HSG ASSY,SLD,COD 1
Code:1
Mating Part:1-776163-1, 776231-1, 1-776231-1
Documents
3D STEP (776164-1_F-3d_stp.zip)
Drawing (C-2293782_E4.pdf)
Rearview Pinout (AS13-35S-x.png)Specifications
General
- Sealing:Matte Sealed
- Number of Ways:35
- Contact Size:1.3mm (.050)
- Wire Size:0.50 - 1.50 mm2
- Number of Rows:3
- Pitch:4.0mm
- Row Spacing:4.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, circular
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes
- CPA:Yes, separate item
Electrical
- Current Rating[1]:17A
Environmental
- Temp Range[2]:-40 - 125 °C
- Protection Rating:IP6K7, IP6K9K
- Flammability Rating:UL94 V-0
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Application List
- AiM PDM08/PDM32
Cross Reference List
- AiM 5CND7761641
Related Items:
|
AS13-SKT AMPSEAL Socket Contact |
|
AS13-PG AMPSEAL Sealing Plug |
