090IIU-11S-211-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

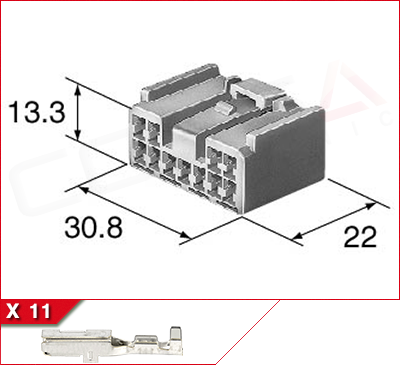

Kit Contents:
Housing, 11 socket contacts
Mfr:OEM Sumitomo, Yazaki
Series:TS 090 Unsealed, 090II Unsealed Series
OEM P/N:6248-5275
Part Name:11539N9A11F
Mating Part:6249-1234
Documents
-
3D STEP (6248-5275.zip) -
Drawing (S-27151_8.pdf) -
Handling Manual, Yazaki (YPES-15-080.pdf)
-
Handling Manual, Yazaki (YPES-15-200.pdf)
-
Handling Manual, Yazaki (YPES-15-2028.pdf)
-
Product Standard, Yazaki (YPES-11-05-393.pdf)
-
Series Catalog - Sumitomo (TS090U-CAT.pdf)
-
Series Catalog - Yazaki (090IIU-CAT.pdf)
Specifications
General
- Sealing:Unsealed
- Number of Ways:11
- Contact Size:2.3mm (.090)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:2
- Pitch:4.0mm
- Row Spacing:5.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Cross Reference List
- Toyota 90980-11539, 90980-11712, 90980-12345, 90980-12476
