YESC.63-4S
4-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

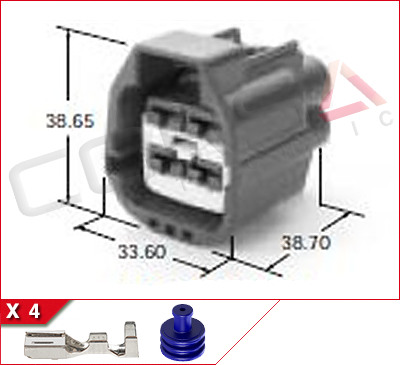

Kit Contents:
Housing, 4 socket contacts for 14awg, 4 seals for 2.2-3.0mm ins. wire.
Mfr:OEM Yazaki
Series:YESC 6.3 System Sealed
OEM P/N:7283-5595-10 w/o CPA (IN STOCK), 7283-5929-10 w/CPA
ss by: 7283-3108-10 w/o CPA, 7283-3601-10 w/CPA
Mating Part:YESC.63-4P
Documents
Drawing (7283-5595-10.pdf)Specifications
General
- Sealing:Single Wire Sealed
- Number of Ways:4
- Contact Size:6.3mm (.250)
- Wire Size:0.50 - 6.00 mm2
- Number of Rows:2
- Pitch:9.8mm
- Row Spacing:9.8mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:HPA
- Seal Material:Silicone Rubber
- Mounting Style:Clip Slot
- TPA:Yes
- CPA:Yes, connector option
Electrical
- Current Rating[1]:37A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Cross Reference List
- Ford 1C1T-14A464-AA
- Ford DU2Z-14S411-ABA, WPT-1343 (Tin plated terminals) pigtail connector
