58Y-2S2-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

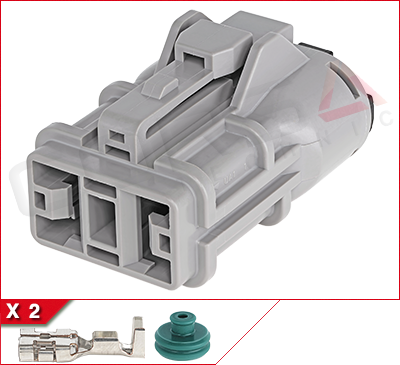

Kit Contents:
Housing, 2 socket contacts, 2 seals for 3.6-4.4mm ins., TPA
Documents
Drawing (7123-4220-30.pdf)Specifications
General
- Sealing:Single Wire Sealed
- Number of Ways:2
- Contact Size:9.5mm (.375)
- Wire Size:0.85 - 8.00 mm2
- Number of Rows:1
- Pitch:11.0mm
- Numbered Cavities:Yes, Numbered
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Seal Material:Silicone Rubber
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:40A
Environmental
- Temp Range[2]:-40 - 120 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
