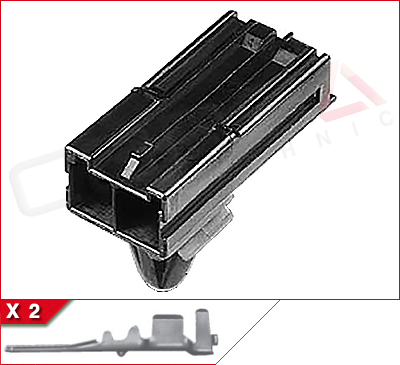

58T-2P-2-CLIP

2-Way Kit

Images shown may represent a range of products or be for illustration purposes only.

Kit Contents: Housing, 2 pin contacts, rear lock

Mfr:OEM Yazaki
Series:58 T Unsealed
OEM P/N:KET: MG621843
Yazaki: 7122-1924-30 (IN STOCK)
Part Name:T02MB-T
Mating Part:7123-1923-30

Features integral clamp for 5.4mm dia., 0.8~1.8mm thickness hole.

Documents

Specifications

General

Sealing:Unsealed
Number of Ways:2
Contact Size:2.8mm (.110)
Wire Size:0.30 - 2.00 mm²
Number of Rows:1
Pitch:6.8mm
Numbered Cavities:Yes, Polarity

Mechanical

Contact Type:Pin, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
Housing Material:PA66
Mounting Style:Clip
TPA:Yes, separate/loose item
CPA:No

Electrical

Current Rating^[1]:10A

Environmental

Temp Range^[2]:-40 - 125 °C

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
