62C-4S-34-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

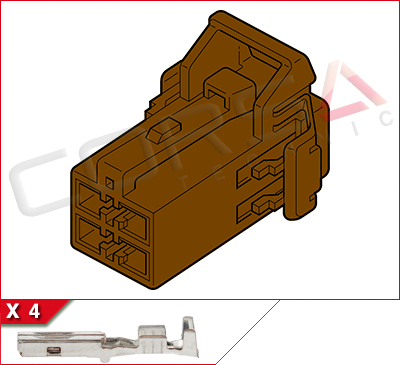

Kit Contents:
Housing, 4 socket terminals for 20-18awg wire
Mfr:OEM Furukawa, Sumitomo, Yazaki
Series:62 C-Type, 62 C-Type, 62 C-Type
OEM P/N:Furukawa PH855-04050, Yazaki 7123-7842-80
Part Name:C04FBR
Mating Part:PH851-04050, 7122-7842-80
Documents
Drawing (7123-7842-80.pdf)Specifications
General
- Sealing:Unsealed
- Number of Ways:4
- Contact Size:1.5mm (.060)
- Wire Size:0.20 - 0.85 mm2
- Number of Rows:2
- Pitch:5.0mm
- Row Spacing:3.3mm
- Numbered Cavities:No
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PBT
- Mounting Style:Free hanging
- TPA:Yes
- CPA:No
Electrical
- Current Rating[1]:6A
Environmental
- Temp Range[2]:-40 - 85 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
Cross Reference List
- KET MG611274-7
Related Items:
|
62C-SKT2 62 C-Type Socket Terminal |
