N250-6S-C

6-Way Kit

Images shown may represent a range of products or be for illustration purposes only.

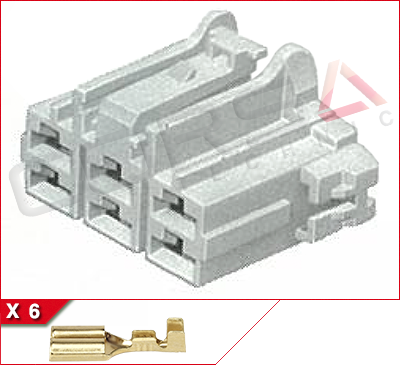

Kit Contents: Housing, 6 socket contacts

Mfr:OEM Yazaki
Series:New 250 Series
OEM P/N:7223-5566 w/TPA and CPA, 7223-5565 w/mounting clip
7223-5663 w/TPA only, 7223-5569 w/mounting clip
7123-5566 w/o TPA and CPA (IN STOCK), 7123-5565 w/mounting clip
Mating Part:N250-6P-x

Documents

Series Catalog (N250-CAT.pdf)

Specifications

General

Sealing:Unsealed
Number of Ways:6
Contact Size:6.3mm (.250)
Wire Size:0.30 - 3.00 mm²
Number of Rows:2
Pitch:11.0mm
Row Spacing:5.5mm
Numbered Cavities:No

Mechanical

Contact Type:Socket, flat
Termination:Open barrel crimp
Lance Type:Housing Lance
Housing Material:PBT
Mounting Style:Free hanging
TPA:No
CPA:No

Electrical

Current Rating^[1]:20A

1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
