new item icon N250-6P-AB
6-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

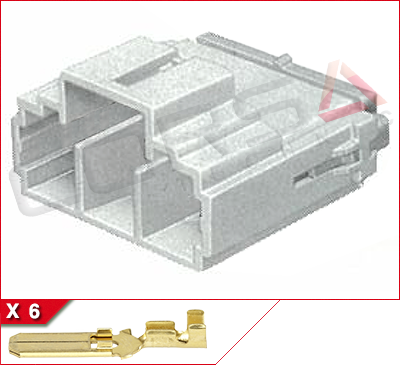

Kit Contents: Housing, 6 pin contacts for 18-14 awg wire
QtyPrice (USD)
1-5$8.11
6-19$7.70
20-49$7.30
50-99$6.89
100+$6.49
Quantity:  Kit

Mfr:OEM Yazaki
Series:New 250 Series
OEM P/N:7222-5565 w/TPA (IN STOCK)
7122-5565 w/o TPA

Mating Part:N250-6S-x


Documents

Specifications
General
  • Sealing:Unsealed
  • Number of Ways:6
  • Contact Size:6.3mm (.250)
  • Wire Size:0.30 - 3.00 mm2
  • Number of Rows:2
  • Pitch:11.0mm
  • Row Spacing:5.5mm
  • Numbered Cavities:No
Mechanical
  • Contact Type:Pin, flat
  • Termination:Open barrel crimp
  • Lance Type:Housing Lance
  • Housing Material:PBT
  • Mounting Style:Clip Slot
  • TPA:Yes
  • CPA:No
Electrical
  • Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
