58T-2S-22-Way Kit
Images shown may represent a range of products or be for illustration purposes only.

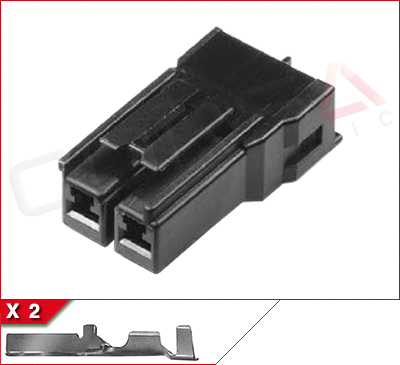

Kit Contents:
Housing, 2 socket contacts for 22-20 awg, rear lock
Mfr:OEM Yazaki
Series:58 T Unsealed
OEM P/N:KET: MG611251
Yazaki: 7123-1923-30 (IN STOCK)
Part Name:T02FB
Mating Part:58T-2P-2, 58T-2P-2-CLIP
Documents
3D STEP (MG611251-5-stp.zip)
Drawing, KET (MG611251.pdf)Specifications
General
- Sealing:Unsealed
- Number of Ways:2
- Contact Size:2.8mm (.110)
- Wire Size:0.30 - 2.00 mm2
- Number of Rows:1
- Pitch:6.8mm
- Numbered Cavities:Yes, Polarity
Mechanical
- Contact Type:Socket, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
- Housing Material:PA66
- Mounting Style:Free hanging
- TPA:Yes, separate/loose item
- CPA:No
Electrical
- Current Rating[1]:10A
Environmental
- Temp Range[2]:-40 - 125 °C
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
2. Temperature range is for reference only, and may/may not include temperature rise.
For detailed characteristics, see applicable product documents.
