91MLC-PIN3

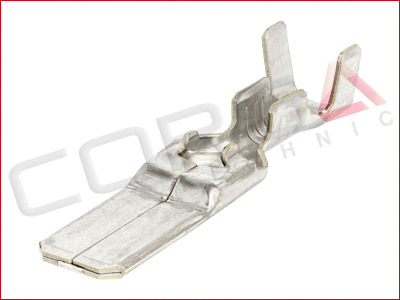

91 M-LC Unsealed Pin Contact
Images shown may represent a range of products or be for illustration purposes only.
| Wire Size | Yazaki | |
|---|---|---|
| 91MLC-PIN1 | .3-.5 mm2 (22-20 AWG) | 7114-2882-02 |
| 91MLC-PIN2 | .85-2.0 mm2 (18-14 AWG) | 7114-2883-02 |
| 91MLC-PIN3 | 3.0 mm2 (12 AWG) | 7114-2872-02 |
| Available stock: Aftermarket OEM | ||
Documents
Drawing, size 1-2 (7114-2882.pdf)- Drawing, size 3 (7114-2870.pdf)
-
TE Crimp Data, 22-20awg (C-2150917_B.pdf)
-
TE Crimp Data, 18-14awg (C-2150891_E.pdf)
-
TE Crimp Data, 12awg (C-2150913_C.pdf)
-
Handling Manual (YPES-15-429.pdf)
-
Product Standard (YPES-11-05-129.pdf)
-
Series Catalog - Yazaki (91MLC-CAT.pdf)
Specifications
General
- Sealing:Unsealed
- Contact Size:6.3mm (.250)
- Wire Size:0.30 - 3.00 mm2
Mechanical
- Contact Type:Pin, flat
- Termination:Open barrel crimp
- Lance Type:Housing Lance
Electrical
- Current Rating[1]:20A
1. Current rating is for reference only, as it is typically based on a single circuit in free air, affected by conditions such as circuit count, wire size, ambient temperature, etc.
